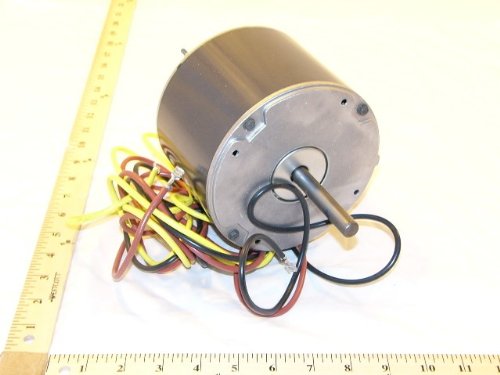

Heil 34329502 Condenser Fan Motor 1/6 HP 208-230V Single Phase

The Heil 34329502 is an OEM condenser fan motor designed for Heil and ICP (International Comfort Products) HVAC equipment. This 1/6 horsepower motor operates on 208-230VAC single phase power at 825 RPM with a current draw of 1.1 amps. Built for reliable performance in residential and commercial air conditioning applications, this permanent split capacitor motor features a counterclockwise rotation when viewed from the shaft end.

Key Specifications:

• Power: 1/6 HP, 208-230VAC, Single Phase
• Speed: 825 RPM, 1 Speed
• Current Draw: 1.1 Amps
• Frame Size: 48 NEMA (48Y)
• Motor Diameter: 5-5/8 inches
• Shaft Extension: 2.8 inches
• Lead Wire Length: 6 feet
• Bearing Type: Sleeve Bearing
• Mounting: Band/Thru Bolt Mount
• Rotation: CCW (Counterclockwise)
• Motor Type: Permanent Split Capacitor (PSC)

Cross-Reference Information:

• Emerson Motor Number: K55HXMMC-4297
• Compatible with Heil, Tempstar, Comfortmaker, and other ICP brand equipment

This genuine OEM replacement motor is engineered to exact specifications for direct fitment and optimal performance. The sleeve bearing design provides quiet operation, while the thru-bolt mounting configuration ensures secure installation. The 6-foot lead wires provide ample length for most installations, and the permanent split capacitor design ensures efficient operation and reliable starting.
