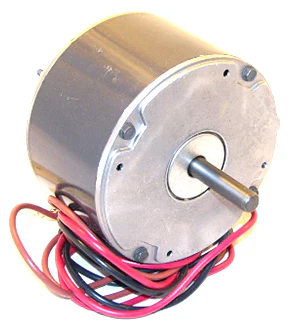

Heil 1085927 Condenser Fan Motor 1/5 HP 208-230V Single Phase

The Heil 1085927 is an OEM condenser fan motor designed for use in residential and light commercial HVAC systems. This replacement motor is engineered to provide reliable cooling system operation for Heil, ICP, Tempstar, Comfort Maker, and other compatible air conditioning units.

Key Specifications:

• Power: 1/5 horsepower (HP)
• Voltage: 208-230V single phase
• Speed: 1075 RPM, 1-speed operation
• Current draw: 1.3 amps
• Shaft: 1/2 inch diameter x 2 inches long
• NEMA frame size: 48
• Bearing type: Sleeve bearing
• Mounting: Band/through-bolt mount
• Rotation: Clockwise (CW)
• Motor type: Permanent split capacitor (PSC)

This genuine OEM motor is designed to convert electrical energy into mechanical energy, driving the condenser fan blade to dissipate heat from your air conditioning system's refrigerant. The motor features durable construction with a 48 NEMA frame and reliable sleeve bearing design for quiet, efficient operation.
