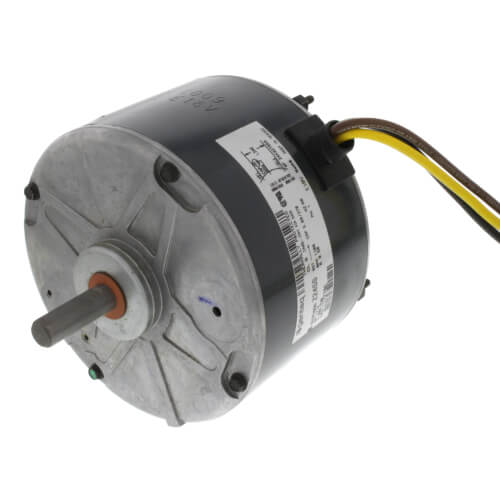

Heil 1191326 Condenser Fan Motor 1/12 HP 1100 RPM 208-230V Single Phase

The Heil 1191326 is a single-phase condenser fan motor designed for residential and commercial air conditioning systems. This motor delivers reliable performance with 1/12 horsepower output at 1100 RPM, providing efficient cooling for HVAC applications.

Key Specifications:

• Horsepower: 1/12 HP
• Voltage: 208-230V single phase
• Speed: 1100 RPM
• Amperage: 0.50 amps
• Rotation: Clockwise (CW)
• Capacitor Required: 5 MFD @ 370V
• Shaft: 1/2 inch diameter x 2 inch length
• Class B insulation with thermal protection
• Continuous air over duty rating

Compatibility:

This motor serves as a direct replacement for OEM part numbers 1172706 and 1186446. It is compatible with ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite, and Day & Night HVAC systems. The motor is engineered to meet or exceed original equipment manufacturer specifications for optimal performance and longevity.

Installation Note:

For best results and to prevent premature motor failure, inspect the fan blade for damage or imbalance before installation, and consider replacing the capacitor if it shows signs of wear or is out of tolerance.
