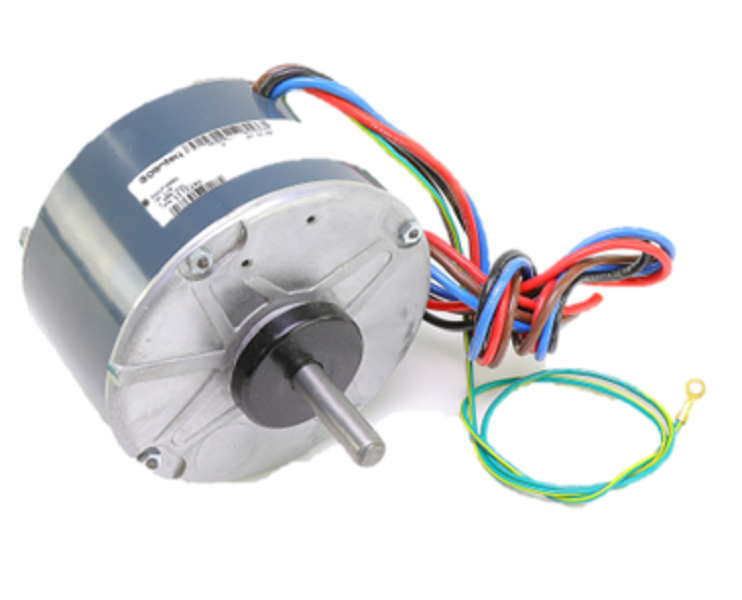

Heil 1172250 1/5 HP Condenser Fan Motor 208-230V Single Phase

The Heil 1172250 is an OEM condenser fan motor designed for ICP, Heil, Tempstar, and Kenmore HVAC systems. This reliable replacement motor delivers consistent performance for residential and light commercial air conditioning applications.

Key Specifications:

• Motor Power: 1/5 HP (Horsepower)
• Voltage: 208-230V AC
• Phase: Single Phase
• Speed: 1075 RPM
• Current Draw: 1.3 Amps
• Frame Size: 48Y NEMA
• Rotation: Clockwise (CW) when shaft faces up
• Bearing Type: Sleeve Bearing
• Motor Type: Permanent Split Capacitor (PSC)
• Mount Type: Thru Bolt

Physical Dimensions:

• Motor Diameter: 5-5/8 inches
• Shaft Length: 2 inches (extends from motor)

Cross Reference Numbers:

• HC37GZ003A
• GE 5KCP39BGZ256S

This motor features a power plug-in connection for straightforward installation and is built to OEM specifications for reliable, long-lasting operation. The sleeve bearing design provides quiet operation while the permanent split capacitor configuration ensures efficient starting and running performance.
