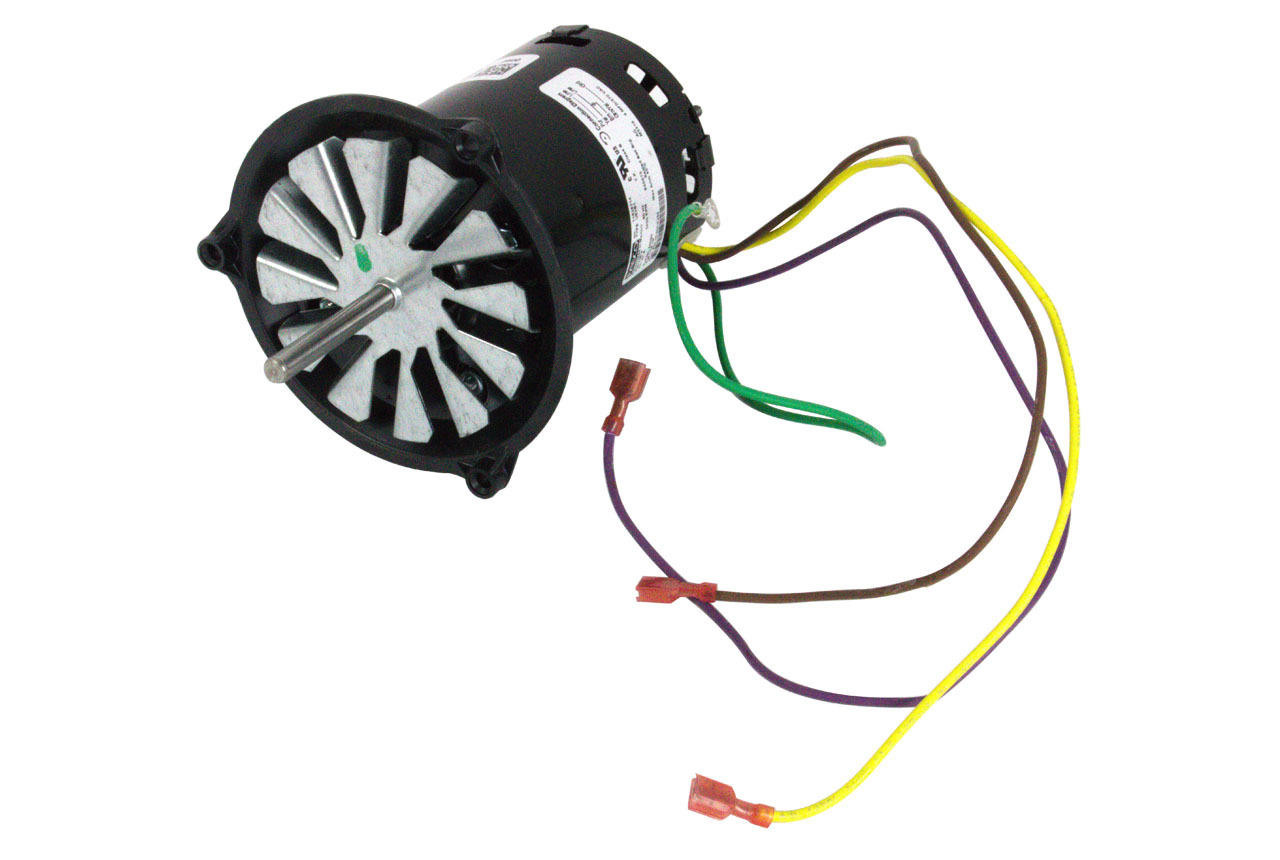

Carrier HC30CK234 Draft Inducer Motor - 1/16HP 208-230V 3450RPM

The Carrier HC30CK234 is an OEM draft inducer motor designed for Carrier, Bryant, and Payne residential gas furnaces. This factory-authorized replacement motor provides reliable combustion air circulation to ensure proper furnace operation and efficient heating performance.

Key Specifications:

• Horsepower: 1/16 HP
• Voltage: 208-230 VAC, single phase, 60 Hz
• Speed: 3450 RPM
• Amperage: 0.43-0.50 amps
• Motor Type: Permanent Split Capacitor (PSC)
• Rotation: Counter-clockwise (CCW) from lead end
• Capacitor Required: 4 MFD / 370V (included)
• Shaft Size: 5/16" x 2.9"
• Motor Diameter: 3-1/3 inches
• Bearings: Ball bearings for extended service life
• Enclosure: Open drip-proof
• Thermal Protection: Built-in overload protection
• Class: B insulation

Features and Benefits:

• OEM quality ensures exact drop-in replacement for original equipment
• Includes Hall sensor for modern furnace control boards
• Thermally protected motor prevents overheating damage
• CSA listed and meets all applicable safety standards
• Ball bearing construction for quiet operation and long service life
• Rigid mount design for secure installation

Replaces Part Numbers: HC30CK230, 48GS400106, 48GS400649, HC30GB232, 1175978, JF1H131N, 71626714

This genuine Carrier replacement motor is manufactured to meet exact design specifications for optimum system performance and reliability in residential forced-air heating systems.
