4WD Actuator

What Is a 4WD Actuator and Why Does It Matter?

The 4WD actuator is a small but critical component housed in the front differential of part-time four-wheel-drive trucks and SUVs. When you press that 4WD button or move the selector on the dash, the actuator is what physically completes the job at the axle level. 4WD actuators contain an internal shift fork and splined sleeve mechanism that, once signaled, locks the front differential's axle shaft to the carrier — connecting the front wheels to the drivetrain and putting all four wheels to work together.

It's important to understand that the 4WD actuator and the transfer case work as a team. The transfer case routes power to the front driveshaft, but it's the front differential actuator that actually couples the passenger-side axle and delivers torque to the front wheels. No functioning actuator means no true four-wheel drive, regardless of what your transfer case is doing.

Types of 4WD Actuators

Actuators come in a few designs depending on the vehicle platform:

• Electric (motor-driven) actuators use a small DC motor and worm gear assembly to push or retract a shift fork. These are found on most modern trucks and SUVs with push-button or rotary 4WD selectors.

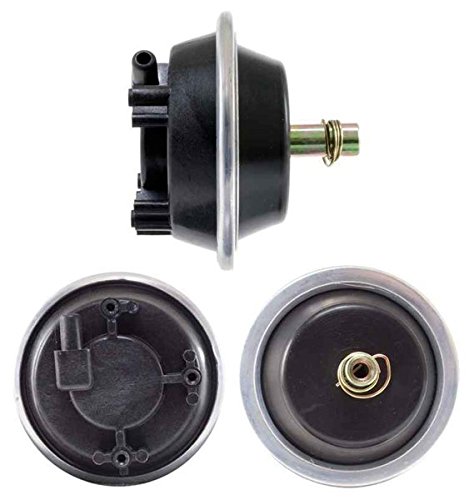

• Vacuum-operated actuators use engine vacuum routed through solenoid-controlled lines to engage and disengage the differential. Common on older platforms, these can fail due to cracked hoses or a leaking diaphragm.
• Thermal actuators use heat-activated expansion to shift the locking mechanism, found on some older GM light trucks.

Signs of a Failing 4WD Actuator

A bad actuator typically announces itself in several ways: the 4WD indicator light blinks repeatedly without going solid, four-wheel drive engages slowly or not at all, or you hear a motor noise under the truck without any shift completing. Because the actuator uses a feedback signal to confirm its position to the transfer case control module, a failure can also trigger a service 4WD warning. Left unaddressed, a stuck or failed actuator can contribute to unnecessary drivetrain wear.

Choosing the Right Replacement Actuator

Fit matters enormously with 4WD actuators — these parts are vehicle-specific by year, make, model, and drivetrain configuration. When shopping for a replacement, verify the part number against your OEM spec and consider whether the replacement unit has addressed any known design weaknesses in the original part. Quality actuators are 100% tested before leaving the factory to confirm proper engagement and feedback signal operation.

Top Brands for 4WD Actuators

Standard Motor Products is one of the most recognized names in drivetrain electronics and electrical components. Their 4WD actuators are engineered to OE specifications, making them a trusted choice for technicians who need reliable engagement and accurate position feedback on a wide range of domestic trucks and SUVs.

Mopar Performance is the factory-direct source for Chrysler, Dodge, Jeep, and Ram vehicles. Choosing a Mopar 4WD actuator means getting a part designed specifically for your FCA platform — ideal for owners who prioritize OEM-level fit and function without compromise.

Airtex Automotive Division brings a broad catalog of drivetrain and fuel system components to the aftermarket. Their 4WD actuator offerings provide an accessible option for a variety of vehicle applications, backed by the brand's long history in OE and aftermarket supply.

Skyward Automotive Products rounds out the category with a focused selection of 4WD actuators suited to popular truck and SUV fitments, giving shoppers additional options when sourcing this often hard-to-find part.
