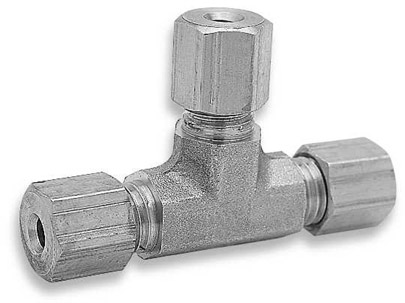

Edelmann 164200 Brass Compression Union Tee Fitting 1/8 Inch

The Edelmann 164200 is a brass compression union tee fitting designed for low- and medium-pressure automotive applications. This fitting accommodates 1/8-inch tubing and provides a reliable three-way connection point for fuel lines, vacuum lines, and other non-brake fluid systems.

Key Features:

• Brass construction with natural finish for corrosion resistance
• 1/8-inch tube size compatibility
• Ferrules included for complete installation
• No flaring or soldering required for installation
• Creates secure, leak-free connections through wedging action
• Rated for applications up to 250 PSI maximum pressure

Installation: To install, simply place the nut and sleeve over the tubing, insert the tube into the fitting body as far as possible, and tighten the nut. The wedging action of the sleeve between the body and nut creates a secure, leak-free seal without the need for special tools or tube preparation.

Important: This compression fitting is designed for low- and medium-pressure applications only and must never be used in hydraulic brake systems. Maximum operating pressure is 250 PSI.
