Mitutoyo 516-423-26 Steel Square Gage Block Set 36-Piece Grade AS-1 Inch

Manufacturer

Part Number

516-423-26
Sale Price

$1,231.14

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Mitutoyo 516-423-26 is a 36-piece steel square gage block set manufactured to ASME Grade AS-1 accuracy and conforming to ASME B89.1.9-2002 standards for flatness, length, parallelism, and surface finish. Designed for workshop and inspection environments, this set provides a reliable dimensional reference standard across a wide measurement range of 0.05" to 4.00".

Key Features:

  • 36 precision steel square gage blocks in Grade AS-1 accuracy
  • Constructed from high-carbon, high-chrome steel — heat treated repeatedly for maximum hardness and wear resistance
  • Square profile retains stable orientation both longitudinally and laterally for versatile vertical and horizontal use
  • Laser-etched black characters on each block for clear, permanent identification and traceability
  • Individual identification number laser-etched on each block for full traceability
  • Produced using Mitutoyo's precision lapping technique for exceptional flatness and ideal surface roughness
  • Includes a NIST-traceable Mitutoyo Inspection Certificate confirming each block's deviation from nominal length

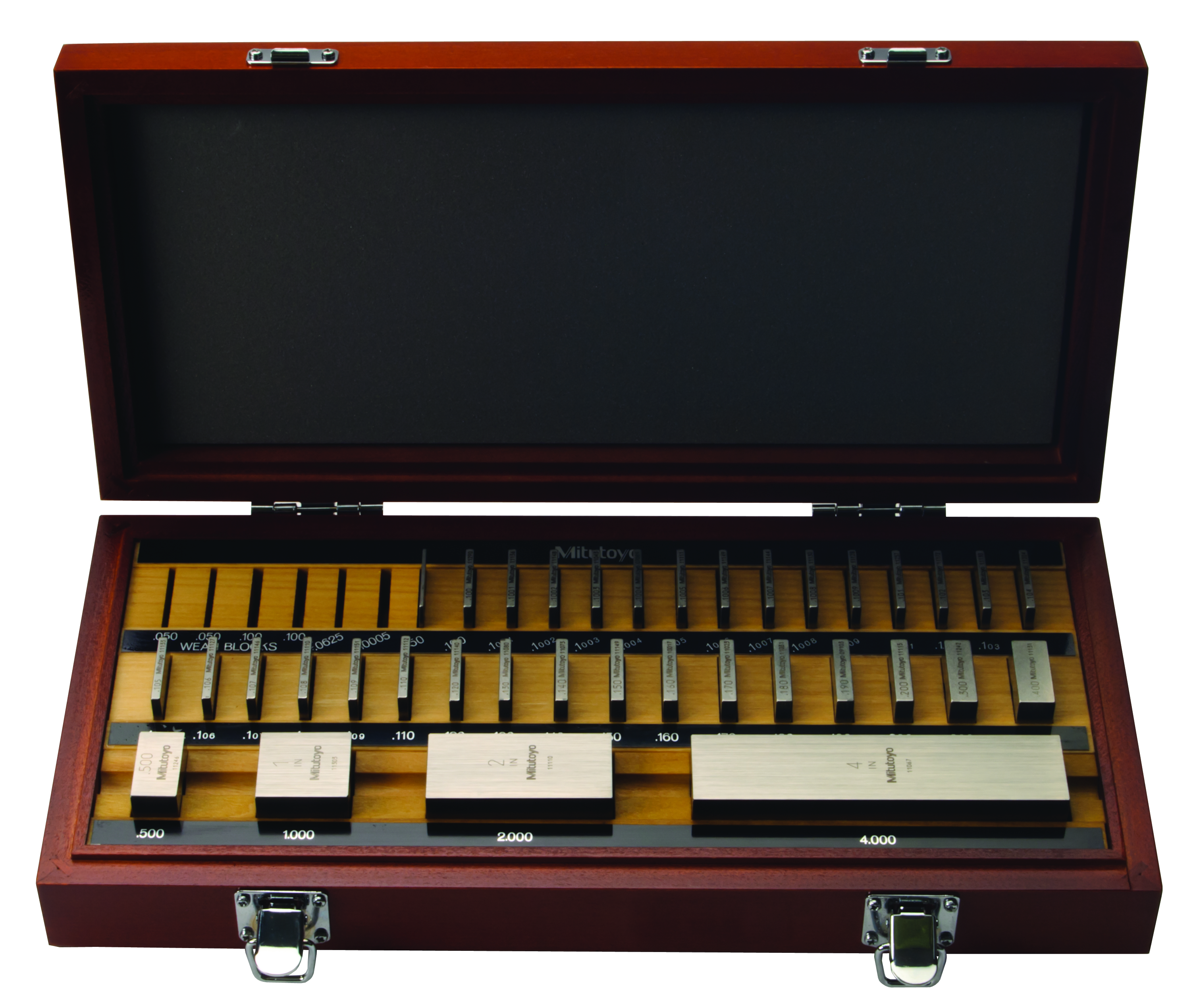

  • Supplied in a fitted wooden storage case

Block Set Composition (36 Pieces):

  • 1 block: 0.05"
  • 9 blocks: 0.1001" – 0.1009" (steps of 0.0001")
  • 9 blocks: 0.101" – 0.109" (steps of 0.001")
  • 9 blocks: 0.11" – 0.19" (steps of 0.01")
  • 5 blocks: 0.1" – 0.5" (steps of 0.1")
  • 3 blocks: 1", 2", 4" (steps of 1.00")

Common Applications:

  • Calibration of fixtures and precision instruments
  • Cutting tool positioning
  • Angle measurement with a sine bar
  • Taper measurement with a roller
  • Inspection of depth micrometers and mechanical parts
  • Height reference standards and dedicated inspection jig setups

This set is part of Mitutoyo's trusted Series 516 Inch Square Gage Block line, offering the precision and reliability expected from one of the world's foremost metrology instrument manufacturers.
