Mitutoyo 186-902 Radius Gage Set Pairs Concave/Convex - 0.5-13mm 26

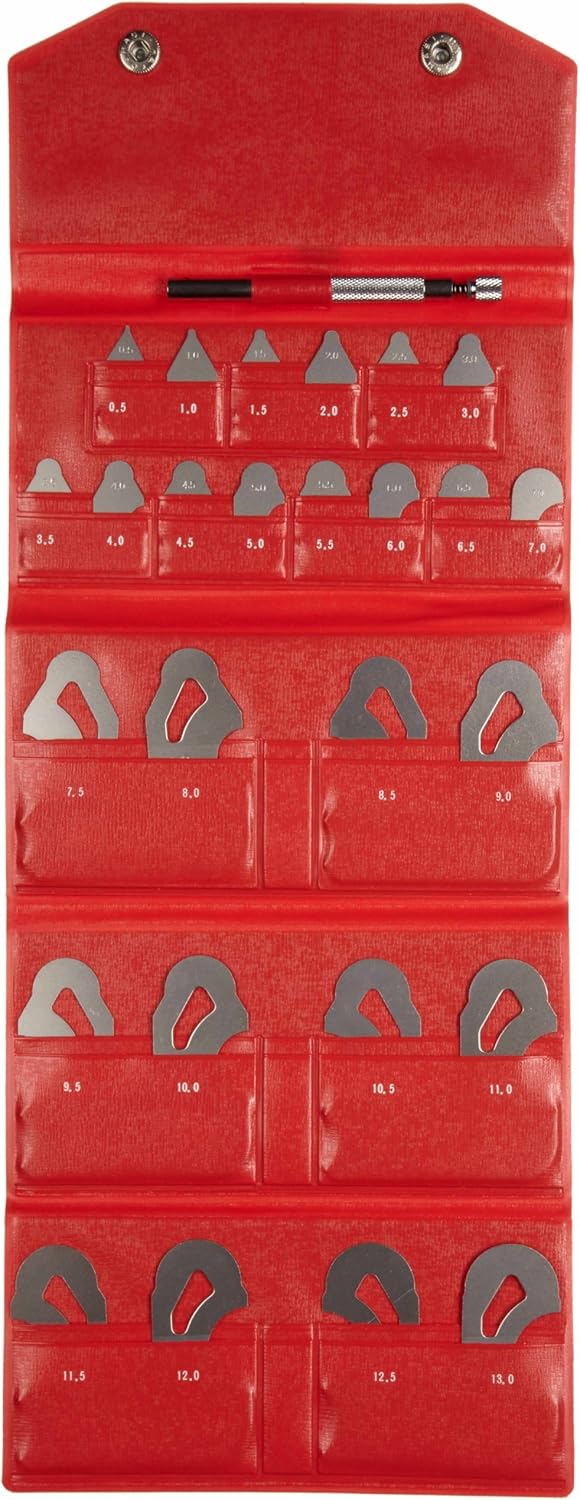

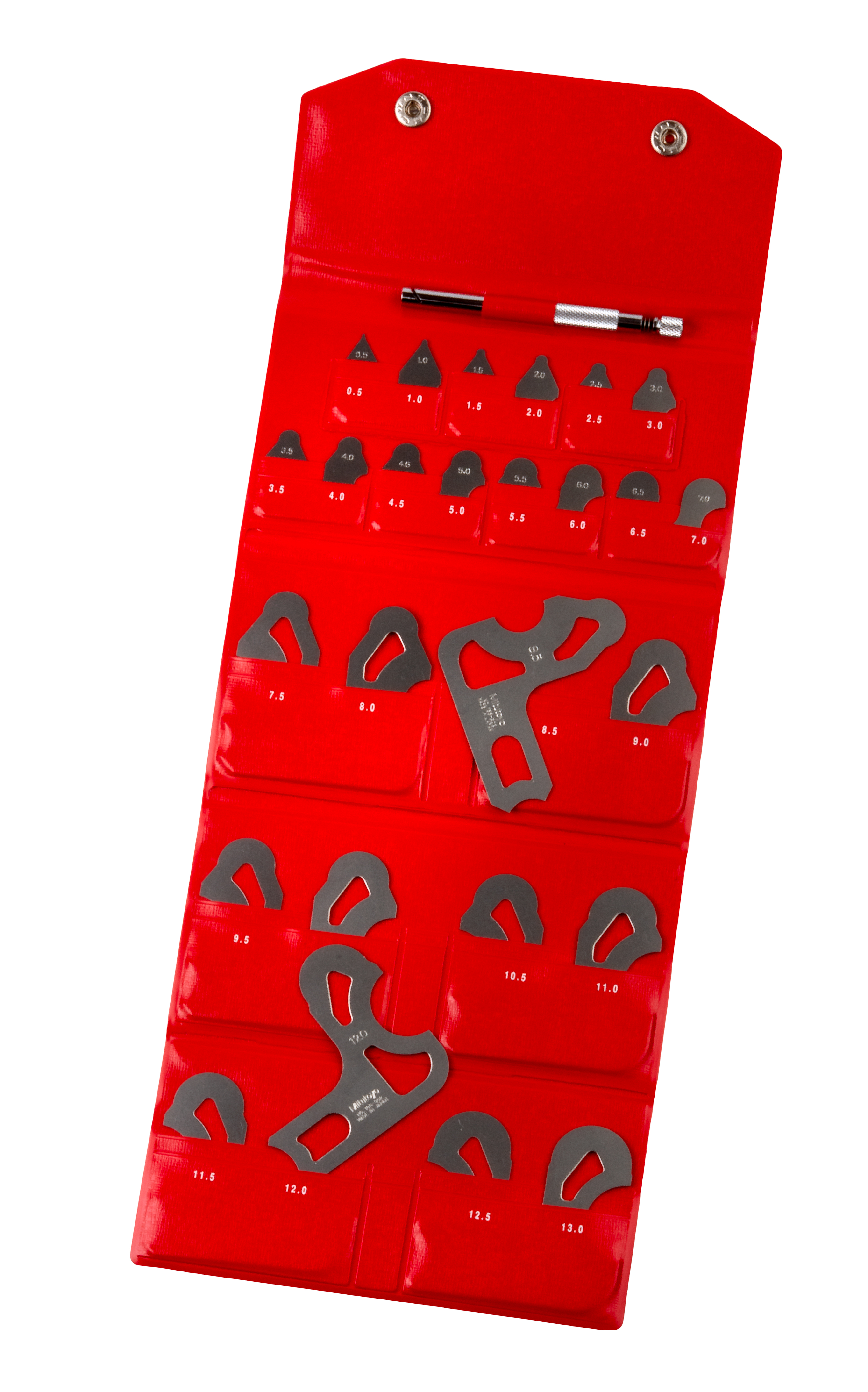

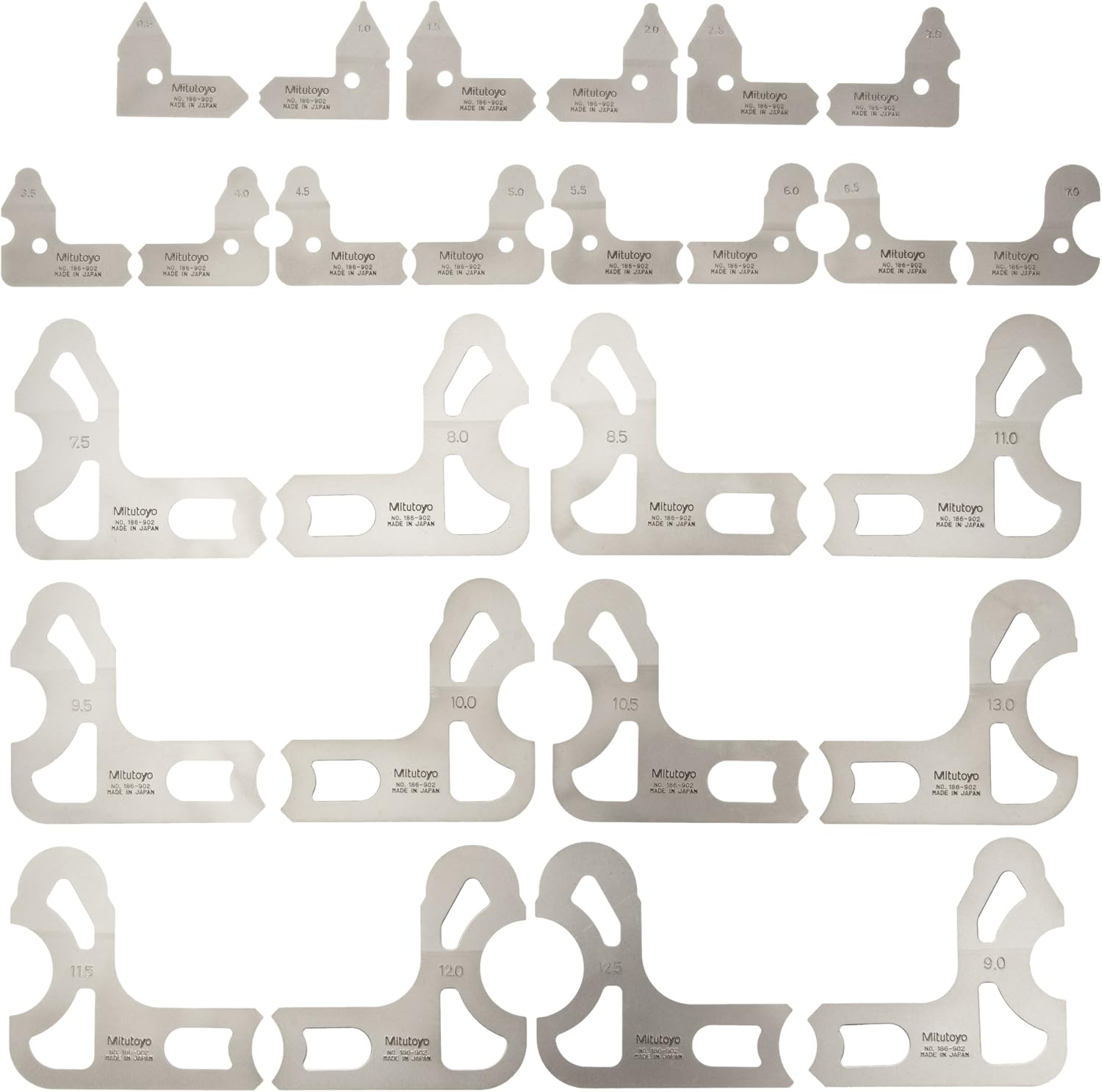

The Mitutoyo 186-902 is a precision radius gage set designed for accurate verification of radius and fillet dimensions in machining, inspection, layout, and pattern-making applications. This comprehensive set includes 26 pairs of leaves (52 individual gages) ranging from 0.5mm to 13mm in 0.5mm increments, providing both concave and convex profiles for each dimension.

Key Features:

• 26 pairs of leaves covering 0.5mm to 13mm range in 0.5mm steps
• Both concave and convex radius profiles for versatile measurement
• Precision-finished measuring surfaces with smooth, accurate edges
• Individual gages for each dimension enable faster, easier, and more accurate radius verification
• Locking clamp mechanism keeps selected leaves secure during use
• Ideal for machining, inspection, layout, and pattern-making work

Each gage is individually crafted to provide reliable radius measurement, making this set an essential tool for quality control professionals, machinists, and inspectors who require precise dimensional verification of curved surfaces and fillets.
