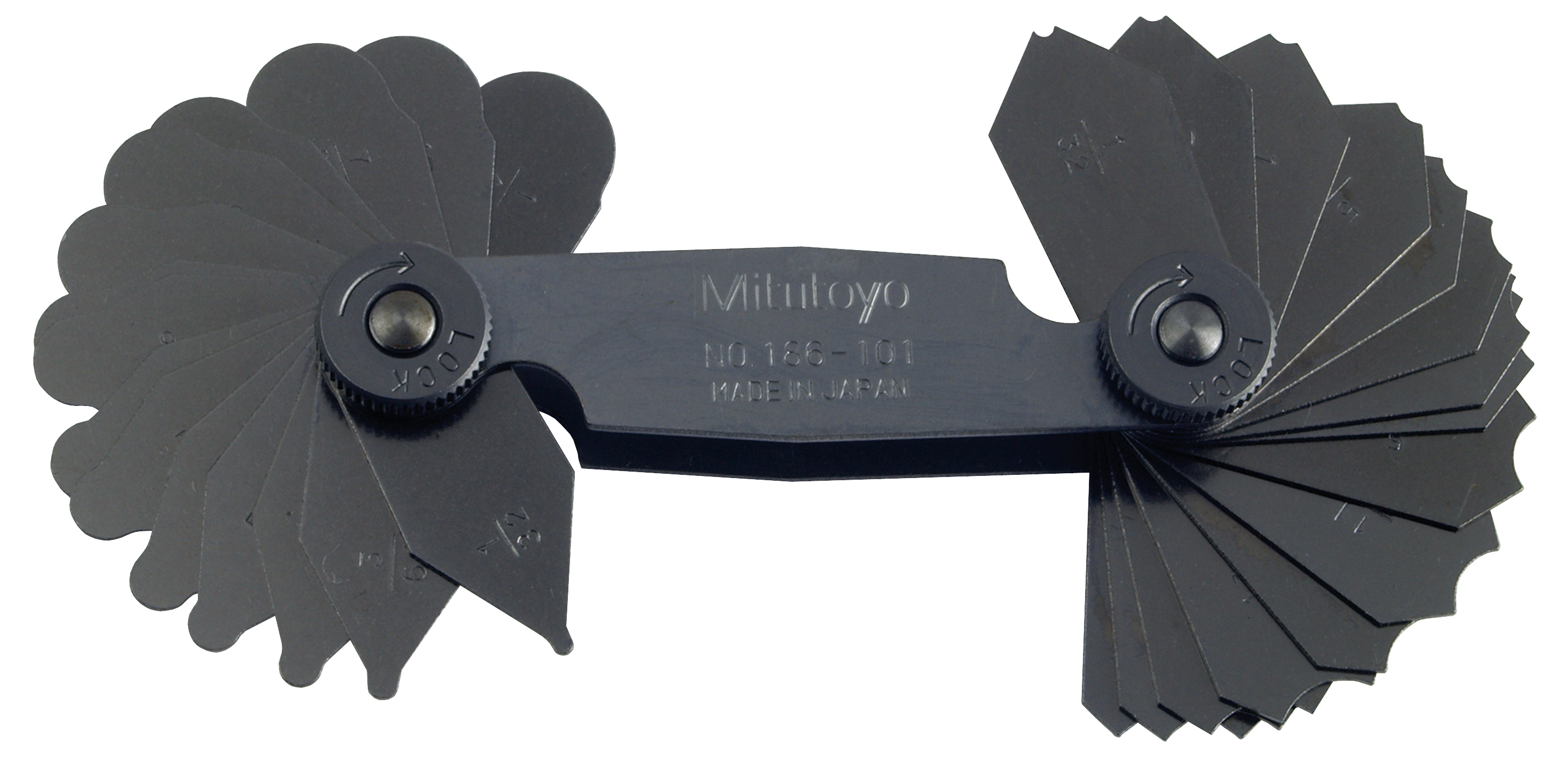

Mitutoyo 186-101 Radius Gage Set 1/32-1/4 Inch 15 Pairs Concave Convex

The Mitutoyo 186-101 is a precision radius gage set designed for accurately measuring both concave and convex radii in manufacturing, inspection, and quality control applications. This comprehensive set includes 15 pairs of leaves ranging from 1/32 inch to 1/4 inch in 64ths increments, providing precise measurement capability across a wide range of radius sizes.

Key Features:

• 15 pairs of matched concave and convex radius gages for versatile measurement
• Measurement range from 1/32 inch to 1/4 inch in 64ths increments
• Radius size clearly stamped on each gage for quick identification
• Locking clamp keeps leaves securely organized and prevents loss
• Hardened and tempered steel construction for durability and long service life
• Ideal for checking fillet welds, radii on machined parts, and quality inspection

Each gage leaf is precision-manufactured to exact radius specifications, making this set an essential tool for machinists, inspectors, and quality control professionals who need to verify radius dimensions quickly and accurately. The matched pairs allow for measurement of both inside and outside radii with a single set.
