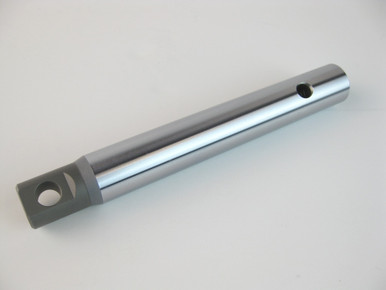

Helix 222438 Piston Rod for Graco Airless Paint Sprayers

Manufacturer

Part Number

222438
Sale Price

$289.54

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Helix 222438 is a replacement piston rod (pump displacement rod) designed for use in older Graco airless paint sprayer models. This critical component connects the internal pump parts to the motor and gear box, enabling the pump's essential paint transfer function.

How It Works:

The piston rod operates through a reciprocating motion. On the upstroke, it draws paint into the fluid section chamber, and on the downstroke, it pushes the paint through the hose to the spray gun. This continuous action creates the high-pressure flow needed for professional airless spraying applications.

Compatible Models:

  • Graco Ultra 333
  • Graco Ultra 433
  • Graco Ultra 750
  • Graco Ultra 1000
  • Graco GM 3500
  • Graco EM 590
  • Graco LineLazer 3500

Important Note:

This is a genuine OEM replacement part (Graco part number 222438, also referenced as 222-438). Always verify the correct part number in your owner's manual before ordering to ensure proper fitment. UPC: 633955503779.

When your sprayer shows signs of reduced pressure, erratic spray patterns, or pump failure, a worn piston rod is often the culprit. Replacing this component can restore your sprayer to optimal performance and extend the life of your equipment.
