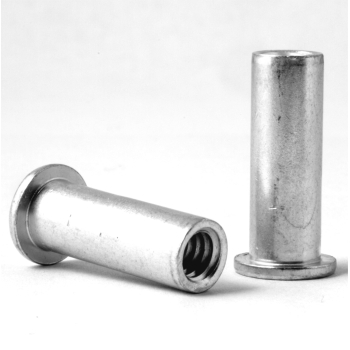

Marson M47121 MRN Series Flathead Steel Rivet Nut - 8-32

The Marson M47121 is a thick-wall flathead flange rivet nut from the MRN Series, designed to provide maximum bearing surface for demanding applications. This steel rivet nut features 8-32 UNC-2B threading and is ideal for creating strong, reusable threaded connections in thin materials that cannot accommodate traditional tapped holes.

Key Features:

• Thread Size: 8-32 UNC-2B
• Grip Range: 0.075 to 0.120 inches
• Flathead design for flush mounting applications
• Round body construction with open end
• Steel construction with zinc clear trivalent chromate finish
• RoHS 3 compliant
• Thick wall design for heavy push-out loads and high torque resistance

Applications:

Perfect for use in metal, fiberglass, and rigid plastics where materials are too thin for conventional tapped threads. The MRN Series thick-wall design delivers superior performance in applications requiring high torque capacity and resistance to push-out forces.

Installation Note:

Due to the heavy wall thickness, installation with a Marson 160-SP or 140-SP pneumatic spin/pull tool is recommended for optimal results. Manual installation tools can be used with smaller thread sizes, but test installations should be performed to confirm compatibility with your specific application.
