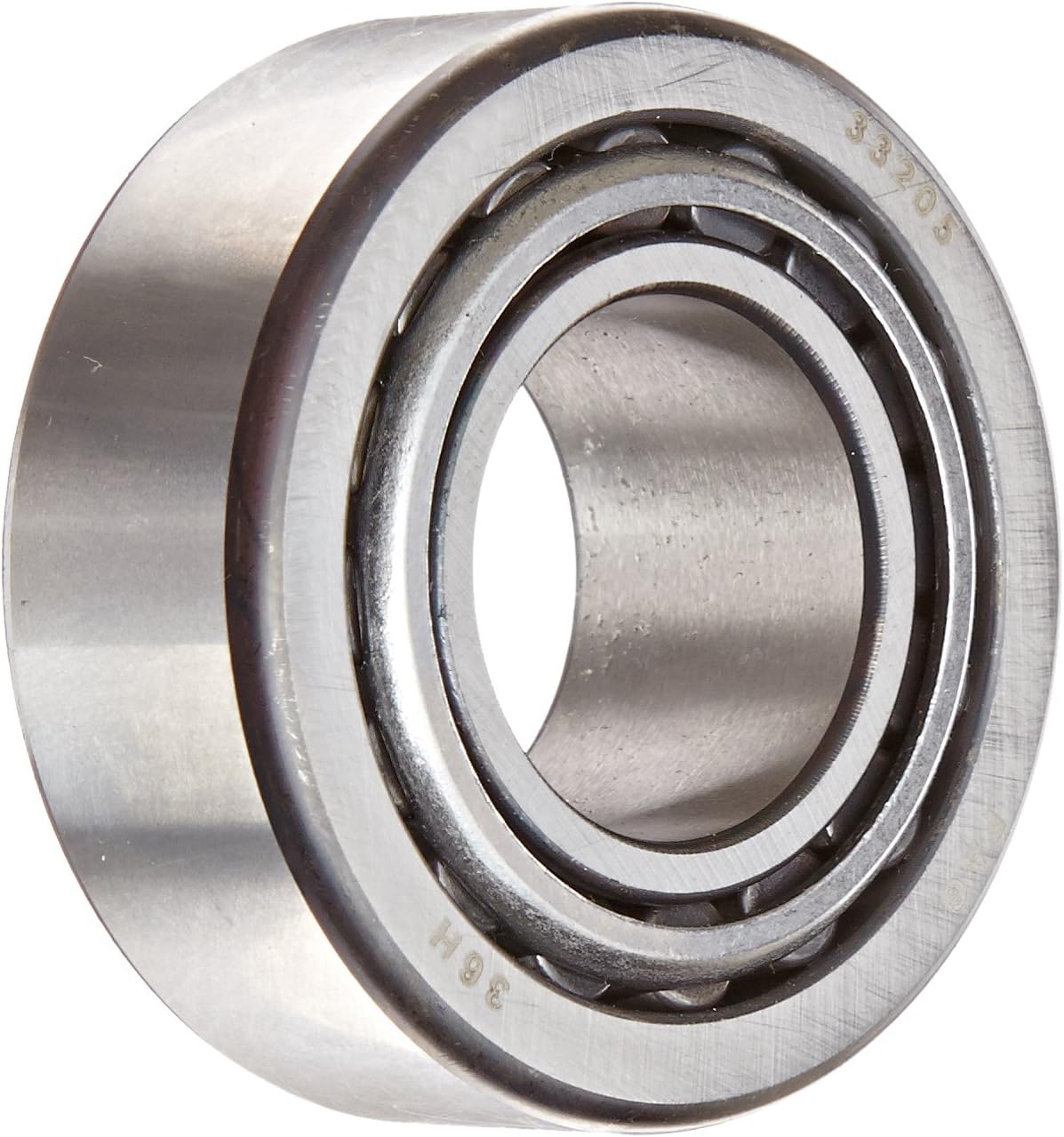

FAG 33205 Tapered Roller Bearing 25mm x 52mm x 22mm

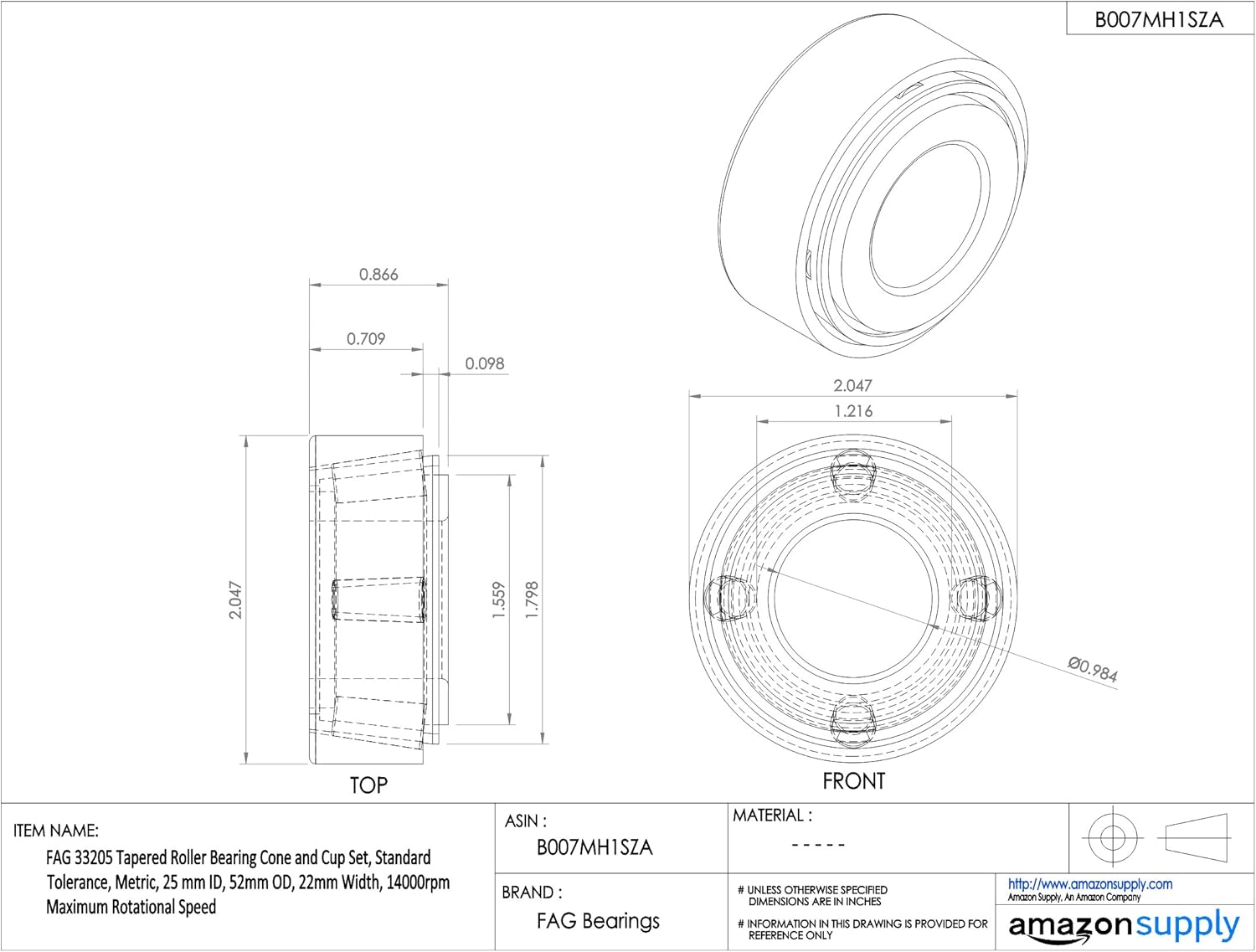

The FAG 33205 is a single-row tapered roller bearing designed to handle high radial and axial loads in one direction. This metric bearing features a 25mm bore diameter, 52mm outer diameter, and 22mm width, making it suitable for a wide range of industrial and automotive applications.

Key Features:

• Single-row tapered roller design with conical raceways for combined load capability
• Sheet steel cage prevents roller contact, reducing friction, vibration, and noise
• Separable design with cone and cup assembly for easy installation and maintenance
• Open construction allows for proper lubrication and precise adjustments
• Dynamic load rating of 48,500N and static load rating of 58,000N
• Maximum speed rating of 14,200 rpm for high-performance applications
• Operating temperature range from -30°C to 120°C (-22°F to 250°F)

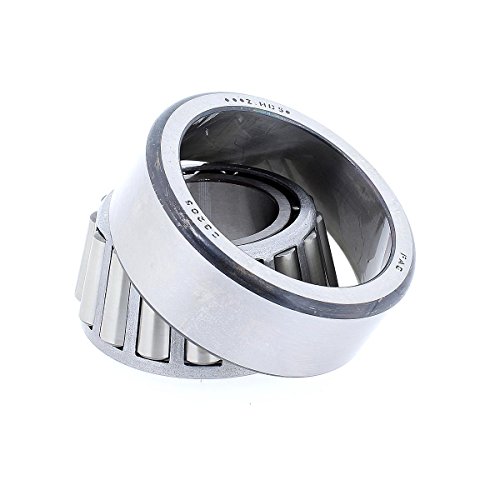

This bearing assembly consists of a ribless outer ring, an inner ring with two ribs of different heights, and truncated conical rollers contained in a cage. The roller and cage assembly forms a complete unit with the inner ring. Tapered roller bearings are typically mounted in opposing pairs on a shaft to evenly distribute loads and provide stability in both directions. Manufactured by Schaeffler Group to ISO and DIN quality standards.
