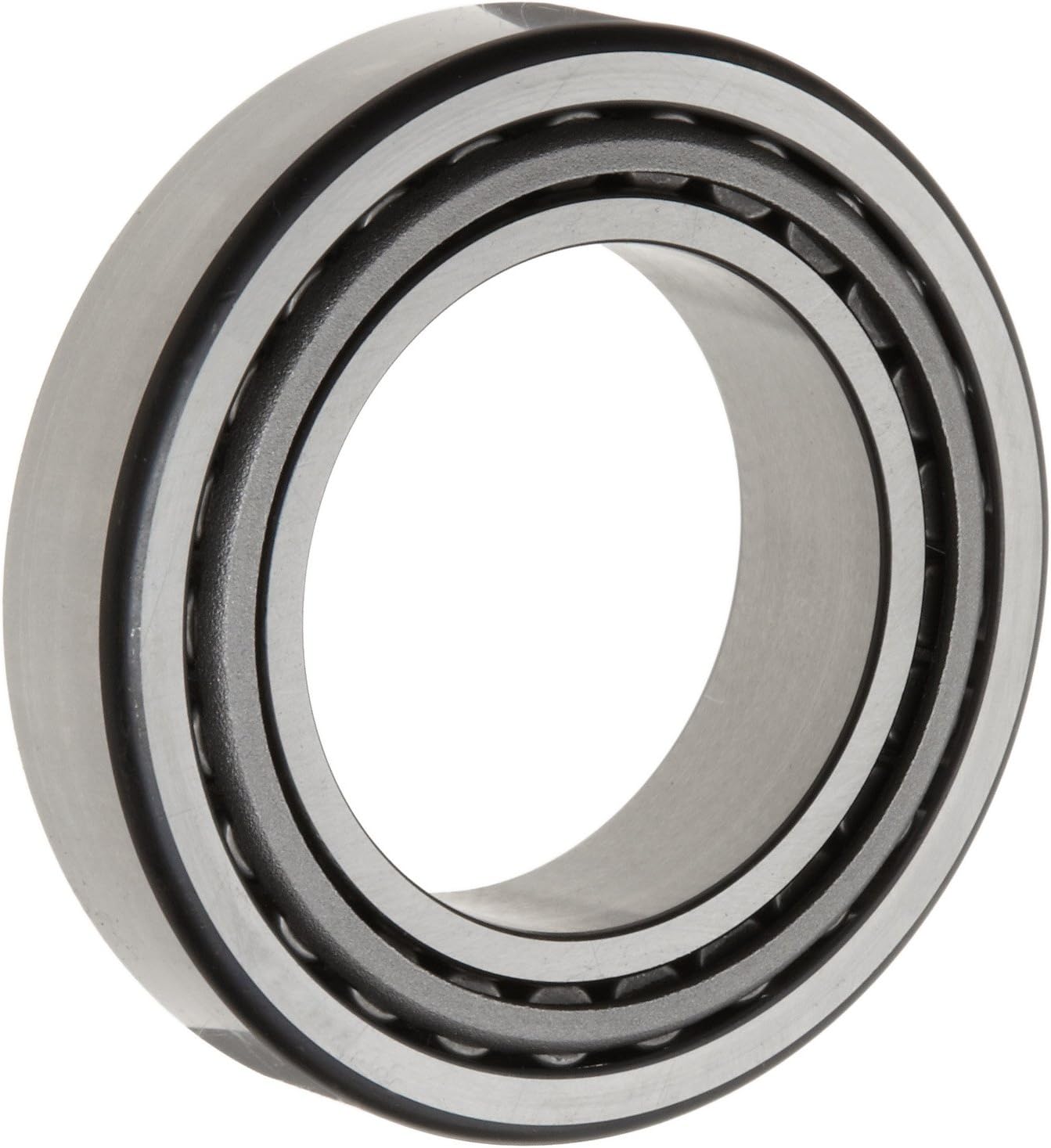

FAG 32011X Tapered Roller Bearing 55mm x 90mm x 23mm

The FAG 32011X is a single-row tapered roller bearing featuring a complete cone and cup set with a sheet steel cage. This metric series bearing is designed to support high radial and axial loads in one direction, making it ideal for demanding automotive and industrial applications.

Key Features:

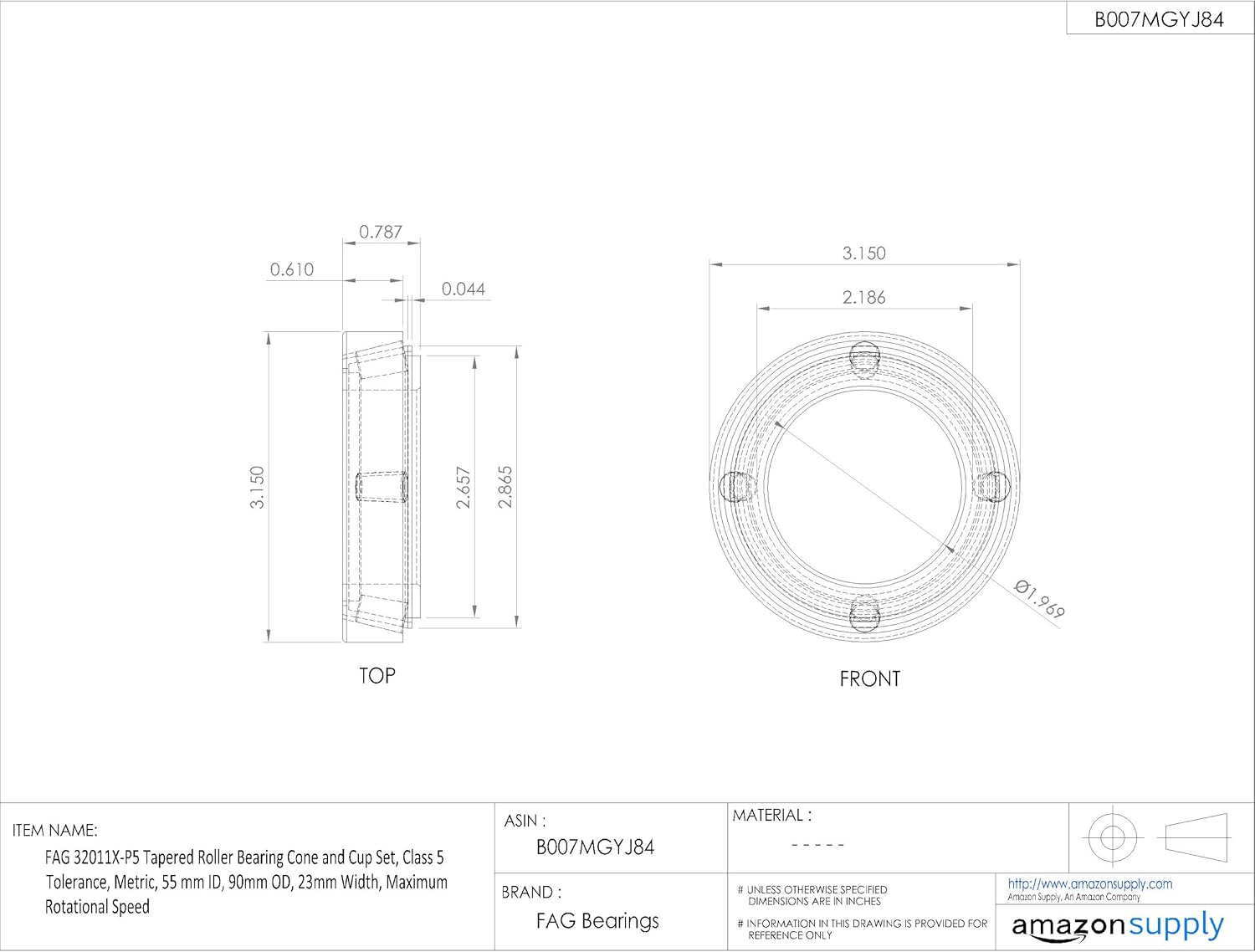

• Metric dimensions: 55mm bore (ID) x 90mm outer diameter (OD) x 23mm width
• Single-row tapered roller design with conical raceways for combined load support
• Sheet steel cage prevents roller contact, reducing friction, vibration, and noise
• Separable design (cone and cup) allows for easy assembly, disassembly, and adjustment
• Open bearing design permits field lubrication and precise adjustment
• Operating temperature range: -30°C to 120°C (-22°F to 250°F)
• Manufactured by Schaeffler Group to ISO and DIN standards

Tapered roller bearings like the 32011X are typically mounted in opposing pairs on a shaft to evenly distribute loads. The greater the contact angle, the greater the axial load capacity. This bearing's separable construction makes installation straightforward—the cone unit consists of the inner ring with cage and roller set, while the cup is the outer ring.

Cross-Reference Part Numbers: FAG 32011XDY, 32011XXL, KOYO 32011JR, NSK HR32011XJ, NTN 32011X, SKF 32011X, and various OEM numbers including 7162191, 8169268, and 1101597.
