FAG 33021 Tapered Roller Bearing Cone and Cup Set Metric 105mm x 160mm x 43mm

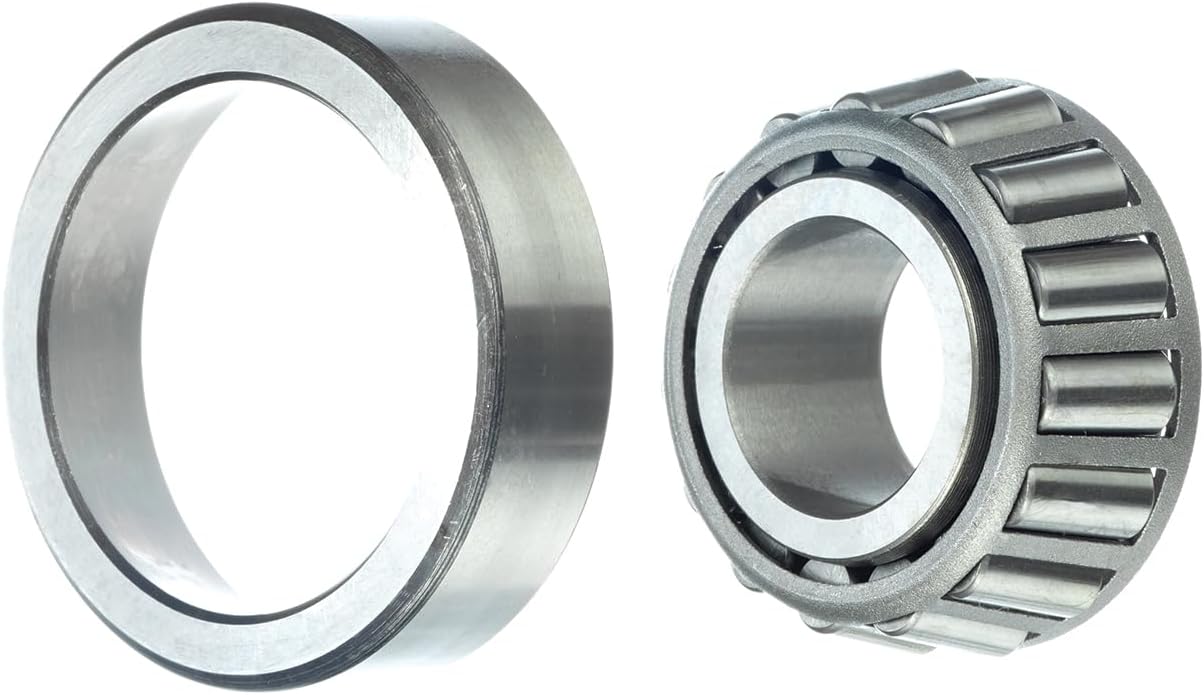

The FAG 33021 is a precision tapered roller bearing set designed for applications requiring radial and axial load capacity in a metric configuration. This complete assembly includes both the cone (inner ring with rollers and cage) and cup (outer ring) for immediate installation.

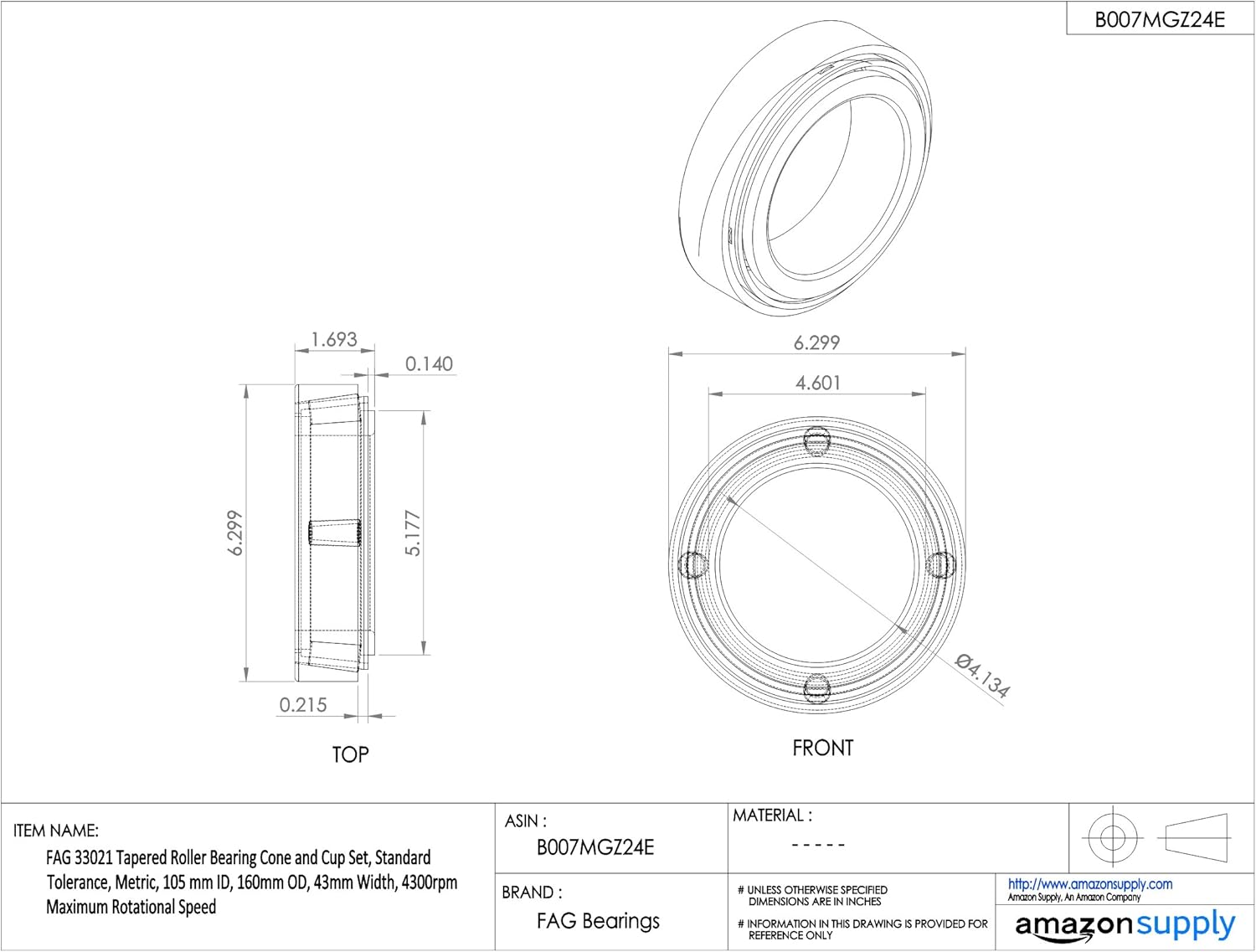

Key Specifications:

• Bore Diameter (ID): 105mm
• Outer Diameter (OD): 160mm
• Width: 43mm
• Maximum Rotational Speed: 4,300 RPM
• Standard Tolerance Class
• Metric dimensions

Features & Benefits:

• Tapered roller design provides superior load distribution for combined radial and thrust loads
• Manufactured by FAG (Schaeffler Group), a leading German bearing manufacturer known for precision engineering
• Complete cone and cup set ensures matched components for optimal performance
• Standard tolerance suitable for general industrial applications
• High-quality steel construction for durability and long service life

Commonly used in automotive axles, industrial gearboxes, machine tool spindles, and heavy equipment applications where robust bearing performance is required. The tapered design allows for precise adjustment of bearing clearance during installation.
