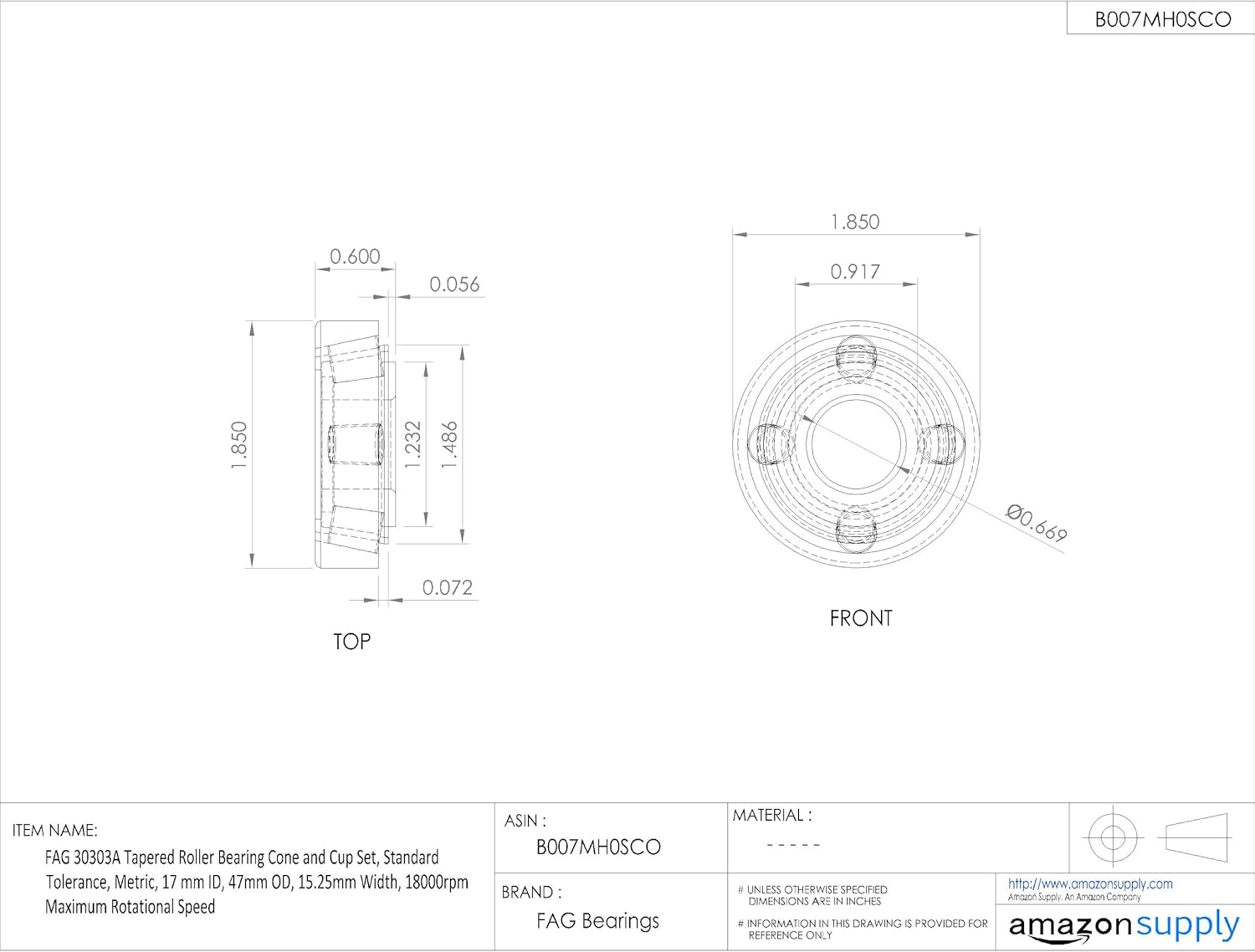

FAG 30303A Tapered Roller Bearing Cone and Cup Set Metric 17mm x 47mm x 15.25mm

The FAG 30303A is a high-quality tapered roller bearing assembly consisting of a matched cone and cup set designed for applications requiring both radial and axial load capacity. This metric bearing features precision-ground raceways and rollers that provide reliable performance in a compact design.

Key Specifications:

• Inner Diameter (Bore): 17mm
• Outer Diameter: 47mm
• Width: 15.25mm
• Maximum Rotational Speed: 18,000 RPM
• Standard tolerance class for general industrial applications
• Metric dimensions

Features and Benefits:

• Tapered roller design handles combined radial and thrust loads efficiently
• Matched cone and cup set ensures optimal performance and load distribution
• Precision manufacturing by FAG, a leading bearing manufacturer
• Suitable for automotive, industrial machinery, and power transmission applications
• High-speed capability up to 18,000 RPM for demanding applications
• Standard tolerance provides excellent value for general-purpose installations

Tapered roller bearings are separable, allowing for easy installation and adjustment of bearing clearance. The cone (inner ring with rollers and cage) and cup (outer ring) can be mounted independently, making them ideal for applications where precise preload adjustment is required.
