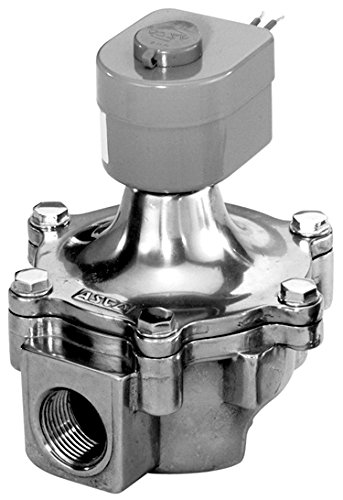

Asco 8215G1 Aluminum Solenoid Valve NPT Normally Closed - 2-Way 3/8

The ASCO 8215G1 is a 2-way normally closed solenoid valve engineered for low-pressure air and inert gas control applications. Featuring a lightweight aluminum body construction with stainless steel and steel internal components, this internal pilot-operated valve delivers reliable performance in compact installations.

Key Specifications:

• Pipe Size: 3/8" NPT inlet connection
• Orifice Size: 3/4" for high flow capacity
• Cv Flow Factor: 3.4
• Operating Pressure Range: 5-125 PSI differential
• Voltage: 120V AC, 50/60 Hz
• Power Consumption: 10.1 watts (Class F coil insulation)
• Maximum Fluid Temperature: 125°F
• Seal Material: NBR (Nitrile Buna-N) diaphragm
• Capacity: 183,000 BTU/hr

Features and Benefits:

• Internal pilot operation provides quick response time with minimal pressure drop
• Durable aluminum body keeps weight low while maintaining strength
• UL listed as safety shutoff valve (general purpose designation)
• Watertight enclosure rated for NEMA 1, 2, 3, 3S, 4, and 4X environments
• 18" lead wires for flexible electrical connections
• Vertical mounting preferred for optimal longevity and performance
• FM, CSA, and CE approved for quality and safety compliance

This valve is ideal for air compressor systems, pneumatic controls, vacuum applications, and other low-pressure air service installations. The normally closed design ensures the valve remains shut when de-energized, providing fail-safe operation. Note: Not approved for fuel gas applications.
