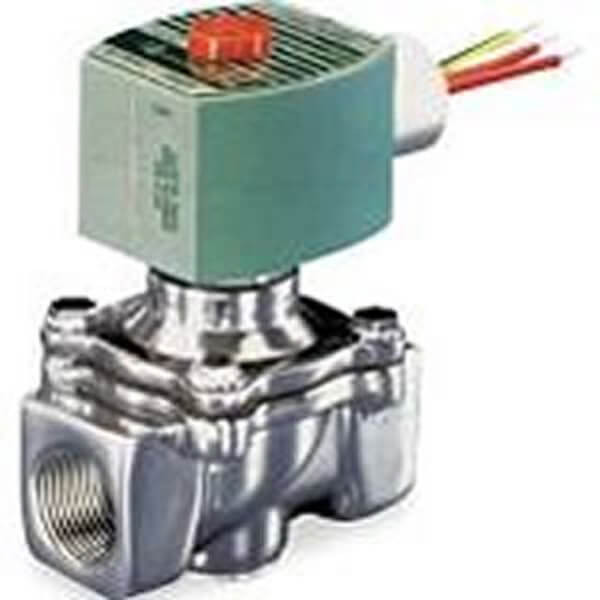

Asco 8215G10 Aluminum Solenoid Valve NPT Normally Closed - 2-Way 3/8 120V

The Asco 8215G10 is a 2-way normally closed solenoid valve designed for air and vacuum service applications. This lightweight aluminum body valve is ideal for low pressure applications and features direct acting or piloted operation for reliable performance in combustion control systems.

Key Specifications:

• Body Material: Rugged aluminum construction with steel and stainless steel internal components
• Pipe Size: 3/8" NPT female pipe thread connections
• Orifice Diameter: 3/4"
• Flow Coefficient (Cv): 3.4
• Maximum Capacity: 183,000 BTU/hr
• Operating Pressure Range: 0-50 PSI differential
• Maximum Fluid Temperature: 125°F
• Ambient Temperature Range: 32°F to 125°F
• Voltage: 120V AC, 50/60 Hz (10.1 watts)
• Seal Material: Buna-N (NBR)
• Coil Insulation: Class F
• Electrical Connection: 18" lead wires

Enclosure and Approvals:

• NEMA Ratings: 1, 2, 3, 3S, 4, 4X (general purpose and watertight)
• UL approved as safety shutoff valve
• FM and CSA approved

This valve is suitable for use in air service, vacuum applications, and fuel gas systems including double block and vent gas burner configurations. The aluminum body provides excellent corrosion resistance while keeping the valve lightweight and cost-effective.
