Callies CSA6200DS2A2AH Compstar H-Beam Connecting Rods 6.200 Small Block Chevy

Part of: Callies Compstar H-Beam Connecting Rods

Other options in this family: Callies CSC6125DS2A2AH Callies CSA6000DS2A2AH Callies CSA5850CS2A2AH Callies CSA6250DS2A2AH Callies CSA6200CS2A2AH

Manufacturer

Picture for manufacturer Callies

Part Number

CSA6200DS2A2AH
14 reviews
Sale Price

$799.43

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

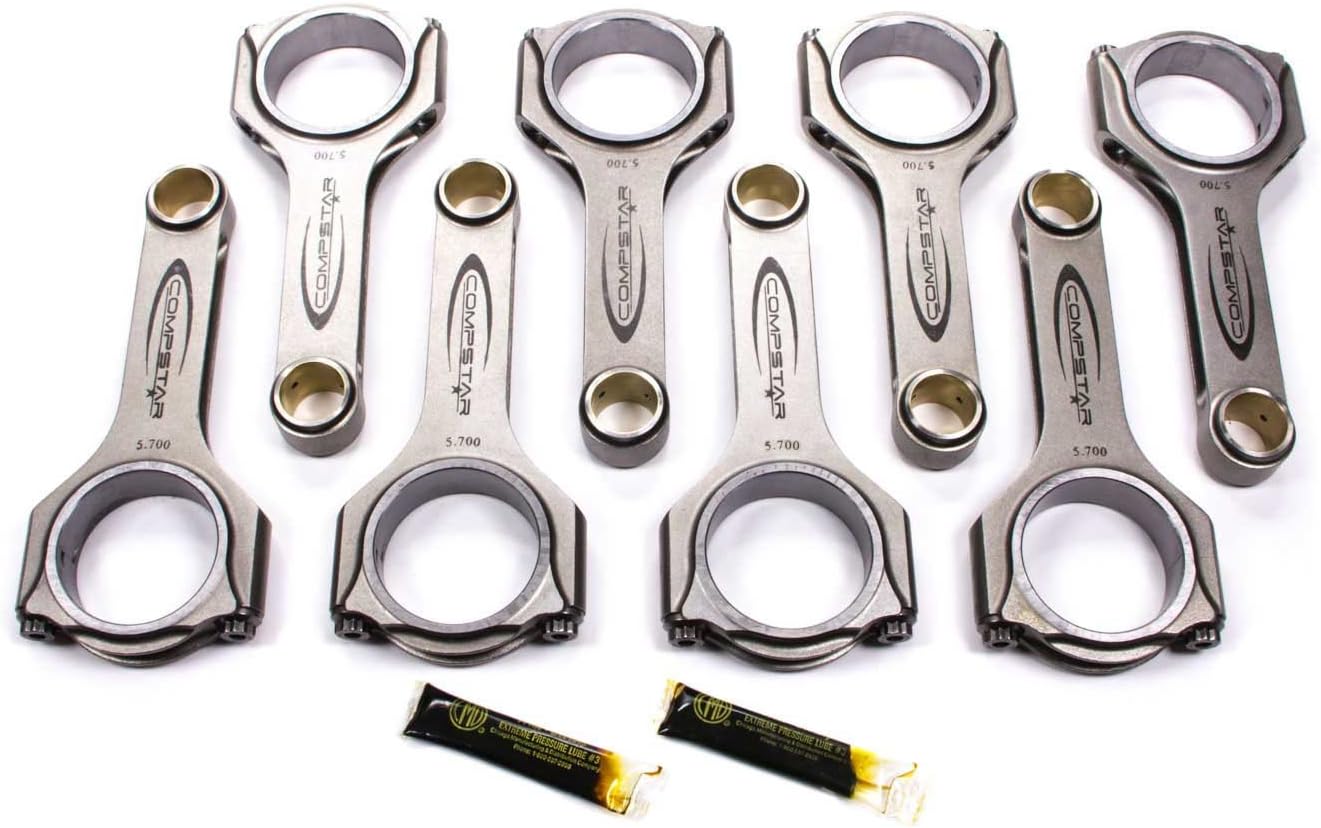

The Callies Compstar CSA6200DS2A2AH connecting rod set delivers high-performance reliability for Small Block Chevy engines. These forged 4340 steel H-beam connecting rods are engineered for stroker applications and high-horsepower builds, combining professional-grade quality with exceptional value.

Key Specifications:

  • Center-to-center length: 6.200 inches
  • Rod journal diameter: 2.100 inches
  • Wrist pin diameter: 0.927 inches (bushed, full floating)
  • Typical weight: 615 grams per rod
  • Fasteners: 7/16 inch ARP2000 cap screws
  • Material: Forged 4340 steel with shot-peened finish

Engineering Excellence:

  • Heat treated and stress relieved forged 4340 material for maximum strength
  • Multiple re-torque processing ensures dimensional repeatability after disassembly
  • Fully machined with stress-riser-free surface
  • Chamfered pin bushings and deburred bearing locating tab slots
  • Will clear a 0.660 inch lift cam on a 0.900 inch base circle with 4.000 inch stroke crank
  • 100% magnetic particle inspected for quality assurance
  • Weight matched set for balance and consistency

Designed with higher horsepower stroker motors in mind from the start, these Compstar rods provide proper clearances for high-performance use right out of the box. The semi-finished forgings are machined overseas on Callies-owned dies, then shipped to their Fostoria, Ohio facility where American craftsmen finish, hone, and quality control every rod to exacting specifications. Custom pistons are required when using connecting rods with non-stock length.

Products specifications

Advertised Horsepower Rating (hp)

650 hp

Advertised RPM Rating

7,500 rpm

Approximate Connecting Rod Weight (g)

619

Balanced

Yes

Big End Bore Diameter (in)

2.2250 in.

Big End Width (in)

0.940 in.

Cap Retention Style

Cap screw

Clearanced for Stroker

Yes

Connecting Rod Beam Style

H-beam

Connecting Rod Bolt Brand

ARP

Connecting Rod Bolt Diameter

7/16 in.

Connecting Rod Bolt Head Style

12-point

Connecting Rod Bolt Material

ARP2000 alloy

Connecting Rod Finish

Shot-peened

Connecting Rod Length Center To Center (in)

6.200 in.

Connecting Rod Material

Steel

Fastener Yield Strength (psi)

200,000 psi

Magnafluxed

Yes

Notes

Custom pistons required when using connecting rods with any length other than OE.

Pin End Bore Diameter

0.928 in.

Pin End Width (in)

0.960 in.

Quantity

Sold as a set of 8.

Remanufactured

No

Rod Journal Diameter (in)

2.100 in.

Tool

Stroker Combinations

Weight Matched Set

Yes

Wrist Pin Style

Floating
