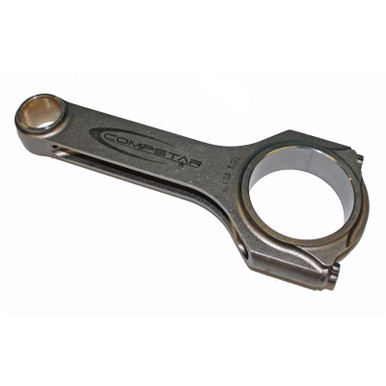

Callies CSA5850CS2A2AH Compstar H-Beam Connecting Rods - 5.850 in - Small Block Chevy

Part of: Callies Compstar H-Beam Connecting Rods

Other options in this family: Callies CSC6125DS2A2AH Callies CSA6000DS2A2AH Callies CSA6200DS2A2AH Callies CSA6250DS2A2AH Callies CSA6200CS2A2AH

Manufacturer

Picture for manufacturer Callies

Part Number

CSA5850CS2A2AH
7 reviews
Sale Price

$701.60

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Callies Compstar CSA5850CS2A2AH H-Beam connecting rods are engineered for high-performance small block Chevy applications requiring precision, reliability, and exceptional strength. These forged 4340 steel connecting rods feature a 5.850-inch center-to-center length with a 2.0-inch rod journal diameter, making them ideal for stroker and high-horsepower builds.

Key Features:

  • Forged 4340 steel construction with heat treatment and stress relief for maximum durability
  • H-Beam design optimized for high-revving naturally aspirated and mildly boosted engines
  • 5.850-inch center-to-center length with 2.0-inch rod journal diameter
  • ARP2000 7/16-inch cap screws for superior tensile strength and clamping force
  • Bushed small end with chamfered and honed pin bushings for proper oil clearance
  • 0.960-inch pin end width compatible with Forged Side Relief (FSR) style pistons without modification
  • Stroker clearance design with optimized bolt placement for increased cam and pan rail clearance
  • Typical weight of 587 grams per rod

Callies Compstar rods feature dimensional repeatability through extensive stress relief processing and multiple re-torque cycles, ensuring the big end bores remain round after repeated disassembly. Bolt spotface gussets increase strength and dimensional stability in critical areas. The parting line edges are chamfered to resist scraping during bearing installation, and bearing locating tab slots are deburred for trouble-free assembly. Fully machined with a shot-blasted, stress-riser-free surface finish.

Products specifications

Advertised Horsepower Rating (hp)

650 hp

Advertised RPM Rating

7,500 rpm

Approximate Connecting Rod Weight (g)

587

Balanced

Yes

Big End Bore Diameter (in)

2.1250 in.

Big End Width (in)

0.940 in.

Cap Retention Style

Cap screw

Clearanced for Stroker

Yes

Connecting Rod Beam Style

H-beam

Connecting Rod Bolt Brand

ARP

Connecting Rod Bolt Diameter

7/16 in.

Connecting Rod Bolt Head Style

12-point

Connecting Rod Bolt Material

ARP2000 alloy

Connecting Rod Finish

Shot-peened

Connecting Rod Length Center To Center (in)

5.850 in.

Connecting Rod Material

Steel

Fastener Yield Strength (psi)

200,000 psi

Magnafluxed

Yes

Notes

Custom pistons required when using connecting rods with any length other than OE.

Pin End Bore Diameter

0.928 in.

Pin End Width (in)

0.960 in.

Quantity

Sold as a set of 8.

Remanufactured

No

Rod Journal Diameter (in)

2.000 in.

Tool

Stroker Combinations

Weight Matched Set

Yes

Wrist Pin Style

Floating
