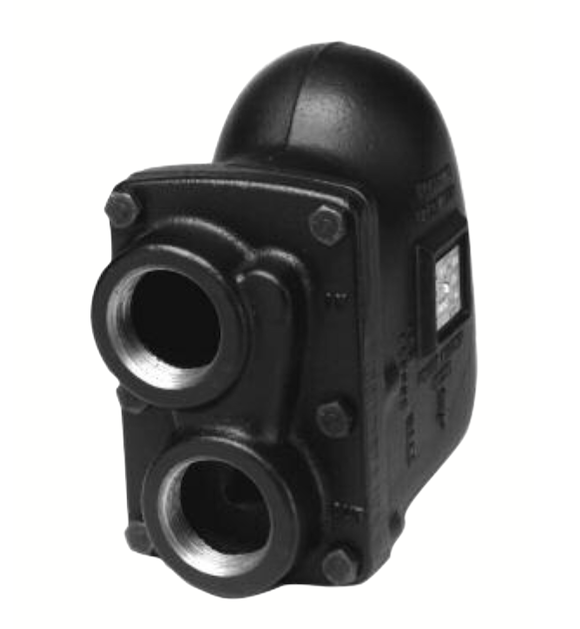

Xylem 404224 FT075C Float and Thermostatic Steam Trap 1-1/4 Inch NPT 75 PSI

The Xylem 404224 is a Hoffman Specialty Series C float and thermostatic (F&T) steam trap designed for continuous condensate drainage in steam heating systems. This model features a 1-1/4 inch NPT connection with a maximum operating pressure of 75 PSI and an impressive condensate capacity of 5,900 pounds per hour.

Key Features:

• Cast iron construction with stainless steel internal parts for durability and corrosion resistance
• Same side configuration with inlet on top end of cover and discharge outlet on bottom end
• Continuous drainage design for low, medium, and high pressure steam mains
• Efficient air venting at very low pressures to handle start-up air loads
• Operates effectively against back pressure in varying load conditions
• Ideal for heat exchange equipment requiring quick venting of air and non-condensable gases

Hoffman Specialty F&T traps are recommended for modulating pressures where loads vary significantly and steam pressures may fluctuate from maximum to vacuum conditions. These traps excel in applications requiring reliable performance across a wide range of operating conditions.
