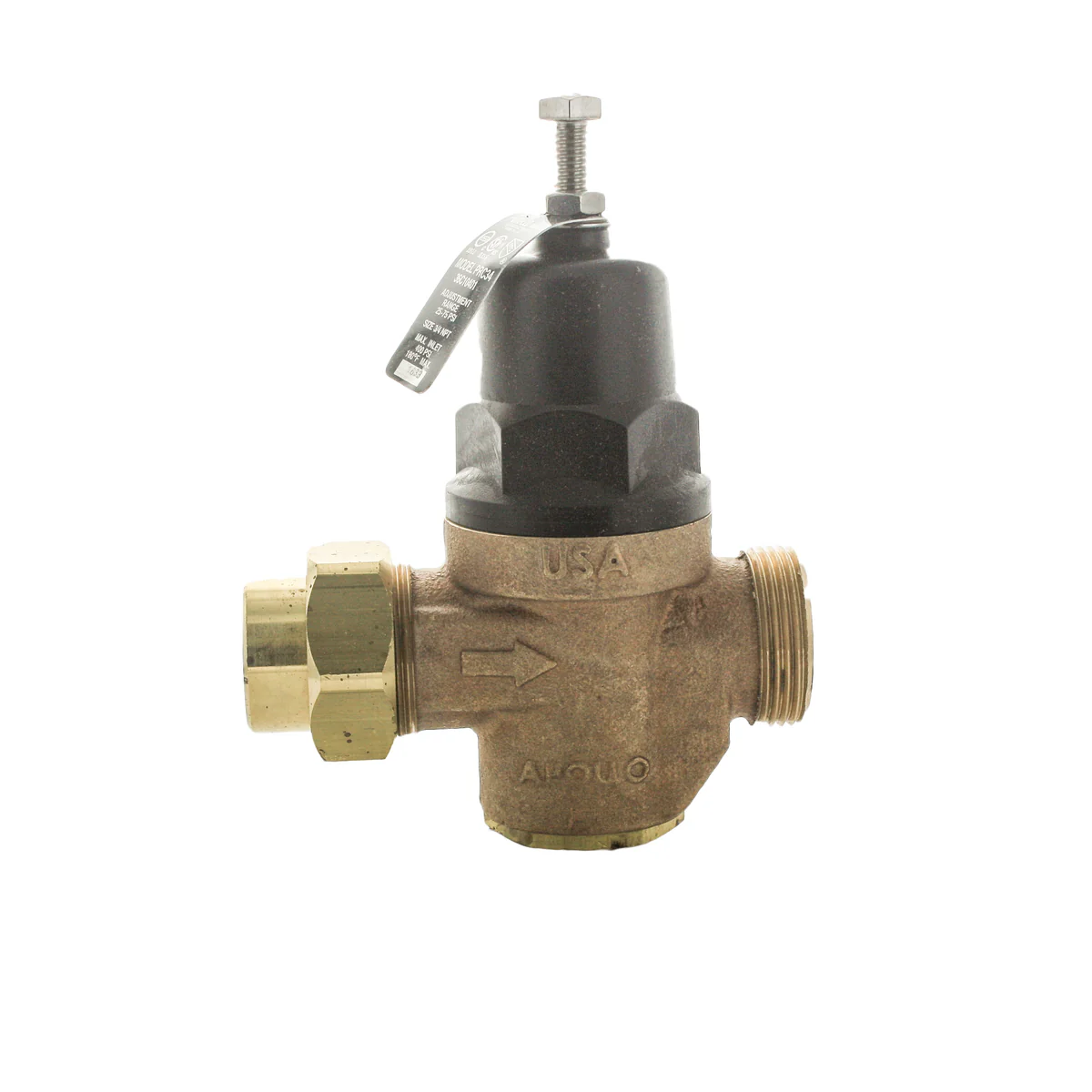

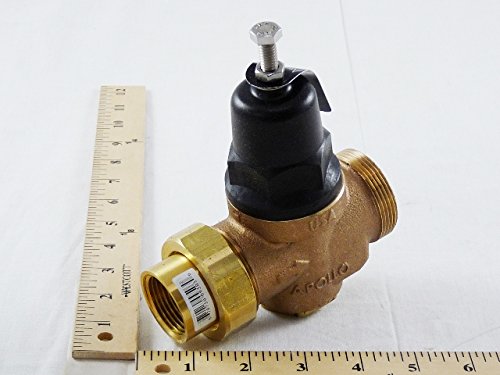

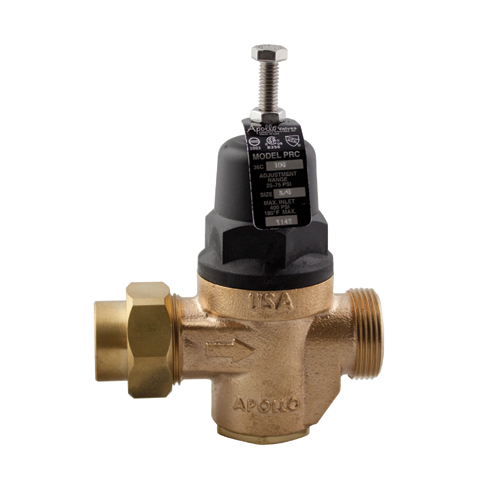

Conbraco 36C-105-01 1" Pressure Reducing Valve Union x NPT 25-75 PSI

The Conbraco Apollo 36C-105-01 is a compact, direct-acting 1-inch pressure reducing valve engineered to protect residential and commercial water distribution systems by automatically controlling high inlet pressure and stabilizing downstream pressure. This versatile valve handles maximum inlet pressures up to 400 PSI and reduces them to a safe, functional outlet pressure.

Key Features:

• Factory preset to 50 PSI outlet pressure, field adjustable from 25 to 75 PSI
• Bronze body construction (ASTM B584) for durability and corrosion resistance
• Integral stainless steel strainer protects internal components
• EPDM seat and disc with FDA-grade nitrile O-rings for reliable sealing
• Balanced piston design with sealed spring cage vault
• Thermoplastic cage provides maximum corrosion resistance
• Built-in thermal expansion bypass
• Stainless steel adjusting screw and nut for precise pressure control
• Temperature rating: 33°F to 180°F
• 1-inch Female NPT Union x Female NPT connection

Easy Maintenance:

Designed for easy in-line servicing with bottom cleanout access to seat disc and strainer. The valve meets ASSE 1003, CSA B356, and IAPMO standards and is manufactured in the USA.

Applications:

Ideal for irrigation systems, plumbing installations, and commercial water distribution systems where pressure control is critical to protect equipment and extend piping system life.
