Conbraco 36-104-02 Water Pressure Reducing Valve 3/4" Union x FNPT 10-35 PSI with Bypass

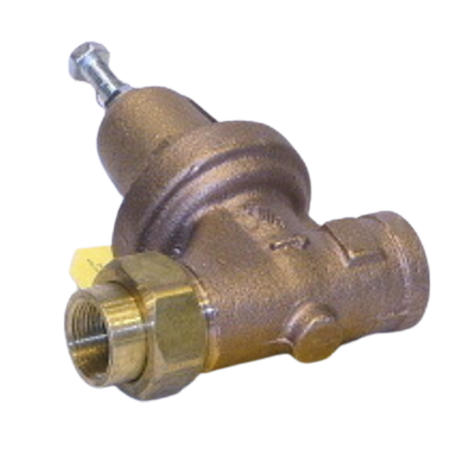

The Conbraco 36-104-02 is a water pressure-reducing valve that features a 10 to 35 psi low-pressure spring range with 300 psi maximum working pressure. It has a 3/4" Union x 3/4" FNPT pipe connection size. This Apollo 36 Series pressure reducing valve is designed to protect residential and commercial water distribution systems by automatically controlling excessive pressures and supply fluctuations.

Key Features:

• High-capacity 20 mesh strainer and bronze body that withstands up to 180°F temperatures
• Built-in thermal expansion bypass and integral strainer, complying with ASSE 1003, ANSI A112.26.2, CSA B356 and IAPMO standards
• All-bronze body construction with high-capacity stainless steel strainer for long, reliable service
• Factory preset at 50 PSI with easy screw adjustment
• Adjustable pressure by turning the screw clockwise to increase and counterclockwise to decrease pressure settings
• Easy installation with replaceable seat assembly and cartridge that can be quickly fitted without removing the regulator from the pipeline

This low-pressure model is ideal for applications requiring reduced outlet pressures in the 10-35 PSI range, helping to conserve water, reduce energy costs, extend piping life, and minimize water hammer shock. The built-in bypass feature provides thermal expansion relief for closed water systems.
