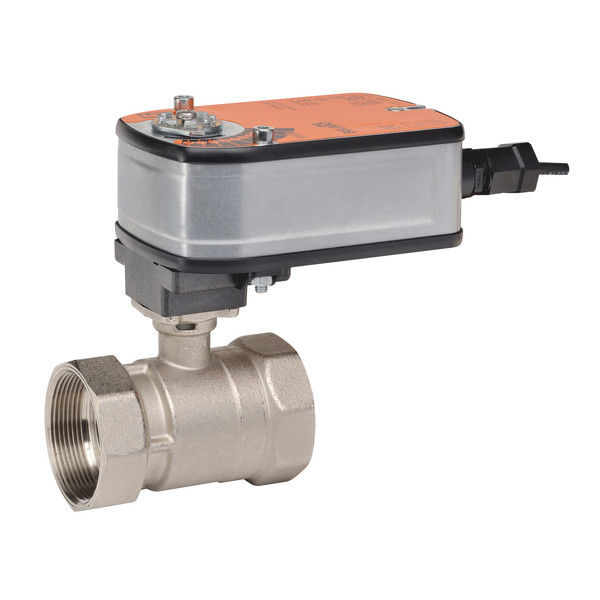

Belimo B217B+LF24-SR-S Characterized Control Valve Assembly with Spring Return Actuator - 3/4 2-Way

Manufacturer

Part Number

B217B+LF24-SR-S
Sale Price

$487.20

In Stock (6)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo B217B+LF24-SR-S is a characterized control valve (CCV) assembly designed for precise proportional control of hot or chilled water in HVAC systems. This complete assembly combines a 3/4" NPT brass ball valve with a factory-mounted LF24-SR-S spring return actuator for reliable, maintenance-free operation.

Key Specifications:

  • Valve Size: 3/4" NPT threaded connections
  • Configuration: 2-way characterized control valve
  • Flow Coefficient (Cv): 4.7 (9.4 GPM at 4 psi pressure drop)
  • Actuator: LF24-SR-S spring return, fail-safe operation
  • Voltage: AC/DC 24V (19.2-28.8V AC / 21.6-28.8V DC)
  • Control Signal: 2-10 VDC proportional modulating control
  • Auxiliary Switch: (1) SPDT 3A @ 250V for status indication
  • Power Consumption: 2.5W operating, 1W at rest
  • Rotation: 95° operating range with electronic overload protection

Features and Benefits:

  • Equal percentage flow characteristic provides precise control and prevents hunting
  • Characterizing disc enhances control stability for variable flow systems
  • Brass construction with stainless steel trim for durability
  • Spring return ensures fail-safe positioning during power loss
  • Direct-coupled actuator eliminates mechanical linkages
  • Ideal for air handling units, fan coil units, VAV reheat coils, and bypass loops
  • Factory assembled and tested for plug-and-play installation
  • Backed by Belimo's 5-year warranty

This valve assembly is engineered for Building Automation Systems (BAS) and provides reliable, energy-efficient control in hydronic heating and cooling applications.
