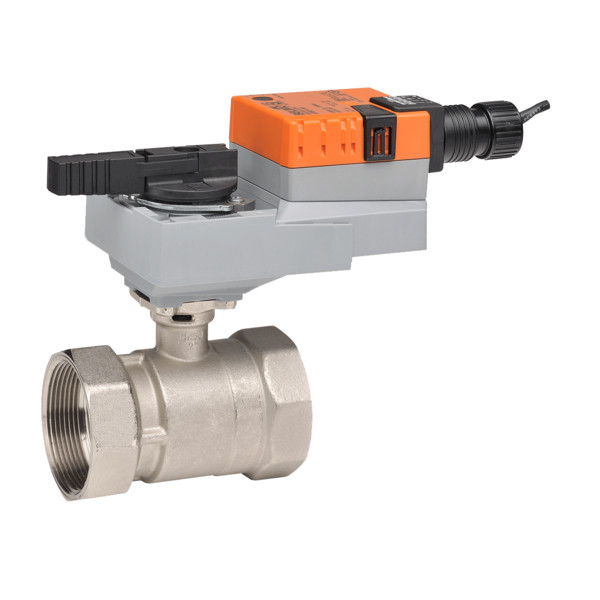

Belimo B250+AFRX24-MFT Characterized Control Valve Assembly with Spring Return Actuator - 2-Inch 2-Way

Manufacturer

Part Number

B250+AFRX24-MFT
Sale Price

$796.38

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo B250+AFRX24-MFT is a 2-inch characterized control valve (CCV) assembly designed for precise control of hot or chilled water in HVAC applications. This complete assembly combines a forged brass, nickel-plated valve body with stainless steel ball and stem, paired with a direct-coupled spring return actuator featuring Multi-Function Technology (MFT) programmability.

Valve Specifications:

  • 2-inch NPT threaded connections
  • Cv rating of 57 (114 GPM at 4 psi differential)
  • Equal percentage flow characteristic for precise modulating control
  • 200 psi close-off pressure rating
  • Operating temperature range: 0°F to 250°F (-18°C to 120°C)
  • Suitable for chilled water, hot water, and glycol solutions up to 60%
  • Stainless steel trim ensures durability and zero leakage

Actuator Features:

  • 180 in-lb torque with spring return fail-safe operation
  • 24 VAC/DC power supply
  • Programmable MFT control with default 2-10 VDC modulating signal
  • Configurable for multiple control types including floating point, PWM, and on/off
  • Running power consumption: 7.5W; holding power: 3W
  • Operating ambient temperature: -22°F to 122°F (-30°C to 50°C)
  • Maintenance-free design with cULus and CE certifications

Applications:

Ideal for air handling units, fan coil units, unit ventilators, VAV box reheat coils, and bypass loops in hydronic systems with variable flow requirements. The characterized control valve design with equal percentage flow characteristic prevents control loop hunting, enhances system stability, and optimizes energy consumption. Ball valve construction provides self-cleaning operation and zero leakage performance comparable to globe valves of the same size.
