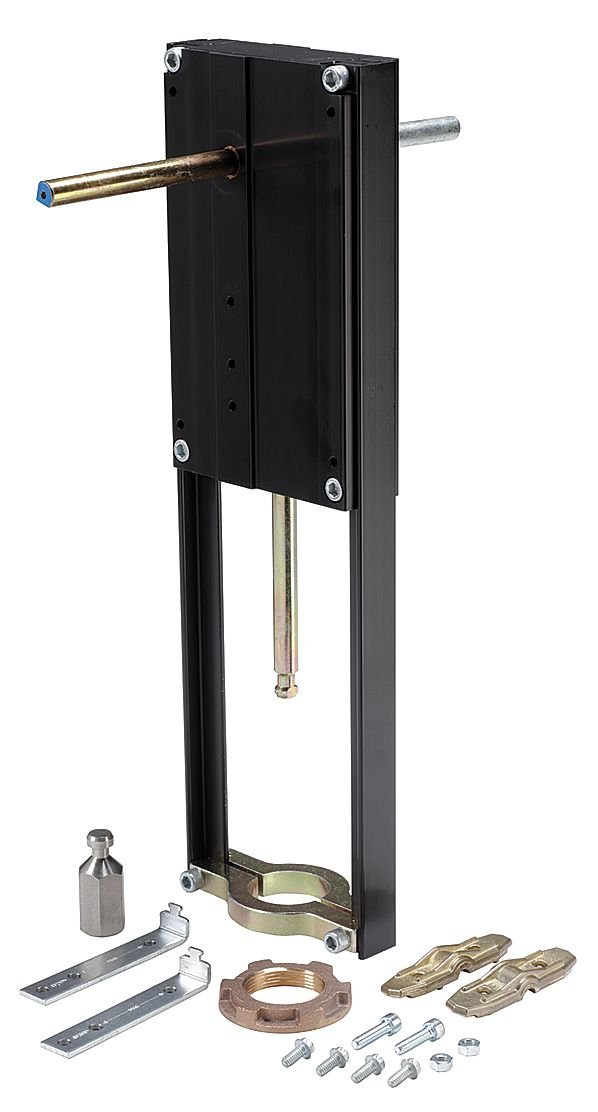

Johnson Controls M9000-532 Cast Iron Flanged Valve Linkage Kit HVAC Control Valves & Actuators

The Johnson Controls M9000-532 is a precision-engineered tandem linkage kit designed for use with M9216 and M9220 series actuators in HVAC damper and valve control applications. This heavy-duty linkage assembly provides reliable mechanical connection between tandem actuators and cast iron flanged control valves.

Key Specifications:

• Valve stem diameter: 3/8 inch
• Nominal valve stroke: 1-1/8 inches
• Minimum force output: 761 lbs when used with tandem M9124 series actuators
• Compatible with M9216 and M9220 series actuators
• Cast iron construction for durability and long service life
• Flanged valve design for secure mounting

This linkage kit is part of the comprehensive Johnson Controls M9000-53x series, engineered to provide robust mechanical coupling in demanding commercial and industrial HVAC applications. The tandem configuration enables increased force output for applications requiring higher torque or thrust requirements than single actuators can provide.
