Johnson Controls VG12A5GU+92NBGC 2.5" Flanged Ball Valve with M9220-BGC-3 Spring Return Actuator 117 Cv Two-Way

The Johnson Controls VG12A5GU+92NBGC is a 2-1/2 inch two-way flanged ball valve with 117 Cv capacity and 100 PSIG closeoff rating, factory-mounted with an M9220-BGC-3 spring return electric actuator featuring two auxiliary switches. This valve assembly is primarily designed to regulate the flow of hot water, chilled water, and 50/50 glycol solutions to the demand of a controller in HVAC systems.

Valve Features:

• ASME Class 150 flanged connections in two-way configuration
• 2-1/2 inch (DN65) valve size with stainless steel trim
• 500:1 rangeability provides accurate control under all load conditions
• Provides tight shutoff with 100 PSI closeoff pressure rating
• EPDM double O-ring stem seal offers tested leak-free operation for 200,000 cycles
• Graphite-reinforced PTFE seats include 15% graphite-reinforced ball seals for extended life in iron-oxide contaminated water

Actuator Specifications:

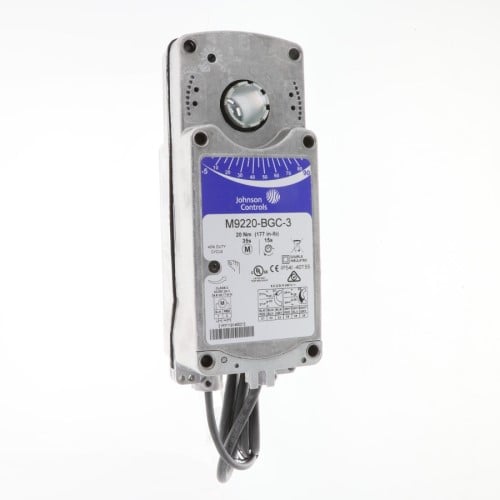

• M9220-BGC-3 provides 177 lb-in (20 N-m) running and spring return torque
• 24 VAC at 50/60 Hz or 24 VDC on/off control with spring return to valve open (normally open) position
• Integral line voltage auxiliary switches (two SPDT) indicate end-stop position
• 48 inch (1.2 m) 18 AWG appliance cable for electrical connections
• NEMA 2 (IP54) rated aluminum enclosure with 90-degree stroke

The factory-mounted actuator assembly provides thermal isolation between the actuator and valve while reducing field installation time and cost. Allow a minimum of 4 inches clearance above the shaft to remove the actuator.
