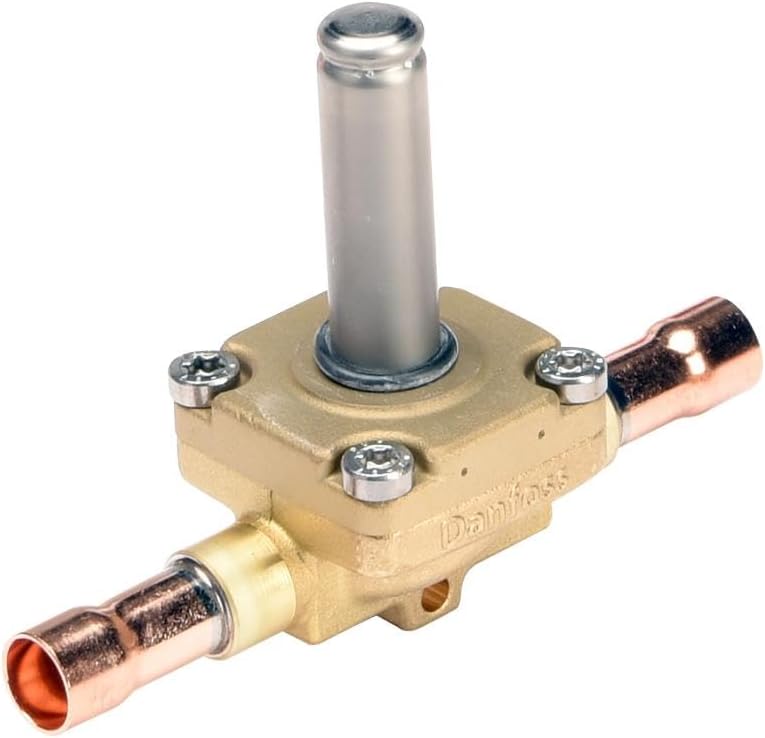

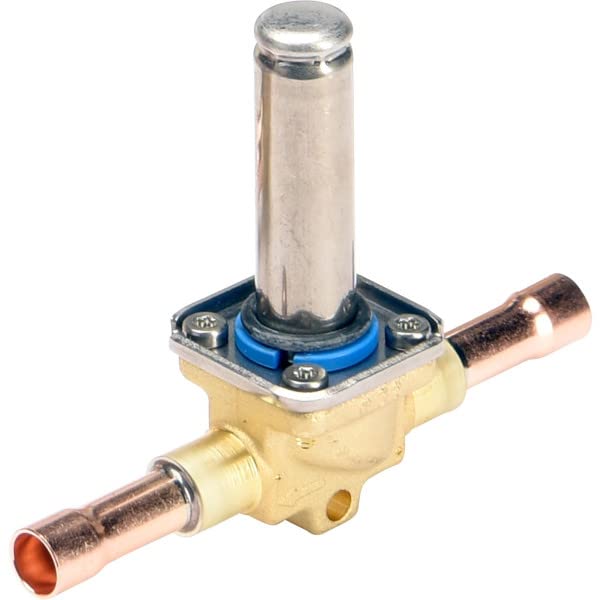

Danfoss 032L1214 Solenoid Valve Body ODF Normally Closed - EVR10 5/8

The Danfoss 032L1214 is an EVR10 series solenoid valve body designed for professional refrigeration and air conditioning applications. This normally closed (NC) valve body is sold without a coil, allowing technicians to select the appropriate coil separately based on voltage and power requirements.

Key Features:

• 5/8 inch (16mm) ODF solder connections on both inlet and outlet
• Brass body construction for durability and corrosion resistance
• Maximum working pressure of 655 PSI (45.2 bar)
• Servo-operated design with 0.05 bar minimum pressure drop requirement
• Capacity: 2.2 m³/h (KV value)
• Compatible with fluorinated refrigerants and most hydrocarbons
• Operating temperature range: -40°F to 221°F (-40°C to 105°C)
• Designed for liquid, suction, and hot gas line applications
• No manual operation stem included

The EVR series valves feature extended solder ends that simplify installation by eliminating the need to dismantle the valve during soldering. This valve body is part of Danfoss's complete range of refrigeration control components and requires a separate coil for operation. Cross-reference part numbers include 032F1168 and 032F1214.
