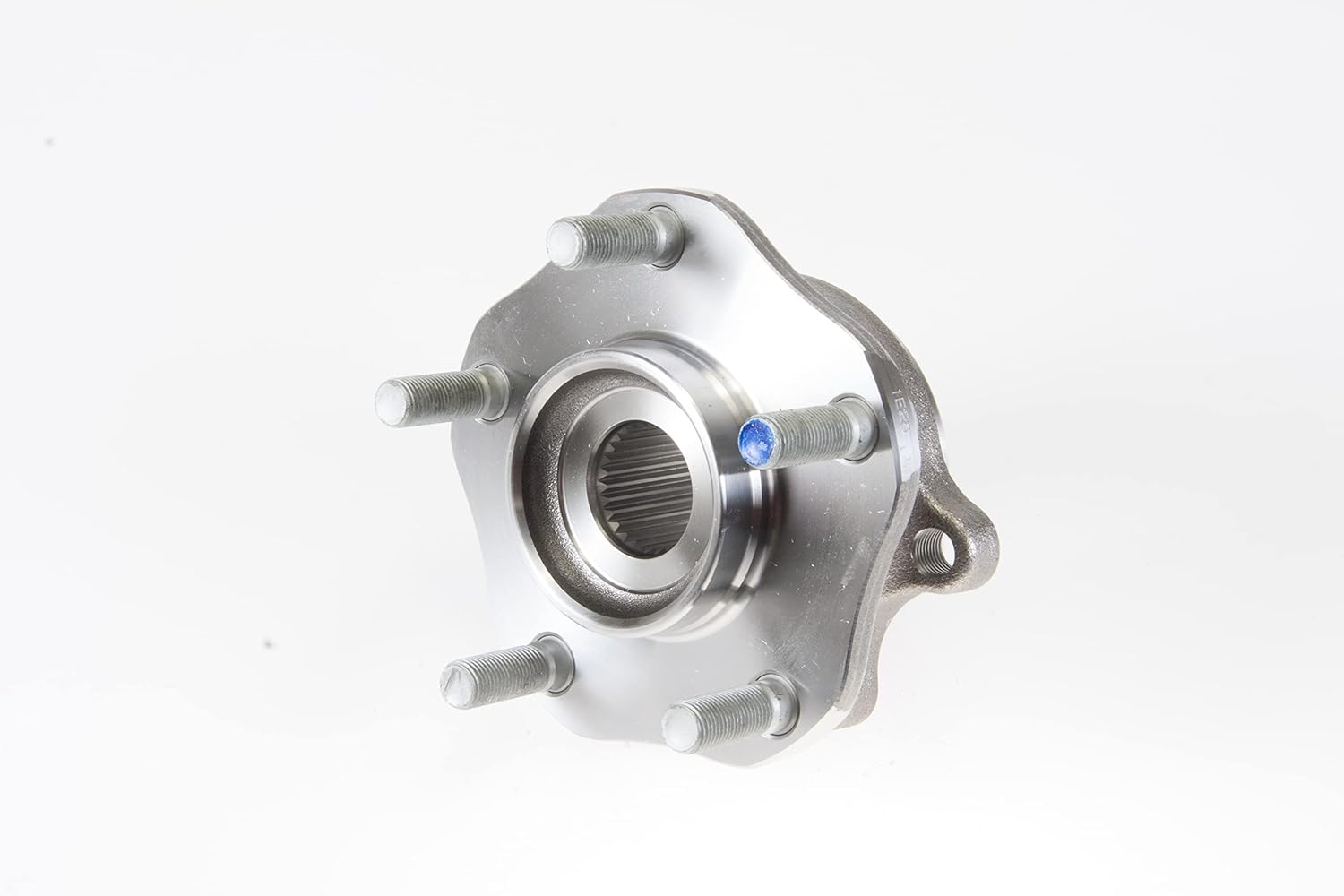

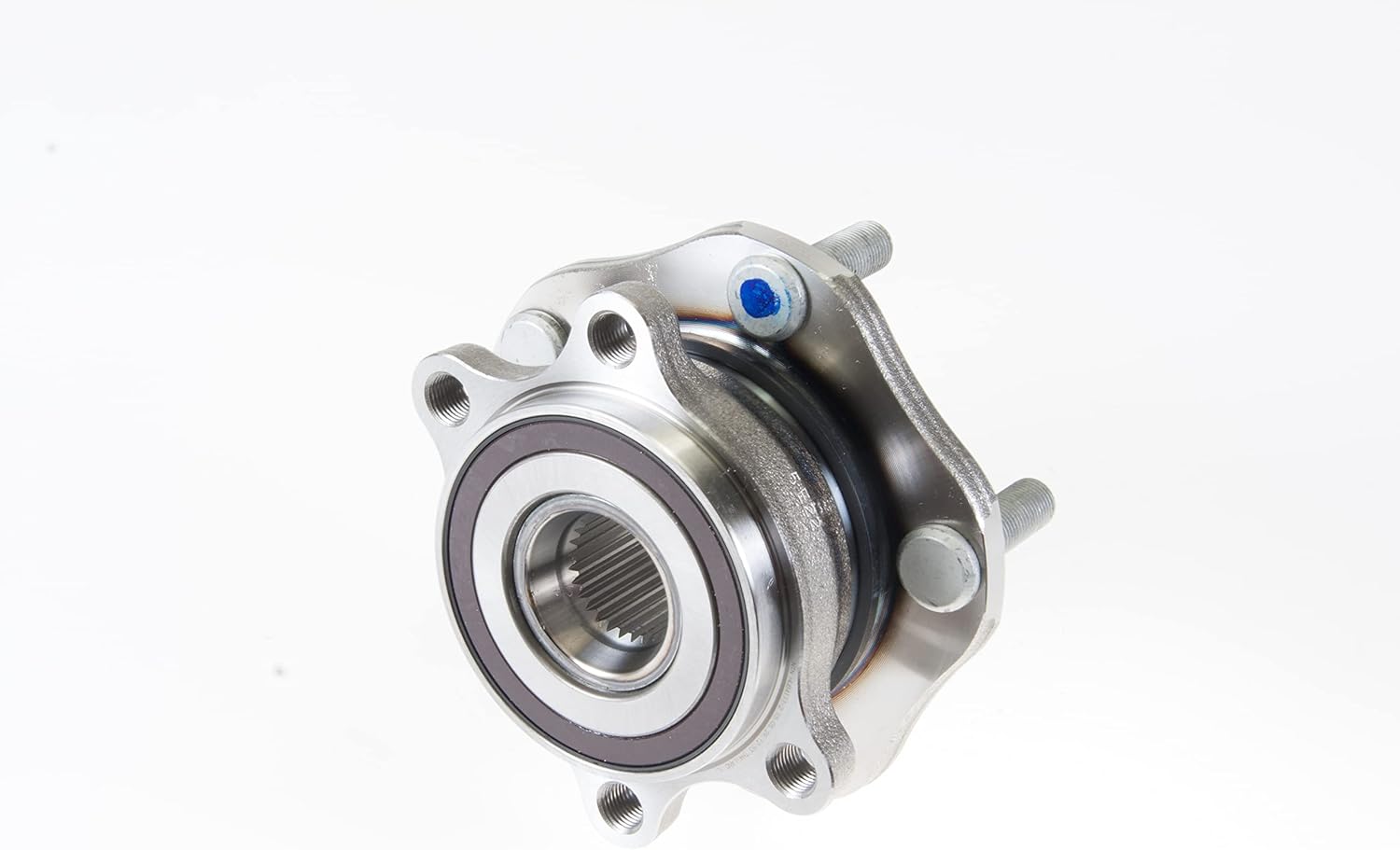

FAG 103341 Generation 3 Wheel Bearing and Hub Assembly

The FAG 103341 is a Generation 3 wheel bearing and hub assembly engineered by Schaeffler for superior performance and reliability. This advanced bearing unit features double-row angular contact ball bearings in a compact, non-serviceable design that integrates the wheel hub and axle mounting in a single sealed unit.

Key Features:

• Generation 3 design with dual flanges - one serves as the wheel hub, the other secures the bearing to the axle carrier
• Double-row angular contact ball bearings for maximum load capacity and durability
• Pre-greased and maintenance-free with factory-sealed construction
• Orbitally formed shoulder ensures proper bearing clearance and reduces assembly errors
• Radial splined inner ring for driven axle applications
• Axial face spline technology reduces CO2 emissions and increases torque transfer
• Pre-set bearing clearance eliminates adjustment requirements
• Compact, non-disassembled unit for simplified installation

This wheel bearing assembly is designed for both driven and non-driven axles and requires no special tools for installation. The sealed, pre-greased design ensures long service life while reducing friction, noise, and vibration. Simply follow manufacturer torque specifications and use all supplied hardware for proper installation.
