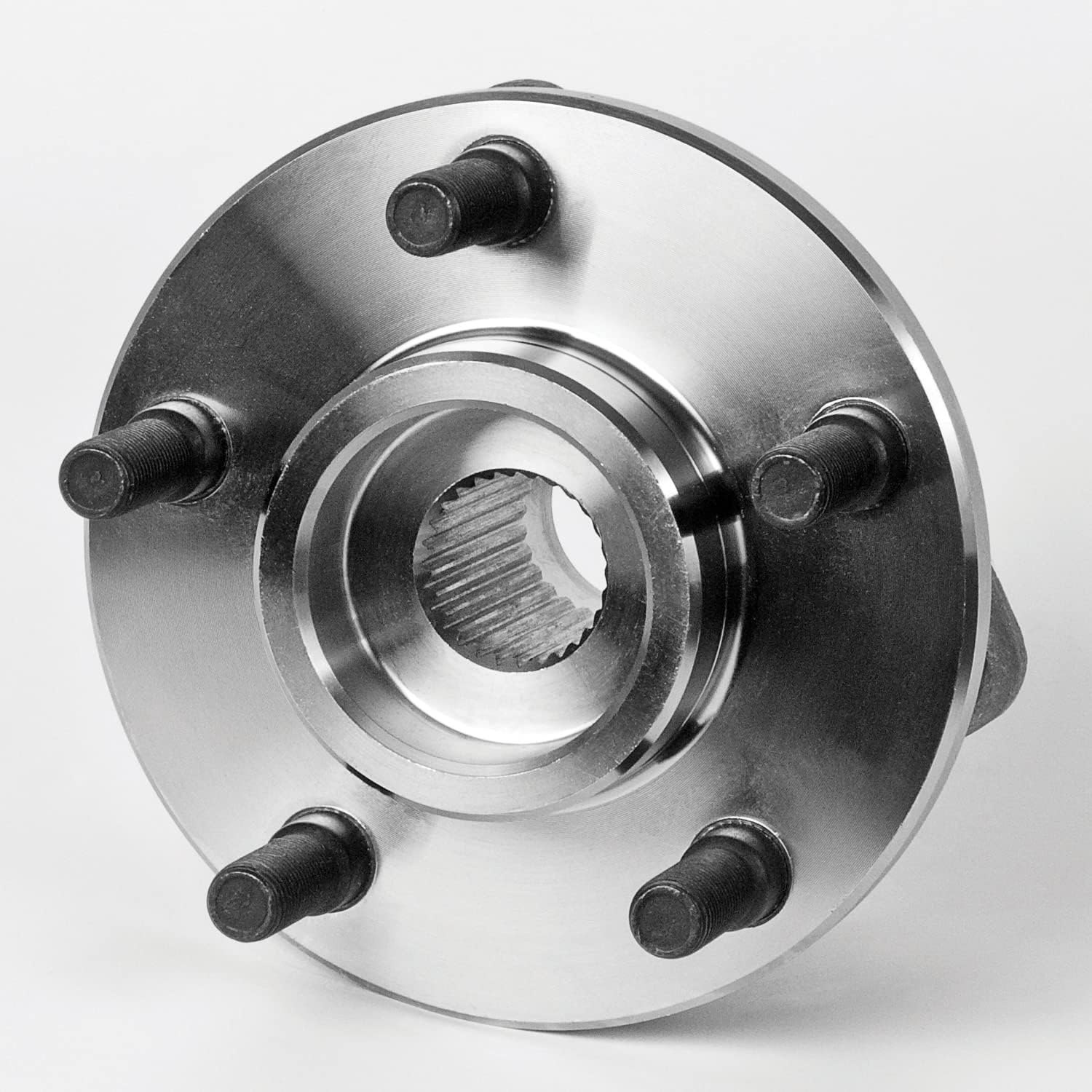

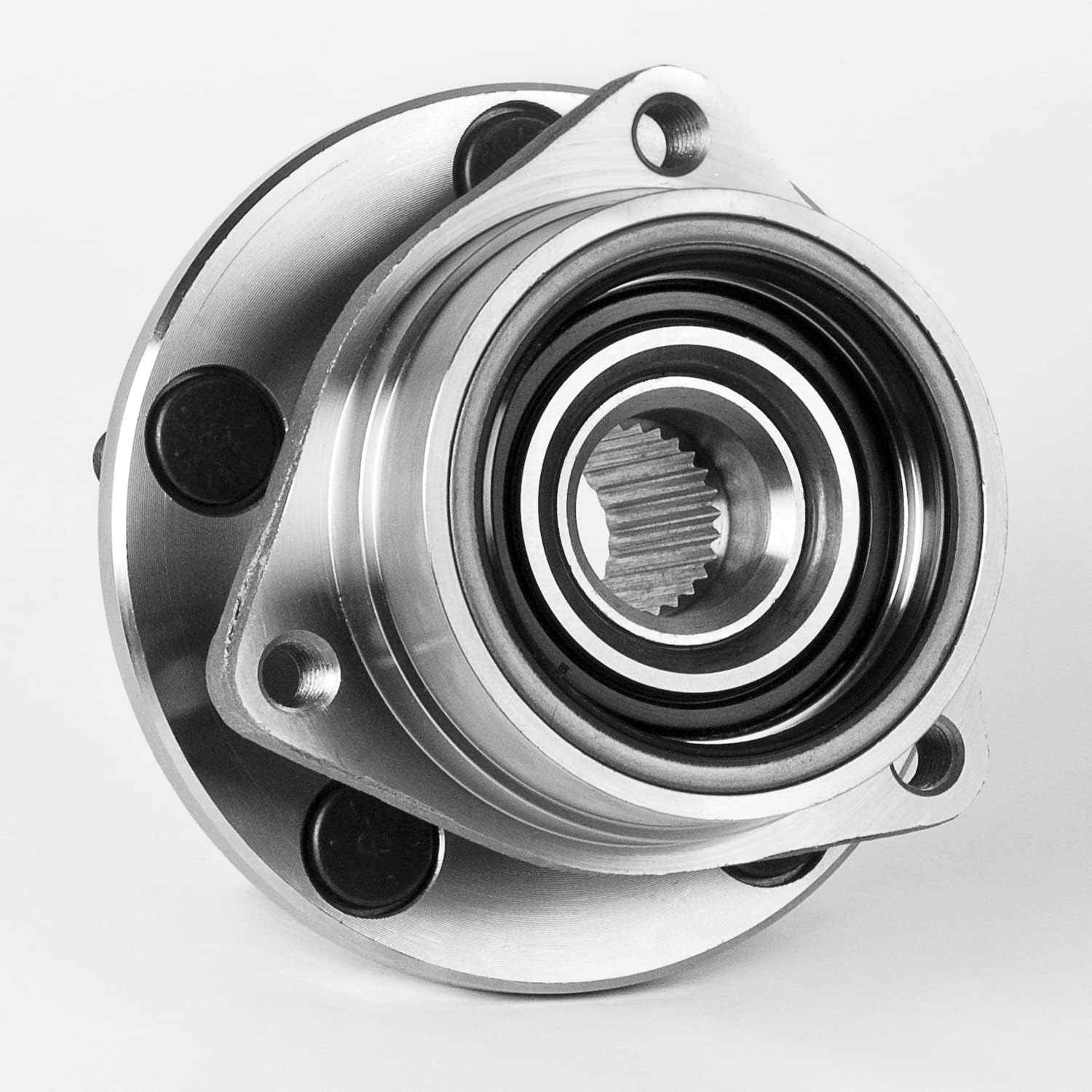

FAG 102024 Generation Wheel Bearing Hub Assembly - 3

The FAG 102024 is a Generation 3 wheel bearing hub assembly featuring advanced double-row angular contact ball bearings designed for modern automotive applications. This precision-engineered unit from Schaeffler provides superior performance for both driven and non-driven axles on cars, trucks, SUVs, and vans.

Key Features:

• Double-row angular contact ball bearing design for maximum load capacity
• Compact, non-disassembleable unit with two flanges - one serves as wheel hub, the other secures to axle carrier
• Pre-greased and sealed for maintenance-free operation throughout service life
• Pre-set bearing clearance for optimal performance out of the box
• Orbitally formed shoulder ensures solid connection between hub and bearing rings while reducing assembly errors
• Radial splined inner ring for driven wheel applications
• Axial face spline technology increases transferable torque and improves driving dynamics while reducing CO2 emissions
• No special tools required for installation or removal - simplified repair process

This Generation 3 wheel bearing represents the latest in bearing technology, offering enhanced durability, reduced friction, and improved noise characteristics compared to earlier designs. The sealed construction protects against contamination while the pre-greased design eliminates maintenance requirements. Installation is straightforward - simply observe manufacturer-specified tightening torques and use all supplied accessory parts for secure seating.

Cross Reference: OEM 1524926 (Renault Trucks 7401524926, Volvo 1524926)
