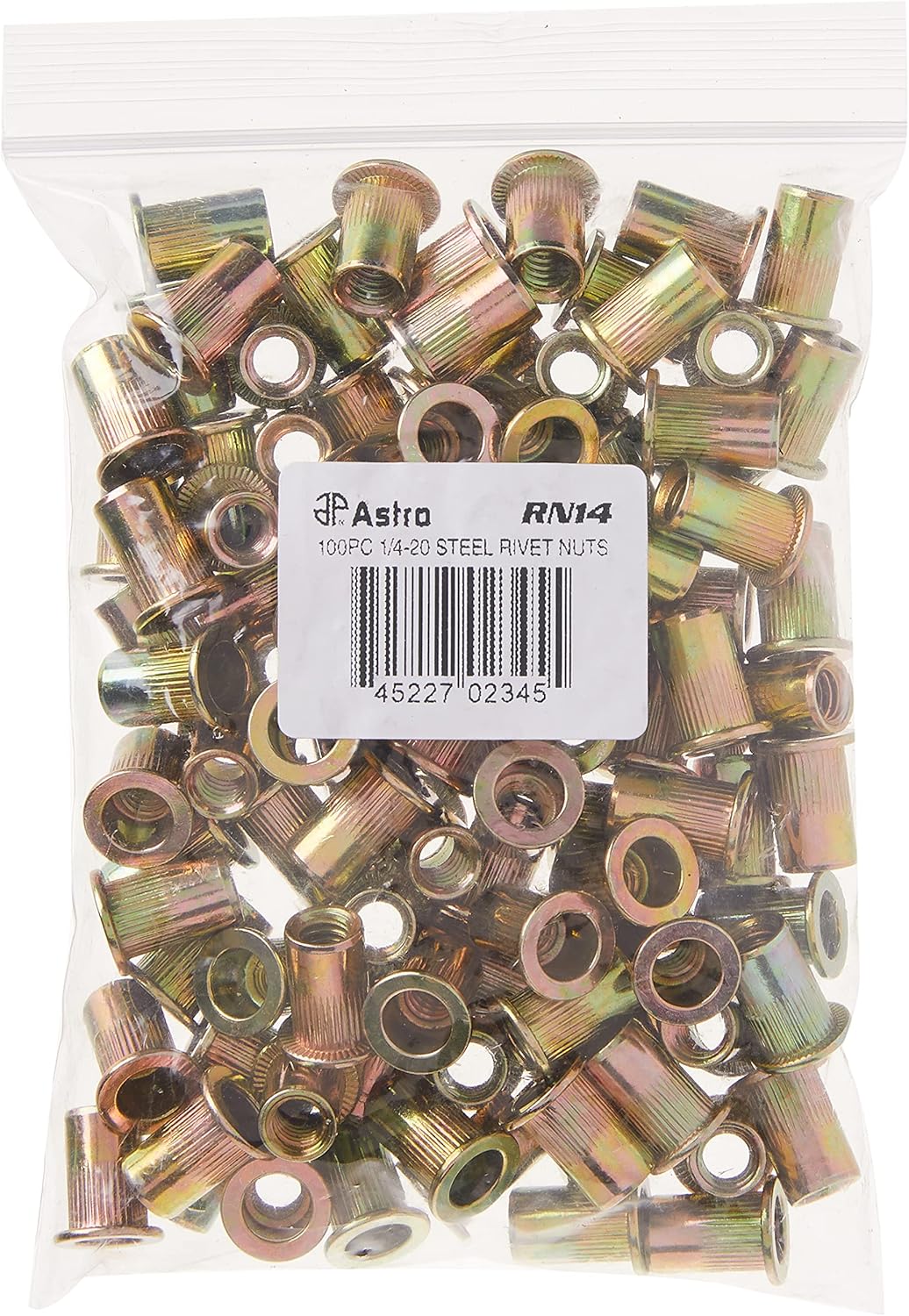

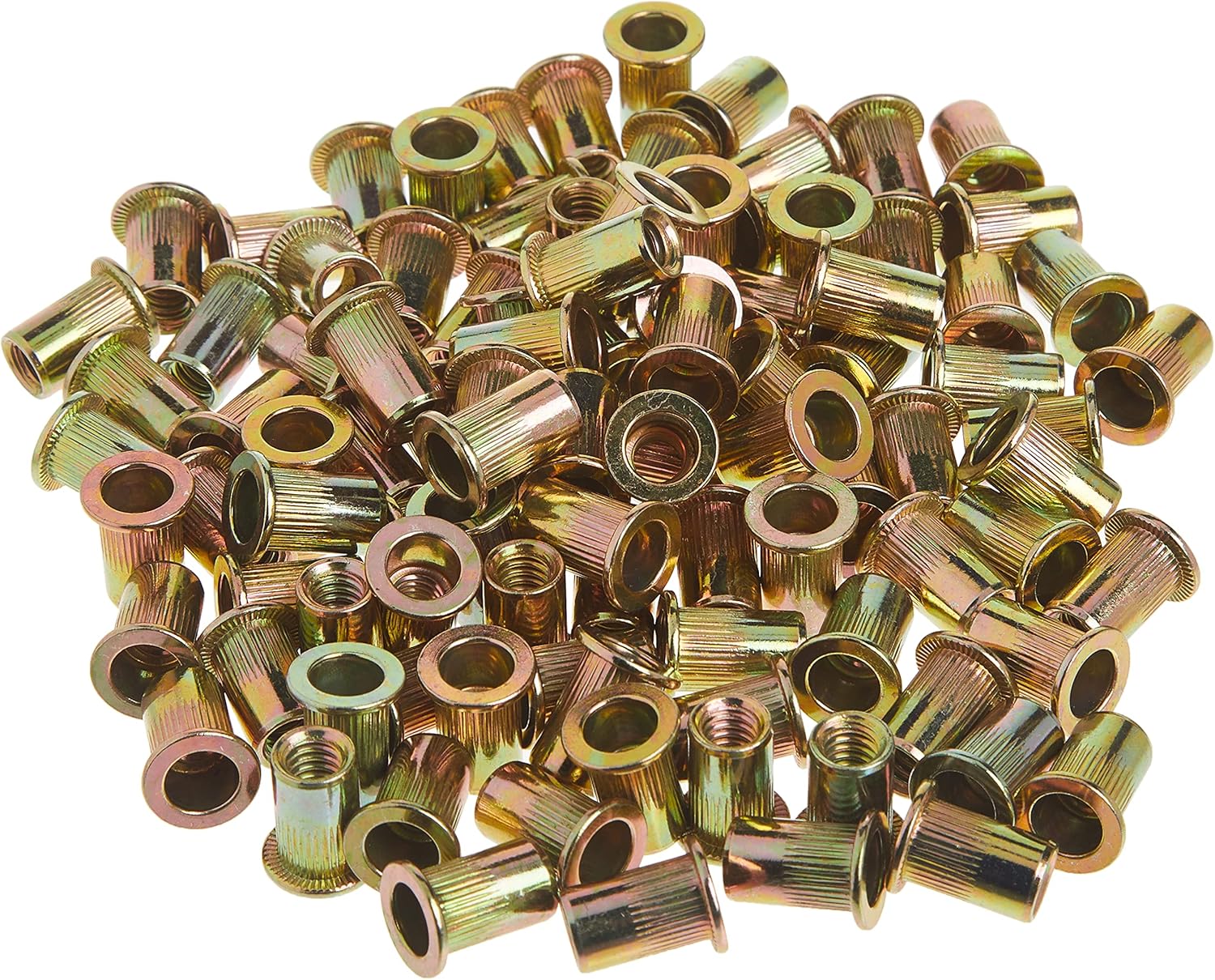

Astro Tools RN14 Steel Rivet Nuts Zinc Plated - 100-Piece 1/4-20

The Astro Tools RN14 rivet nuts provide a reliable threaded fastening solution for thin sheet metal applications. This 100-piece pack features high-quality zinc-plated knurled steel construction that resists corrosion while ensuring excellent grip and holding power in the parent material.

Key Specifications:

• Thread size: 1/4-20 UNC standard thread pitch

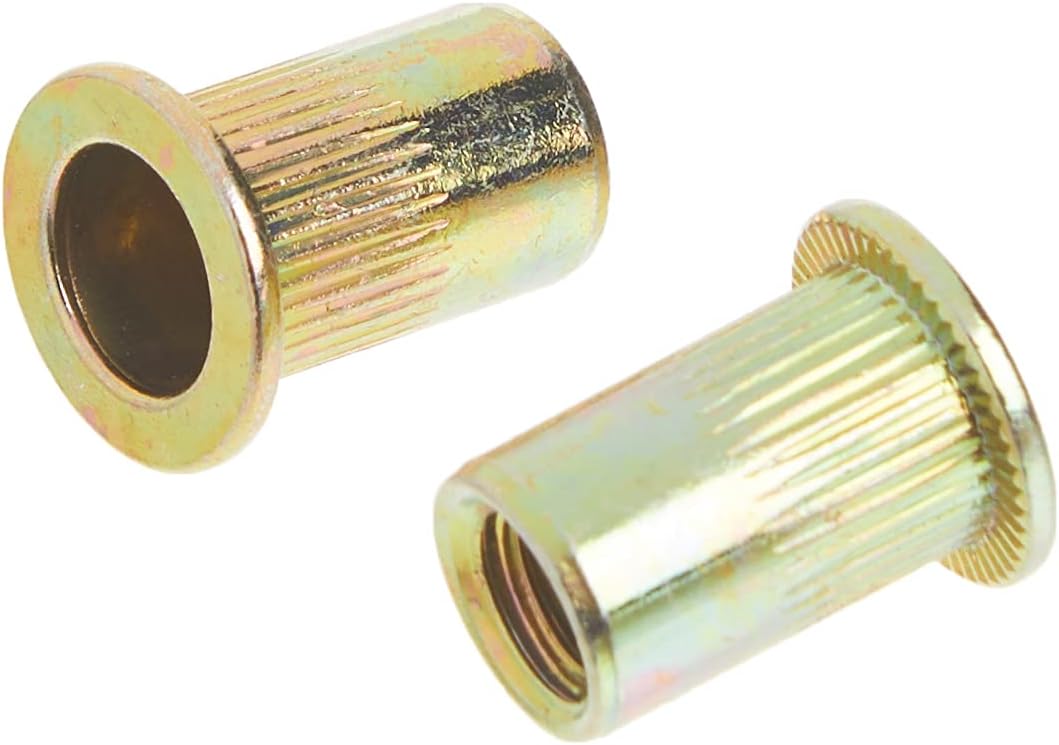

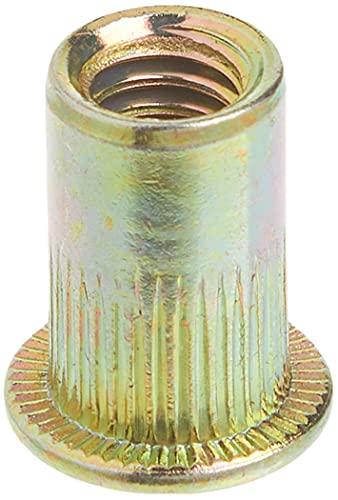

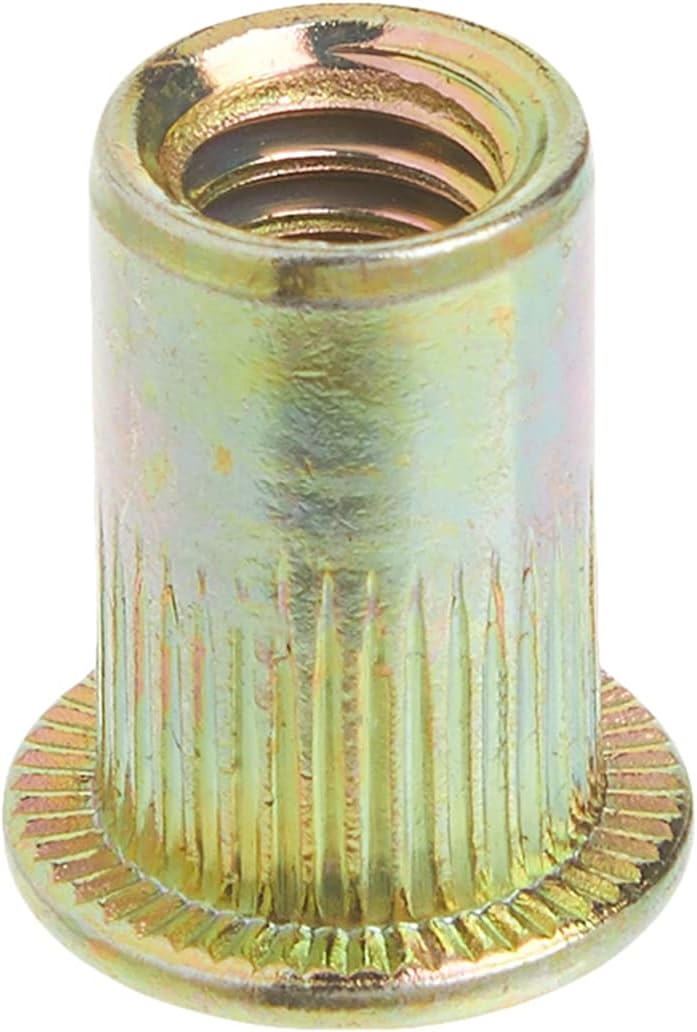

• Outside diameter: 8.9mm with knurled body for superior grip
• Overall length: 15mm
• Flange diameter: 12.4mm
• Flange thickness: 1.4mm
• Required drill hole: 9mm (3/8")
• Sheet metal grip range: 26 gauge to 13 gauge
• Zinc-plated finish for corrosion resistance

Compatibility:

These rivet nuts are designed for use with Astro's PRN Series pneumatic rivet nut setting tools, as well as the Astro 1427 and 1442 handheld rivet nut setters. They are also compatible with most standard rivet nut installation tools from other manufacturers.

Applications:

Ideal for creating strong, reusable threaded connections in sheet metal, tubing, plastic, and composite materials where access to only one side is available. Commonly used in automotive, marine, RV, and general metal fabrication applications.
