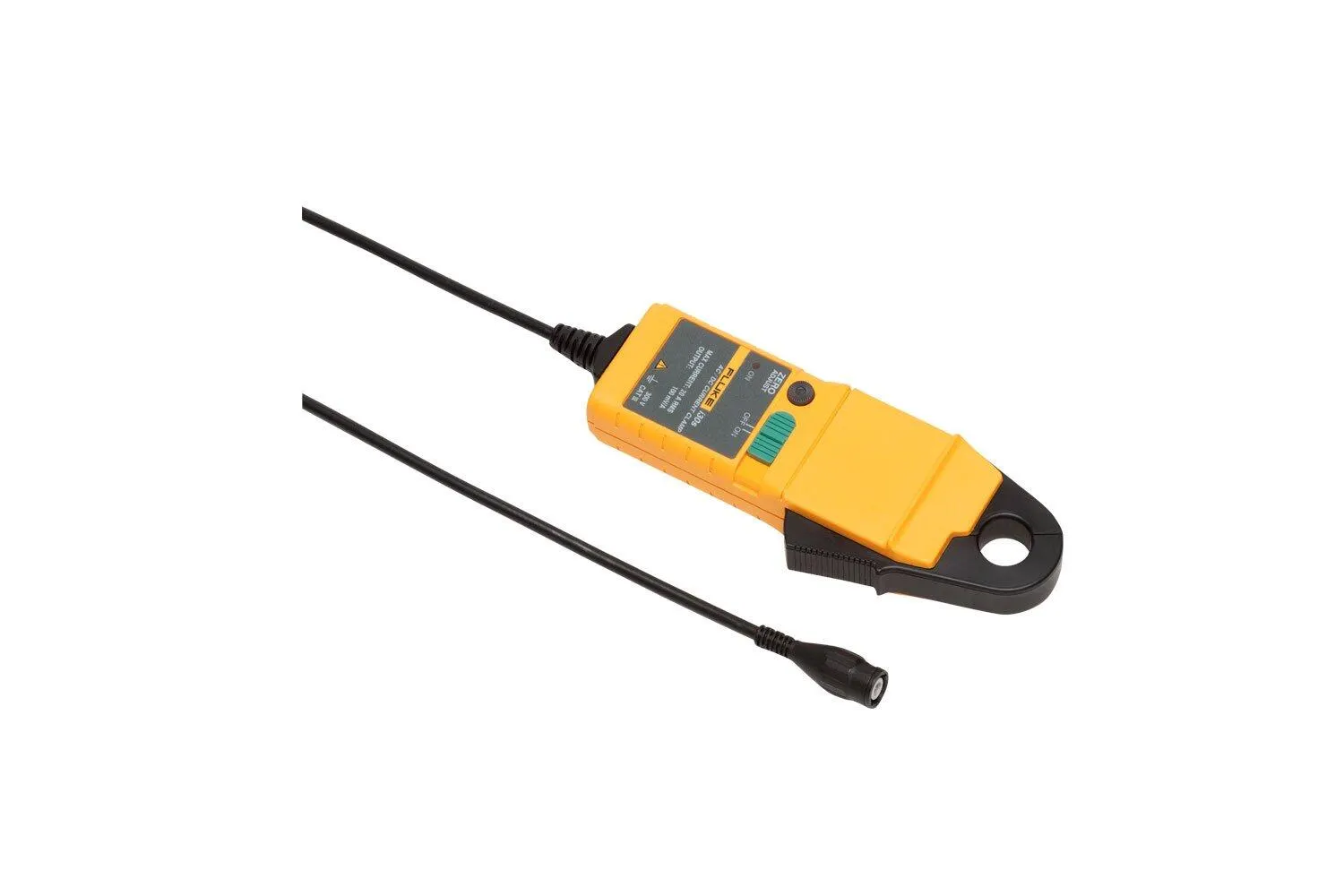

Fluke 2584935 AC/DC Current Clamp Hall Effect Sensor Ammeter - i30s 30mA-30A

The Fluke i30s AC/DC Current Clamp (Model 2584935) is a precision Hall Effect sensor-based measurement tool designed for non-intrusive current monitoring in electrical testing and diagnostic applications. This versatile clamp works seamlessly with oscilloscopes, multimeters, and other recording instruments to provide accurate current measurements without breaking the circuit.

Current Measurement Capabilities:

• AC current range: 50mA to 20A RMS
• DC current range: 30mA to 30A
• Frequency response up to 100 kHz for high-speed circuit analysis
• Measurement accuracy: ±1%

Key Features:

• Hall Effect technology enables both AC and DC current measurement
• Output signal: 100mV per amp for easy interpretation
• 2-meter cable with BNC connector for universal compatibility
• Manual zero error adjustment via thumbwheel for optimal accuracy
• Accommodates conductors up to 19mm diameter (120mm² cross-section)
• 30-hour battery life for extended use

Safety and Specifications:

• CAT III 300V safety rating for protected branch circuit applications
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 85°C (-4°F to 185°F)
• IEC 61010 compliant

Ideal for power quality analysis, equipment troubleshooting, and electrical system diagnostics, the Fluke i30s current clamp provides reliable, accurate measurements in demanding professional environments.
