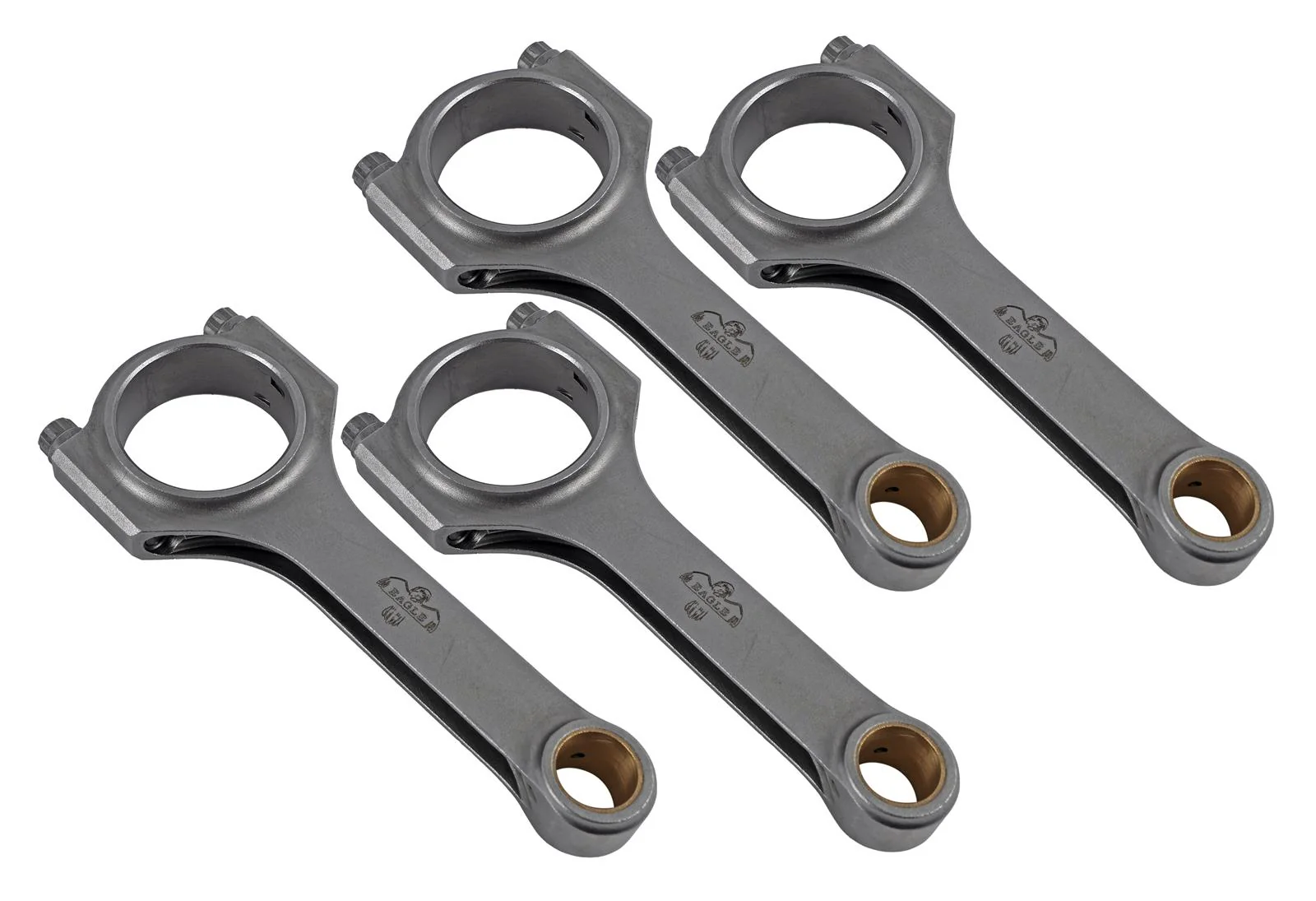

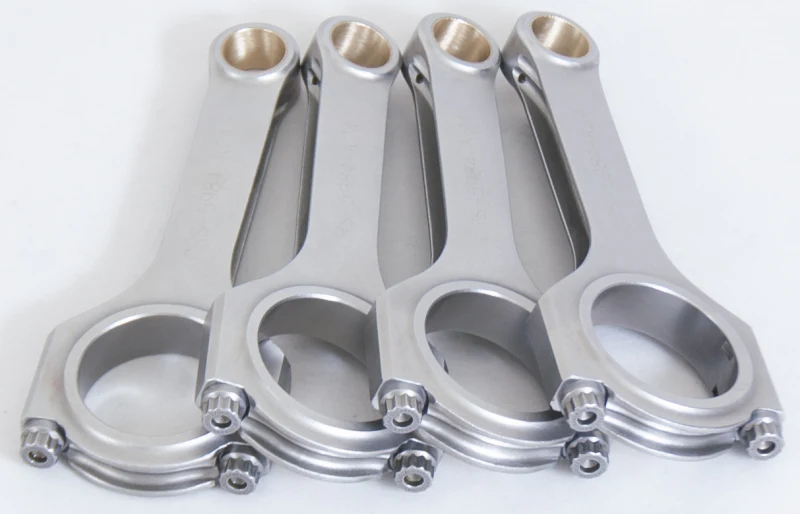

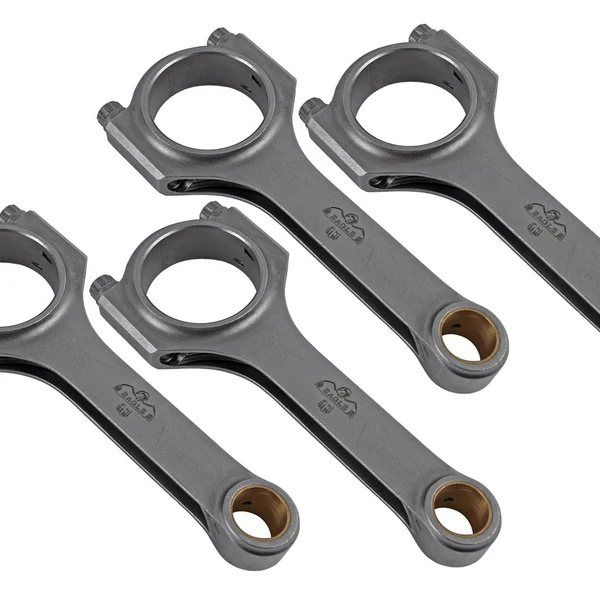

Eagle CRS5819T3D-1 H-Beam Connecting Rod for Toyota 22R 5.819"

The Eagle CRS5819T3D-1 is a high-performance H-beam connecting rod engineered specifically for Toyota 22R engines. Constructed from forged, vacuum-degassed 4340 steel, this connecting rod delivers exceptional strength while maintaining a lighter weight compared to stock components, making it ideal for both street and performance applications.

Advanced Manufacturing Process:

• Two-piece forged 4340 steel construction for superior fatigue resistance
• Multi-stage heat treatment for optimal strength characteristics
• 100% machined surfaces with precision tolerances
• X-rayed, sonic-tested, and magnafluxed for quality assurance
• Shot-peened finish to stress-relieve the metal and enhance durability

Key Specifications:

• Center-to-center length: 5.819 inches
• Rod journal diameter: 2.086 inches
• Wrist pin diameter: 0.866 inches
• Pin end width: 1.0915 inches
• Big end width: 1.091 inches
• Housing bore: 2.205 inches
• Typical weight: 680 grams
• Equipped with 3/8" ARP 2000 series rod bolts

Design Features:

• Precision cap alignment sleeves for positive rod cap location
• Silicon bronze bushings for full-floating piston pin design
• H-beam profile optimizes strength-to-weight ratio
• Weight-matched for balanced engine operation

Eagle Specialty Products is recognized as a leading manufacturer of high-performance connecting rods and crankshafts. Each rod undergoes rigorous quality control testing to ensure it meets the demanding standards required for competitive motorsports and high-performance street applications. The CRS5819T3D-1 represents decades of engineering excellence and continuous improvement in materials and manufacturing techniques.
