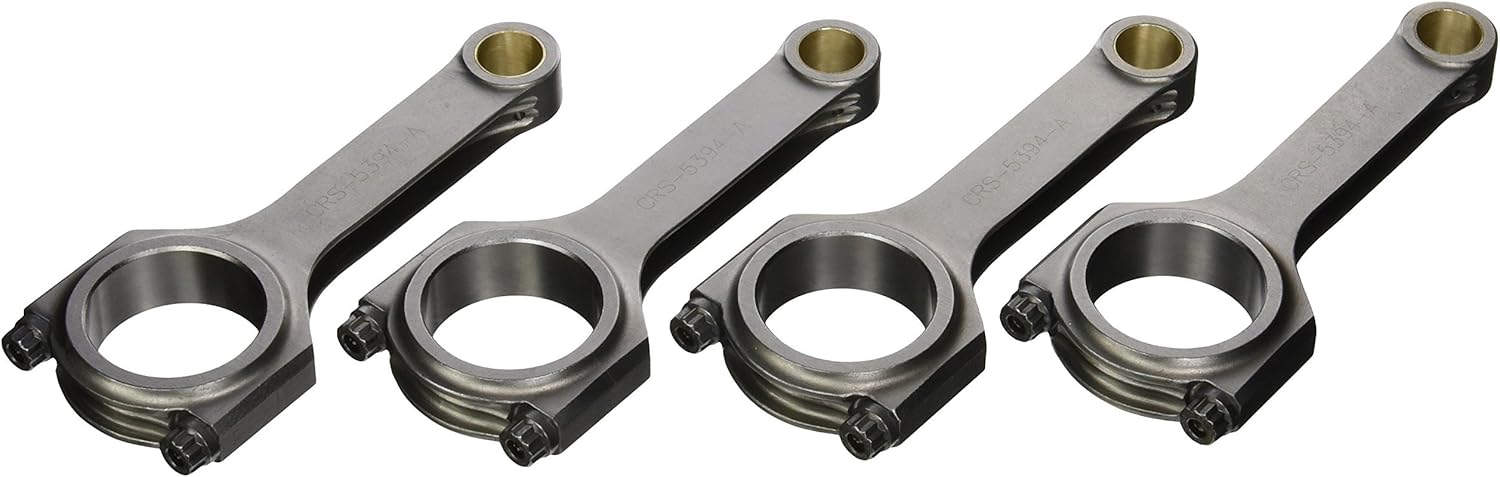

Eagle CRS5394H3D-1 H-Beam Connecting Rod 5.394" for Honda D16

The Eagle CRS5394H3D-1 is a high-performance H-beam connecting rod engineered for Honda D16 and ZC engines. Forged from vacuum-degassed SAE 4340 steel, this single connecting rod delivers exceptional strength while maintaining significantly lower weight compared to stock components, making it ideal for high-performance and racing applications.

Construction and Quality:

• Forged from certified SAE 4340 steel with enhanced nickel and chrome content for superior strength and fatigue resistance
• Two-piece forging process with grain structure optimized to follow the connecting rod shape
• Multi-stage heat treatment, X-ray inspection, sonic testing, and magnaflux inspection ensure quality
• Shot-peened finish to stress-relieve the metal and extend service life
• 100 percent CNC machined for precise tolerances

Features and Specifications:

• 5.394-inch center-to-center length
• H-beam profile for optimal strength-to-weight ratio
• Weight: 535 grams
• ARP 2000 series rod bolts (230,000 psi tensile strength) with cap screws
• Precision cap alignment sleeves for positive rod cap location
• Silicon bronze bushings for floating pin design
• Sized using the Sunnen Krossgrinding system for perfect housing bore
• Weight matched to +/- 1 gram when purchased as a set

Performance:

• Rated for engines producing up to 750-900 horsepower
• Designed for high-RPM performance with reduced rotating mass
• Suitable for naturally aspirated and forced induction applications

This connecting rod is sold individually and is compatible with 1988-2000 Honda Civic, 1988-1991 Honda CRX, 1993-1997 Honda Del Sol, and 1994-2001 Acura Integra equipped with D16 engines.
