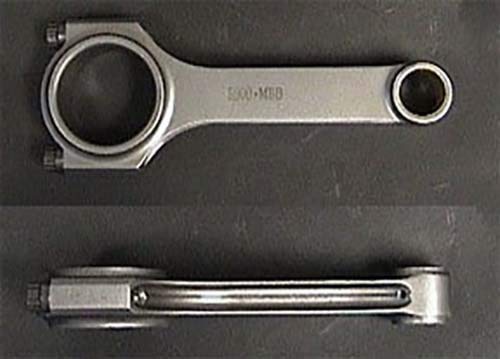

Eagle CRS5680N3D-1 H-Beam Connecting Rod Single Nissan - VQ35DE

The Eagle CRS5680N3D-1 is a high-performance H-beam connecting rod designed for Nissan VQ35DE engines found in applications like the 350Z and Infiniti G35. This single replacement rod is engineered for competition use and capable of supporting up to 850 rear-wheel horsepower.

Premium Construction:

• Forged from SAE 4340 steel for superior strength and durability
• Two-piece forging process forces grain into the shape of the connecting rod for improved fatigue life
• Rod cap forged separately with grain running perpendicular to load forces
• Fully machined and shot-peened surface finish for stress relief
• Multi-stage heat-treated, X-rayed, sonic-tested, and magnafluxed for quality assurance

Technical Specifications:

• Center-to-center length: 5.680 inches
• Rod weight: 555 grams
• Big end bore diameter: 2.1670 inches
• Pin end bore diameter: 0.866 inches
• Big end width: 0.815 inches
• Pin end width: 0.820 inches
• ARP 2000 alloy 3/8-inch rod bolts with 200,000 psi tensile strength
• Silicon bronze bushings for floating pin applications
• Precision cap alignment sleeves for positive rod cap location

Installation Notes:

Rod bolts should be torqued to 43 ft-lbs using ARP moly lube only. Sizing is held to exact tolerances using the Sunnen Krossgrinding system for a perfect housing bore. When ordering, specify the weight required if matching to an existing set.

This single connecting rod is ideal for replacing a damaged rod in an existing Eagle set or for custom engine builds requiring precise weight matching. Eagle Specialty Products is recognized as the largest aftermarket connecting rod manufacturer in the world, trusted by professional engine builders for demanding applications.
