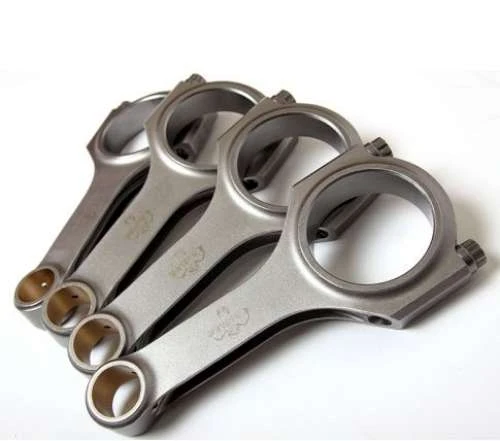

Eagle CRS5428T3D-1 H-Beam Connecting Rod - Single

The Eagle CRS5428T3D-1 is a single high-performance H-beam connecting rod designed for Toyota 3SGTE turbocharged engines. Forged from certified SAE 4340 chromoly steel and vacuum-degassed for superior strength, this connecting rod delivers exceptional durability while weighing significantly less than stock components.

Key Features:

• 5.428-inch center-to-center length
• Forged 4340 chromoly steel construction with precision-controlled alloying elements
• H-beam design for optimal strength-to-weight ratio
• Multi-stage heat treatment, X-rayed, sonic-tested, and magnafluxed for quality assurance
• 100% fully machined and shot-peened surface finish to relieve stress
• ARP 2000 series 3/8-inch rod bolts rated at 200,000 PSI tensile strength
• Precision cap alignment sleeves for positive cap location
• Silicon bronze bushings for floating pin applications
• 1.889-inch rod journal diameter
• 0.866-inch pin bore diameter
• 1.055-inch big end width
• Approximate weight: 530-555 grams

This single rod is ideal for replacement purposes or when building custom weight-matched sets. Recommended for competition engines producing up to 900 horsepower. Torque specification is 43 ft-lbs with ARP moly lube on threads. Each rod undergoes rigorous quality control through Eagle's proprietary manufacturing process, including Sunnen Krossgrinding for perfect housing bore dimensions.

Note: Sold individually. Rod bolt lubrication and instructions included with full sets.
