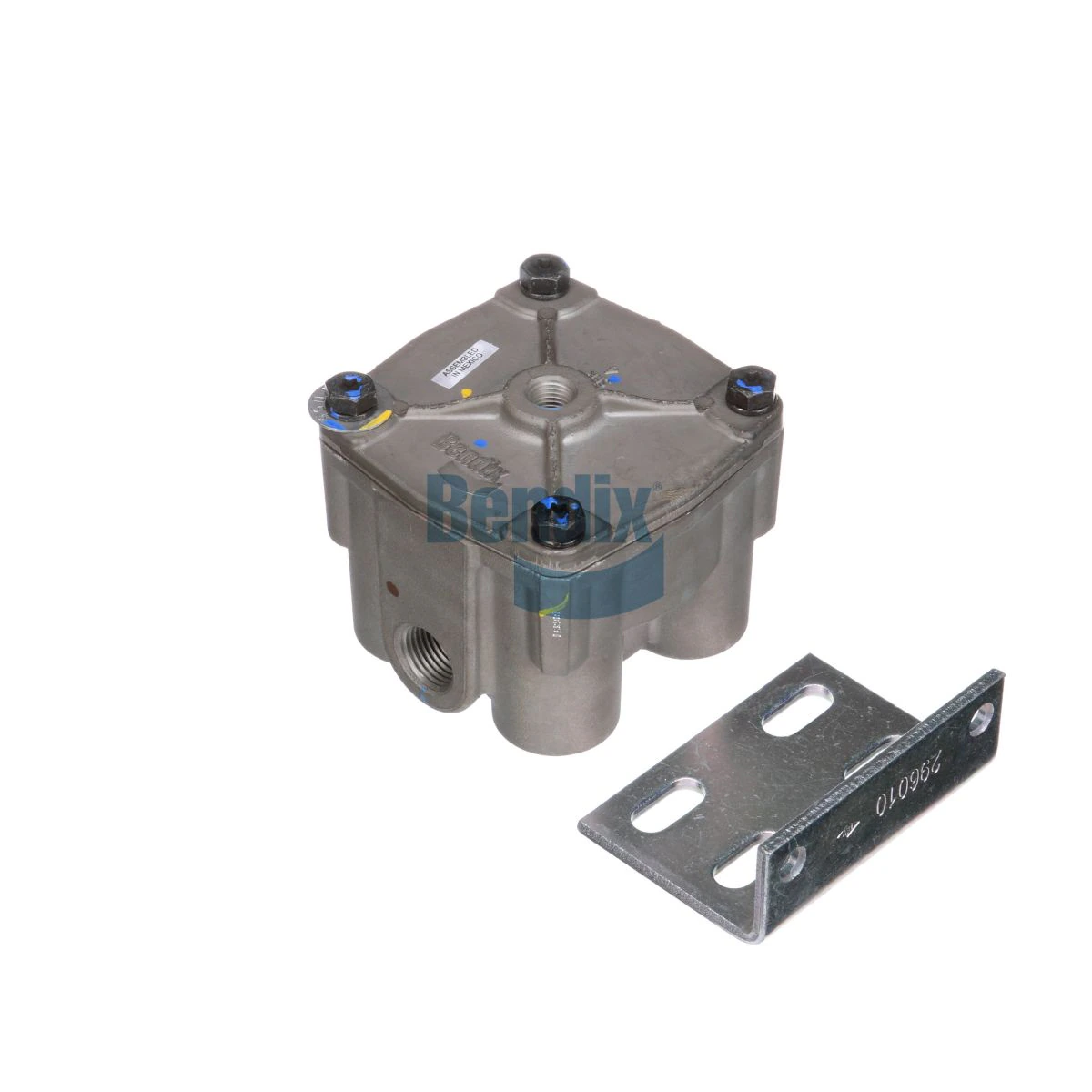

Bendix 065181 R-12 Air Brake Relay Valve with Vertical Delivery Ports

The Bendix 065181 is an R-12 air brake relay valve designed for medium and heavy-duty commercial vehicles, including trucks, tractors, trailers, and buses. This relay valve functions as a relay station within the air brake system to speed up the application and release of the brakes, delivering consistent and reliable braking performance.

Key Features:

• Vertical delivery port configuration for flexible installation
• 5.5 PSI crack pressure for optimal brake engagement
• Four 1/2" NPT delivery ports for brake chamber connections
• 1/4" control/service ports for precise air pressure control
• 1/2" NPT supply port for reservoir connection
• Operates as a remote-controlled brake valve that delivers or releases air to brake chambers in response to control signals
• Typically mounted at the rear of the vehicle in proximity to the brake chambers it serves
• Designed for reservoir or frame mounting with universal bracket compatibility

The relay valve enhances safety and reliability by providing consistent and accurate air pressure control throughout the braking system. It minimizes the risk of brake fade and ensures dependable operation across a wide range of operating conditions. Bendix, a member of the Knorr-Bremse Group, is a trusted leader in commercial vehicle air brake technology and active safety systems.

Cross-Reference Numbers: 107284, 107285, 109044, A86473, A86473X, RA86473, BW065181, BX065181, ZAC065181, S-13988, 802809
