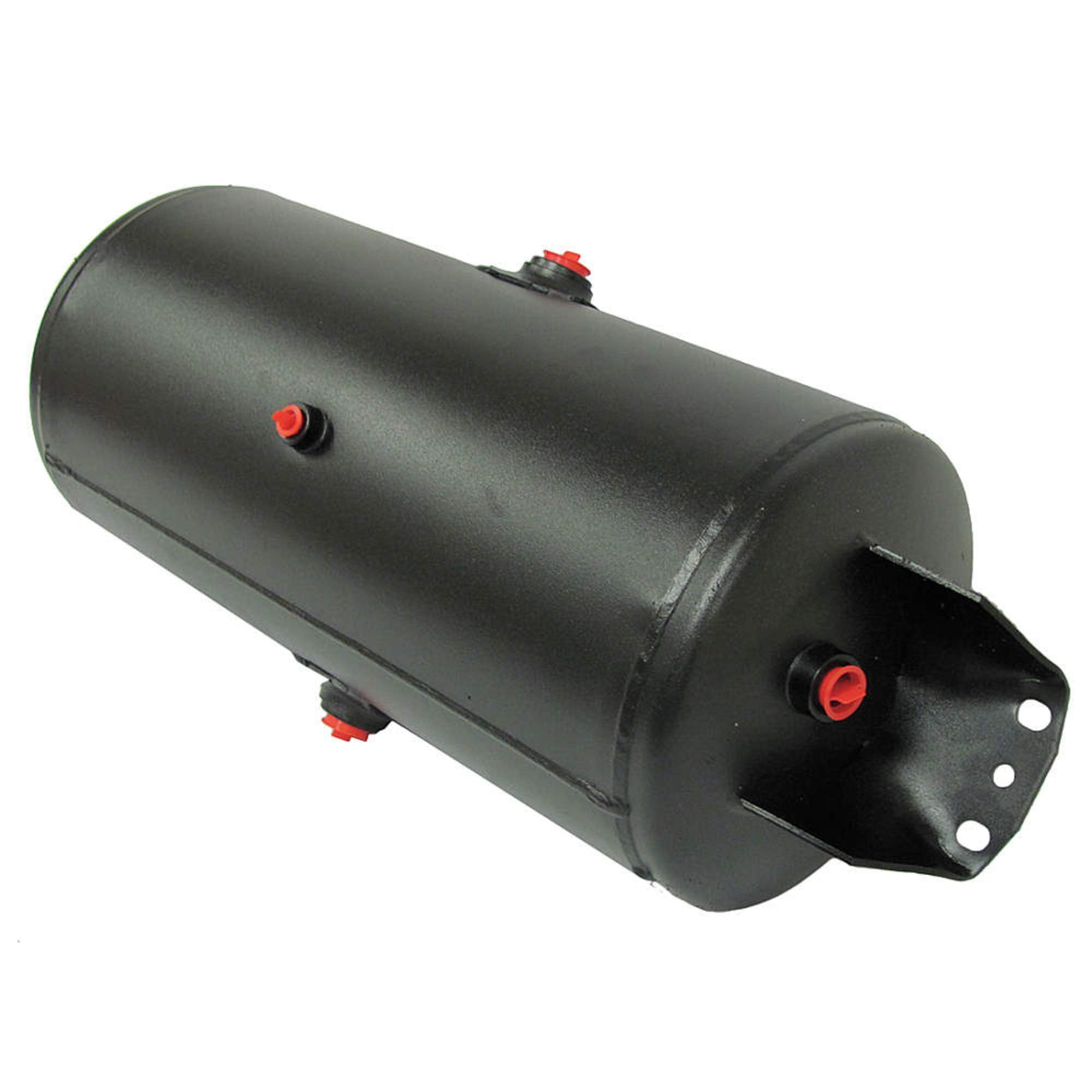

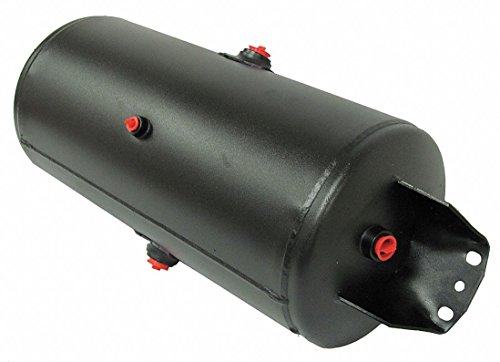

Velvac 035104 Flange Mounted Air Brake Tank 9.5" Diameter 1488 Cubic Inch

The Velvac 035104 is a flange-mounted air brake tank designed for heavy-duty commercial vehicles and trucks. With a 1488 cubic inch capacity (6.44 gallons) and 9.5-inch diameter, this horizontal air tank provides reliable compressed air storage for air brake systems.

Key Features:

• All-steel construction for exceptional durability and long service life
• Dual main ports with multiple port sizes: 3/4" FPT (B & D ports), 1/4" FPT (E port), and 3/8" FPT (A & F ports)
• 125 PSI working pressure rating for reliable performance
• Water tested prior to shipping to ensure leak-proof operation
• Rust resistant and primer sealed with dipped coating for corrosion protection
• Internally corrosion resistant for extended tank life
• SAE J10 compliant meeting industry standards for air brake systems

Specifications:

• Capacity: 1488 cubic inches (6.44 gallons)
• Dimensions: 9.5" diameter x 22.5" length
• Working Pressure: 125 PSI
• Mounting: Flange mount
• Construction: All-steel
• Weight: 22.75 lbs

Velvac Type-4 air tanks are engineered for commercial vehicle applications where reliable compressed air storage is critical. The flange-mounted design allows for secure installation in various mounting configurations. Each tank undergoes rigorous water testing before leaving the factory to guarantee long-term leak-proof performance.
