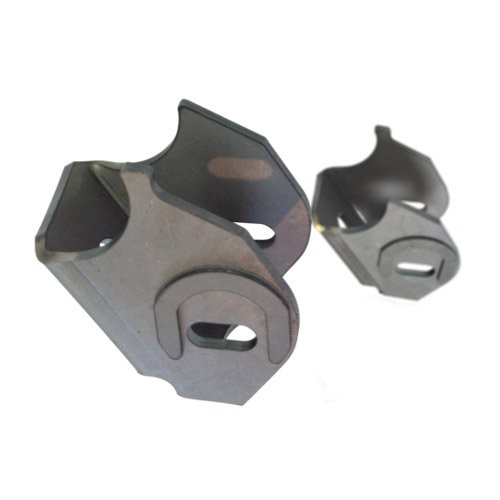

Artec Industries BR1137 JK Rear Lower Control Arm Brackets with Integrated Skid Plates

Replace your bent and mangled factory Jeep JK rear lower control arm brackets with these heavy-duty welded replacements from Artec Industries. Engineered from 1/4 inch thick boxed steel plate, these brackets provide superior strength and impact resistance compared to the factory sheet-metal design.

Key Features:

• Integrated skid plate wraps around the bottom of the bracket to protect joints from direct impact and reduce premature wear
• 2.625 inch mounting width accommodates common cartridge joints (Johnny Joint, Flex Joint, Ballistic Joint) and factory control arm bushings
• Extended wrap-around design provides increased weld surface area on the axle tube for superior mounting strength
• Factory-height shock mounts maintain full suspension up-travel without restriction
• Provides mounting points for lower control arms, shocks, and sway bar in one integrated bracket
• Custom-fabricated appearance delivers a high-end, one-off look
• Skid plate design protects joints without limiting articulation or movement

These brackets are designed for 3.5 inch diameter axle tubes and require removal of factory brackets and welding to the axle housing. Professional installation by a qualified welder is recommended. Sold as a pair.

Installation Note: Welding to axle housing required. Should be installed by a competent welder. Artec Industries is not liable for incorrect installation or improper welding.
