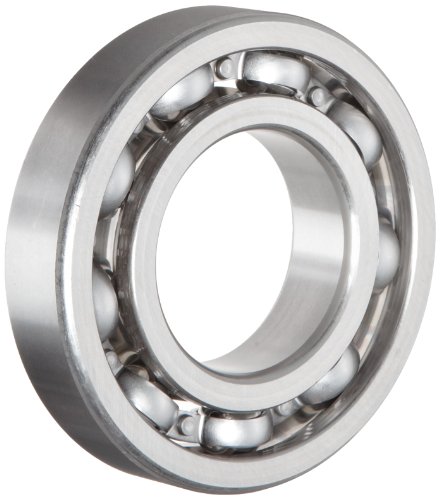

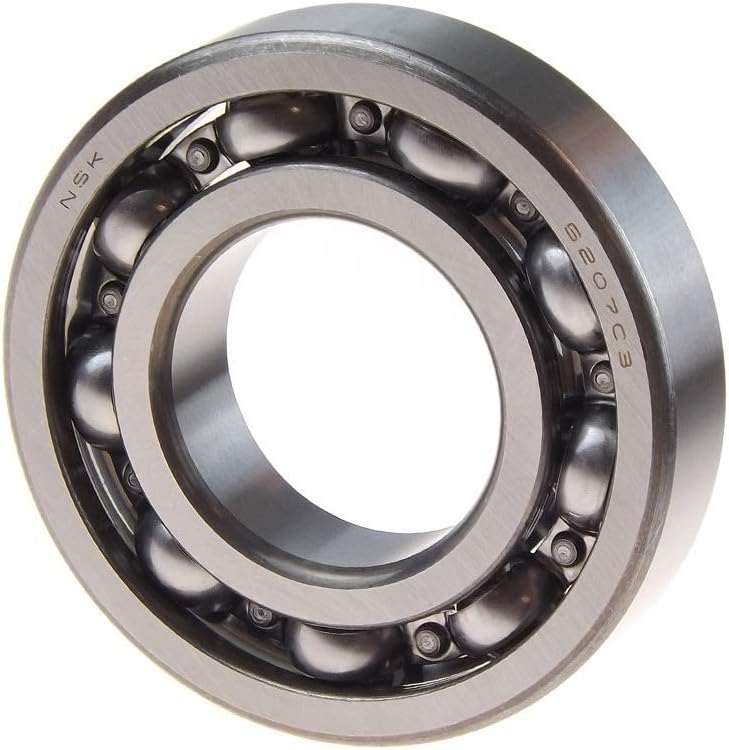

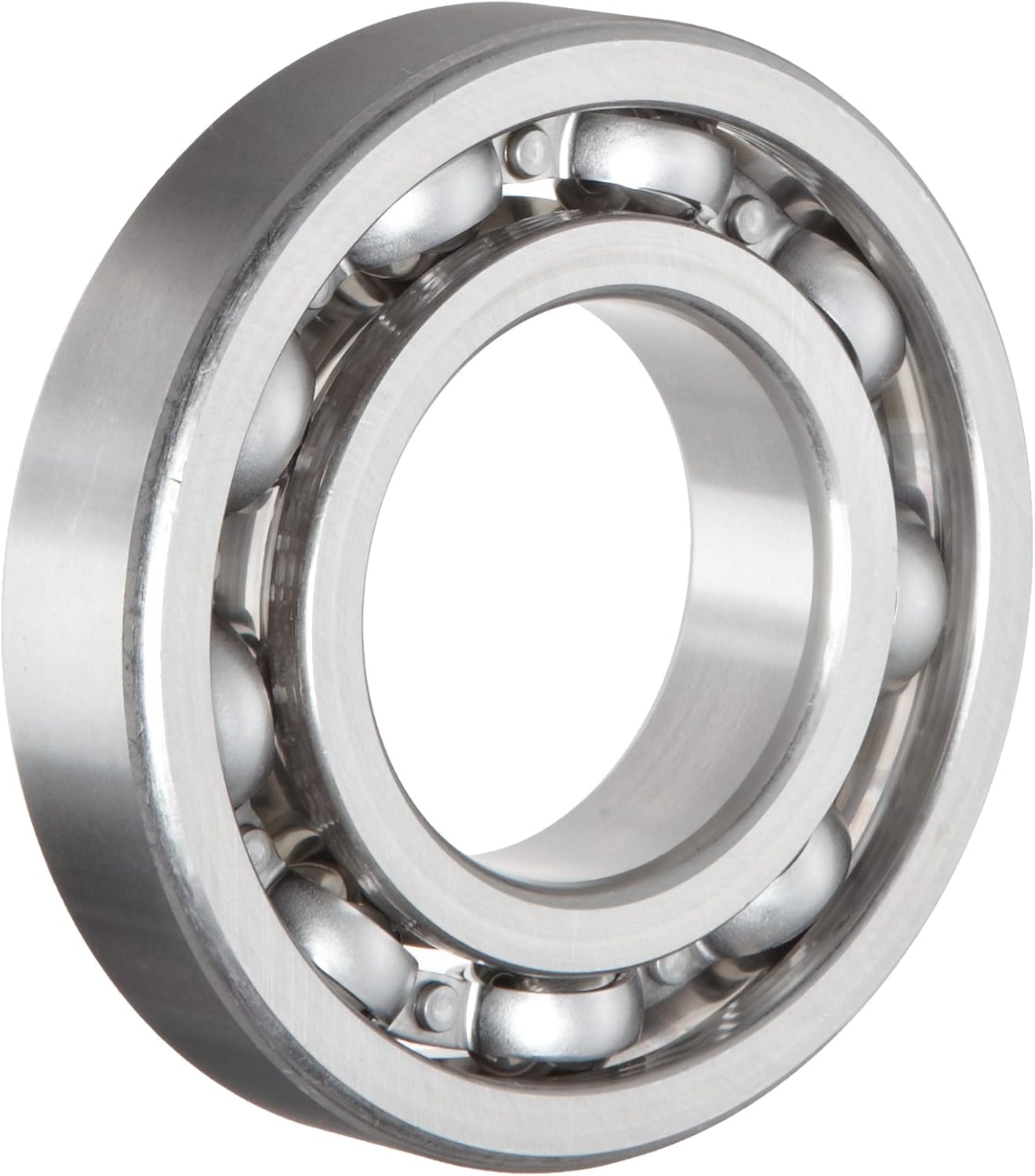

NSK 6207C3 Deep Groove Ball Bearing Single Row C3 Clearance 35mm Bore

The NSK 6207C3 is a high-performance deep groove ball bearing designed for applications requiring increased internal clearance and reliable operation at moderate speeds. This single row bearing features a pressed steel cage construction that provides durability while maintaining proper ball spacing during operation.

Key Specifications:

• Bore Diameter: 35mm
• Outer Diameter: 72mm
• Width: 17mm
• C3 Internal Clearance: Greater than normal clearance for thermal expansion and shaft deflection accommodation
• Open Design: No seals or shields for easy lubrication access
• Maximum Rotational Speed: 9,500 RPM
• Dynamic Load Capacity: 5,778 lbf
• Static Load Capacity: 3,440 lbf

Features and Benefits:

• Deep groove raceway design enables high radial and moderate axial load capacity in both directions
• C3 clearance specification ideal for applications with thermal expansion, interference fits, or shaft misalignment
• Pressed steel cage provides strength and cost-effectiveness for general industrial applications
• Open bearing design allows for field lubrication and maintenance flexibility
• Precision manufactured to meet ISO dimensional and tolerance standards

This bearing is commonly used in electric motors, gearboxes, agricultural equipment, conveyor systems, and general industrial machinery where reliable performance and easy maintenance are required. The C3 clearance makes it particularly suitable for applications involving temperature variations or press-fit mounting conditions.
