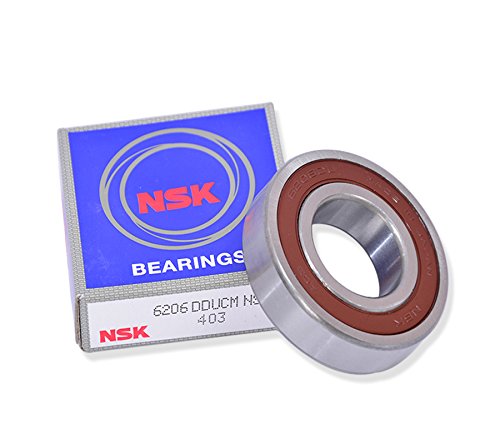

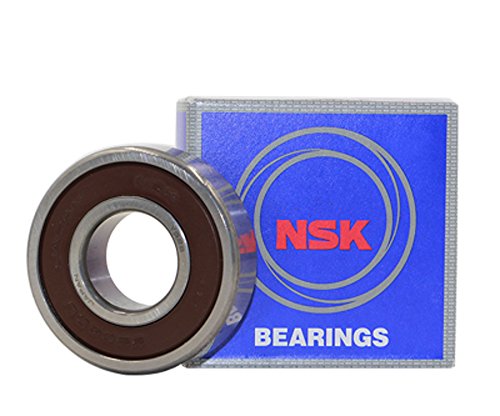

NSK 6206VV Deep Groove Ball Bearing Double Sealed 30mm x 62mm x 16mm

The NSK 6206VV is a single row deep groove ball bearing engineered for reliable performance in a wide range of industrial and automotive applications. This metric bearing features a 30mm bore diameter, 62mm outer diameter, and 16mm width, making it suitable for medium-duty rotating assemblies including wheel hubs, transmissions, and electric motors.

Key Features:

• Double sealed design with non-contact seals protects internal components from contaminants while minimizing friction
• Pressed steel cage provides durability and maintains proper ball spacing during operation
• Normal internal clearance (CN) suitable for standard operating conditions
• Maximum rotational speed of 11,000 RPM for high-speed applications
• Static load capacity of 2,540 lbf and dynamic load capacity of 4,384 lbf
• Precision manufactured to ISO standards for consistent quality and performance

NSK deep groove ball bearings are known for their versatility and long service life. The VV designation indicates the double seal configuration, which makes this bearing ideal for applications exposed to dirt, moisture, or other environmental contaminants. The sealed design retains lubrication and reduces maintenance requirements.
