Relay Control Module

What Is a Relay Control Module?

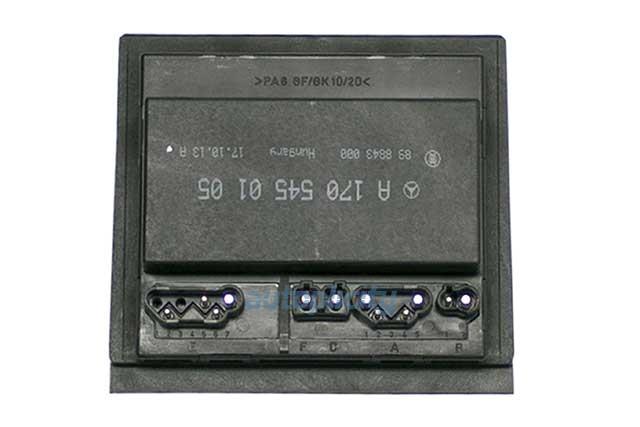

At the heart of a modern vehicle's electrical architecture sits the relay control module — a compact but critical component that bridges the gap between low-power control signals and the high-current circuits that power everything from fuel pumps and cooling fans to lighting systems and ignition. A relay control module uses an electromagnet and a set of contacts to allow a small electrical signal — from your vehicle's ECU, PCM, or a simple switch — to safely activate a much larger electrical load, without exposing sensitive electronics to damaging current levels.

Think of it as an intelligent gatekeeper. Relay control modules regulate when circuits turn on and off, manage power distribution, and isolate delicate control systems from high-voltage surges. This means your vehicle's engine management computer can direct fuel injectors, radiator fans, and starter motors without ever handling that heavy current directly — a design that improves reliability, safety, and longevity across the entire electrical system.

Why Relay Control Modules Matter

As vehicles have become increasingly dependent on microprocessors and electronic control units, the relay control module has grown in importance. A failing relay can trigger symptoms ranging from intermittent stalls and no-start conditions to OBD-II trouble codes that point toward fuel, fan, or ignition circuit faults. Because relays are designed to handle roughly 100,000 switching cycles before wear sets in, age, heat, and vibration all take their toll over time — making replacement a common part of electrical system maintenance.

When shopping for a replacement relay control module, it's important to match the correct voltage and current ratings for your specific application. Using a relay with the wrong specifications can cause voltage spikes that damage surrounding components. Also consider contact configuration (normally open vs. normally closed), physical dimensions, and whether your application calls for a traditional electromechanical relay or a solid-state design, which offers faster switching and greater resistance to shock and vibration.

Top Brands in Relay Control Modules

Functional Devices is a specialized manufacturer known for building relay control modules engineered for demanding control applications, particularly in HVAC and building automation environments — making their modules a popular choice wherever precision switching and long-term reliability are required.

Cardone is a trusted name in remanufactured and new OE-quality automotive control modules. Their relay control modules are engineered to meet or exceed original equipment specifications, making them a go-to solution for direct-fit OEM replacement.

MSD brings its performance ignition expertise to the relay control module segment, offering solutions designed for high-demand engine management and performance applications where reliable switching is non-negotiable.

Oracle Lighting offers relay control modules as part of their broader advanced lighting ecosystem, providing the switching infrastructure needed to properly power and protect aftermarket LED and specialty lighting systems.

Diode Dynamics rounds out the category with precision-engineered relay modules tailored for modern LED lighting upgrades, ensuring clean, reliable circuit control that protects both the lighting hardware and the vehicle's OEM wiring.
