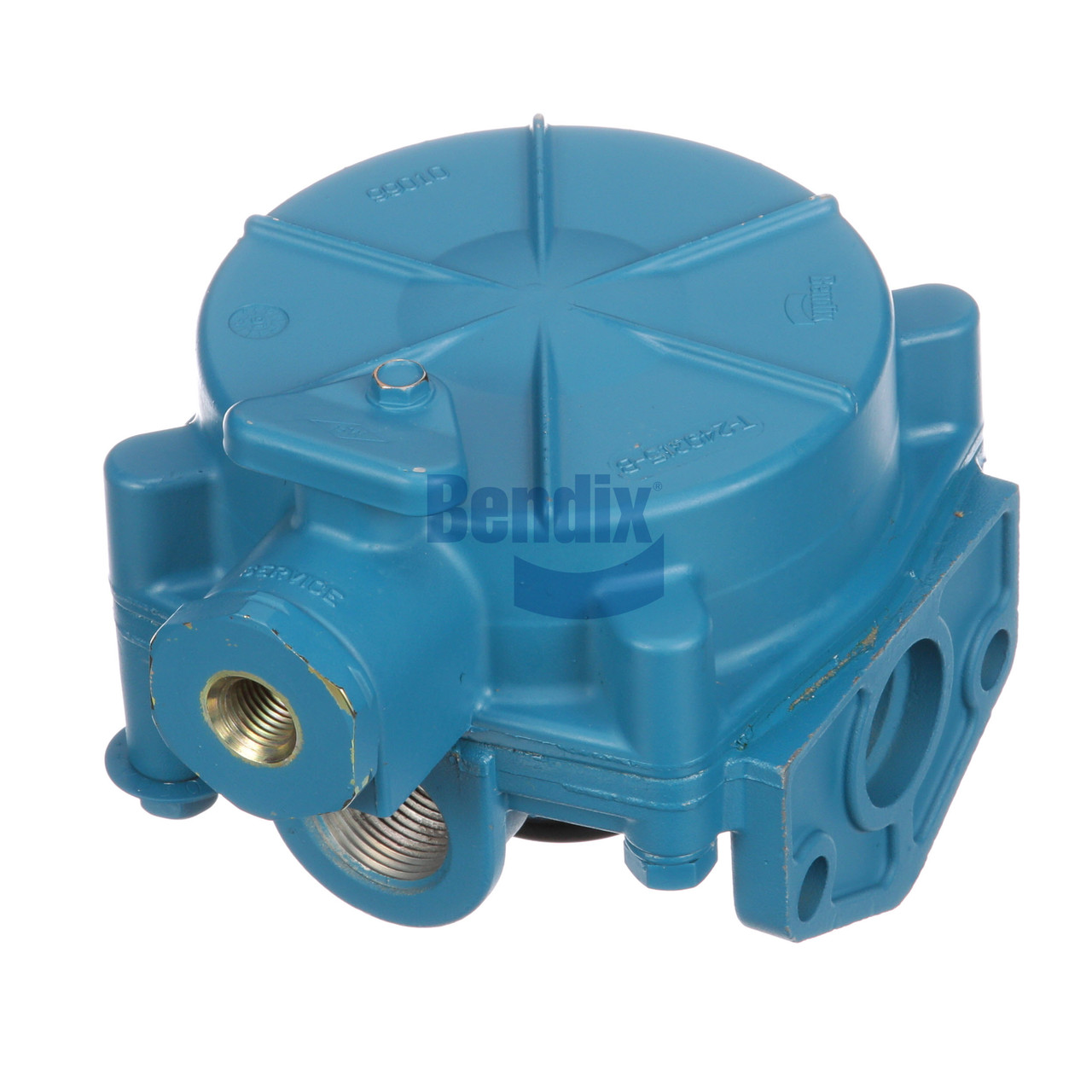

Bendix Brakes OR286370X R-8 Relay Valve Remanufactured Coreless

The Bendix OR286370X is a remanufactured R-8 relay valve designed for heavy-duty commercial vehicle air brake systems. As part of Bendix's innovative Coreless Valve program, this genuine Bendix remanufactured valve does not require the return of the old valve core, eliminating core exchange hassles while maintaining OEM quality and specifications.

Key Features:

• Air-operated, graduating control valve with high capacity and fast response
• Incorporates an integral double check valve with balance port connection for anti-compounding or quick exhaust functionality
• Standard flange mount design with 0.41-inch diameter mounting holes (2x)
• Service port oriented at 90 degrees from mounting flange for flexible installation
• Inlet/exhaust valve cartridge can be replaced without line removal for easy servicing
• Includes universal mounting bracket for easy interchange with other Bendix relay valves
• Crack pressure: 3.0 PSI for consistent performance
• Operating temperature range: -40°F to 200°F (-40°C to 93°C)

Specifications:

• Supply Port: 1 x 3/4-14 NPT
• Delivery Port: 3 x 1/4-18 NPT
• Exhaust Port: Dust shield included
• TMC Washer: RV030
• Weight: 3.09 lbs

Relay valves are primarily used on long wheelbase trucks, tractors, buses, and commercial vehicles to apply and release rear axle service or parking brakes. They graduate, hold, or release air pressure from brake chambers upon signal pressure from the service brake valve. The R-8 design is ideal for applications requiring spring-actuated parking brake control with anti-compounding features.

This valve replaces OEM part numbers 286370N, 286370RX, and Meritor R955286370N. Manufactured to meet or exceed original equipment specifications in form, fit, and function.
