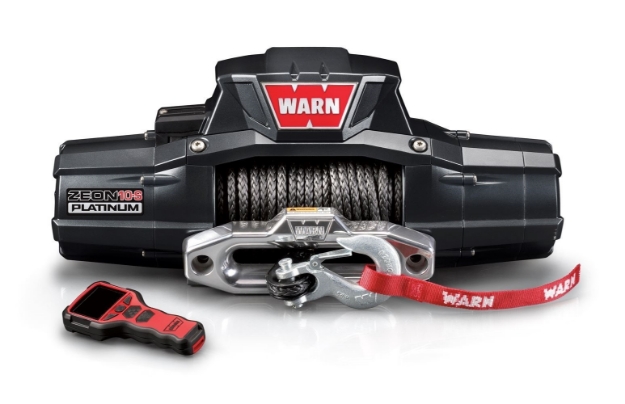

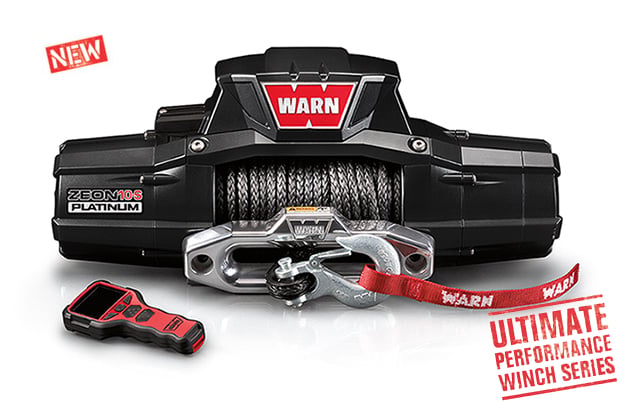

Warn 92815 ZEON 10-S Platinum Electric Winch 10000 lb Synthetic Rope Wireless Remote

The Warn ZEON 10-S Platinum represents the pinnacle of electric winch technology for trucks, Jeeps, and SUVs. This 12-volt electric winch is vehicle mounted and has a pull capacity of 10,000 pounds, making it ideal for serious off-road recovery situations.

Advanced Wireless Remote Control:

The Advanced Wireless Remote controls not only the winch, but also the clutch and other accessories, providing operator feedback on vehicle battery charge and winch motor temperature. The Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote, controlling winch-in, winch-out, and freespool operations with the manual clutch eliminated.

Key Features:

• Comes with 100' of 3/8" (30m of 9.52mm) Spydura synthetic rope with a matte aluminum hawse fairlead
• All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed
• Extreme waterproofing meets rigorous IP68 standards--the highest rating in the WARN Truck/SUV winch lineup
• Provides additional control of two 12-volt accessories, which can plug directly into the winch (requires Warn 93375 or 93373 harness kit)
• Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance
• Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor
• Automatic mechanical cone brake offers excellent control while winching
• 162:1 planetary gear reduction ratio with series wound motor
• 5.6 ft. per minute line speed with 465 amp draw at 10,000 lbs

Technical Specifications:

• Rated Line Pull: 10,000 lbs single-line
• Motor: 12V series wound
• Rope: 3/8" diameter x 100 ft Spydura synthetic
• Fairlead: Matte aluminum hawse type
• Remote: Advanced Wireless with LCD display
• Mounting Pattern: 10" x 4.5"
• Accessory Ports: Two 16 amp outputs

What's Included:

• ZEON 10-S Platinum winch with synthetic rope
• Advanced Wireless Remote
• USB charging cable and car charger adapter
• Matte aluminum hawse fairlead
• Mounting hardware

Warranty: Limited Lifetime Warranty for Mechanical Components and Limited Seven (7) year warranty for Electrical Components.

The convertible control pack can be attached directly to the winch or remotely mounted for various installation options. This winch requires a compatible winch-ready bumper or mounting plate for installation.
