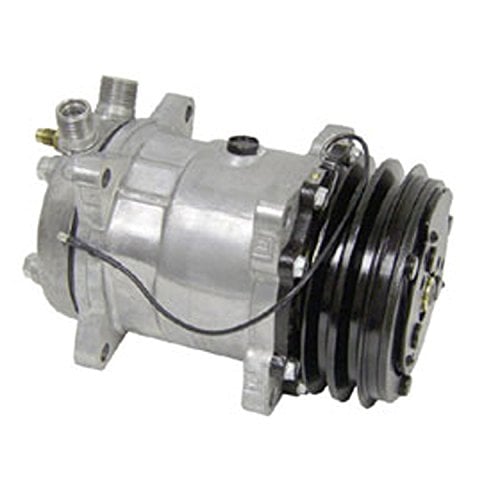

Universal Air Conditioner CO9285C Sanden SD508 Style A/C Compressor

The Universal Air Conditioner CO9285C is a Sanden SD508 style air conditioning compressor designed to deliver reliable cooling performance for automotive applications. This compressor serves as the heart of your vehicle's A/C system, pumping refrigerant throughout the climate control system to maintain comfortable cabin temperatures.

Key Specifications:

• Compressor Family: Sanden SD508 style
• Cylinder Head: FG type with vertical port angle
• Clutch Diameter: 132mm (5.19 inches)
• Belt Type: 2-groove V-belt configuration
• Mount Type: Ear mount (8 bolt pattern)
• Voltage: 12V electrical system
• Rotation: Clockwise (CW) direction
• Refrigerant: Compatible with R12 and R134a
• Oil Capacity: 175cc pre-filled
• Thread Size: 3/4" x 7/8" port fittings
• Displacement: 131cc (9.8 cubic inches)

Quality Construction:

Universal Air Conditioner compressors are engineered to meet or exceed OEM specifications and are manufactured at Tier 1 facilities. Each compressor undergoes rigorous quality control to ensure optimal performance and durability. The unit comes with replacement O-rings and is pre-filled with the appropriate amount of compressor oil for installation convenience.

What's Included:

• Complete compressor assembly with clutch
• 132mm 2-groove pulley installed
• Replacement O-ring seals
• Pre-filled compressor oil (175cc)

This compressor is designed for direct OE replacement applications, offering a precise fit and straightforward installation process. Professional installation is recommended, and the receiver drier or accumulator should always be replaced when installing a new compressor to maintain warranty coverage and system performance.
