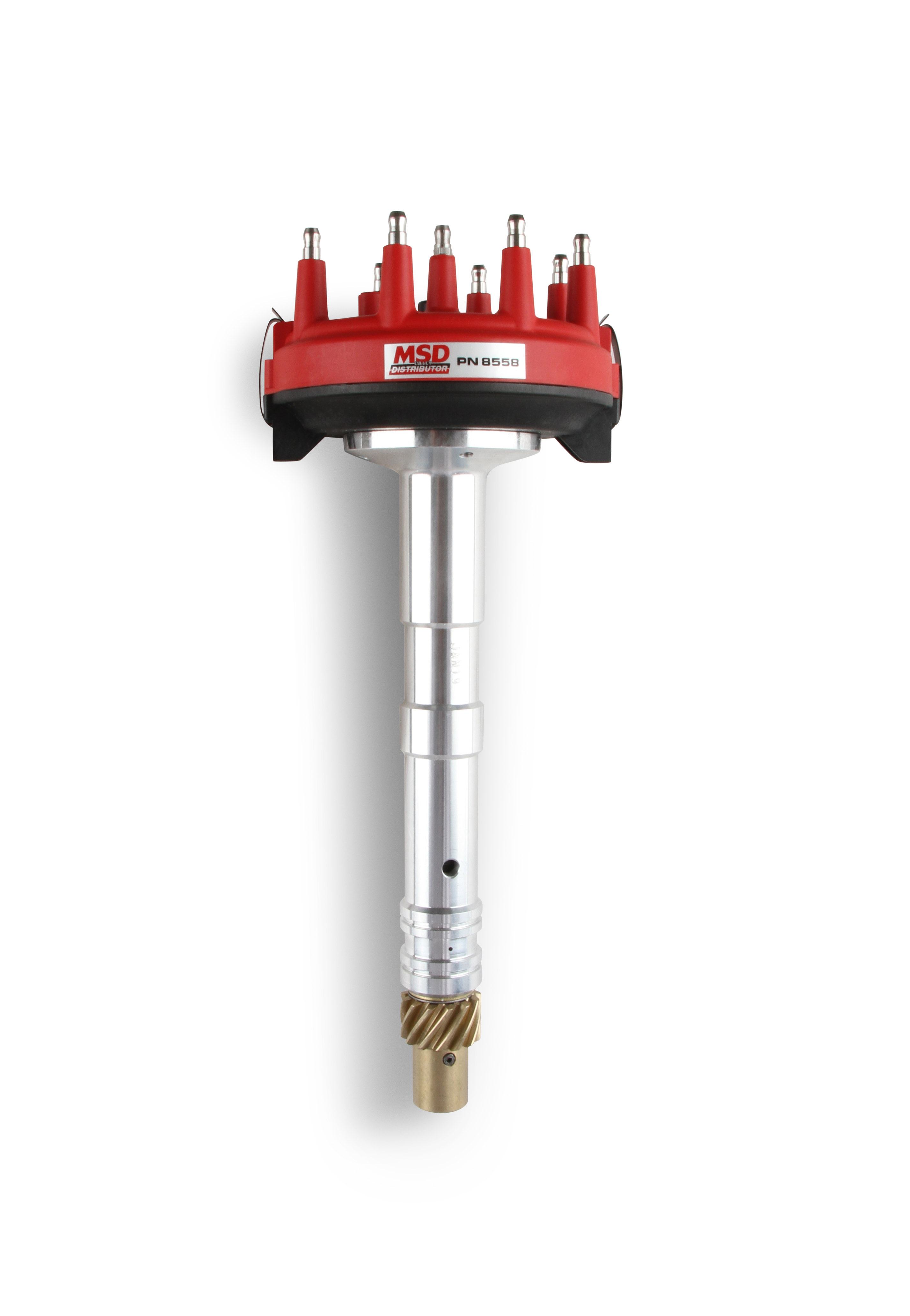

MSD 8558 Tall Block Crank Trigger Chevy V8 Distributor

The MSD 8558 is a purpose-built distributor designed for tall block Chevrolet V8 engines running an MSD Crank Trigger ignition system. Engineered for high-performance and racing applications, this distributor eliminates mechanical timing advance mechanisms, allowing the MSD Ignition Control to manage all timing functions with precision.

Key Features:

• Bronze gear included for reliable cam gear engagement and longevity
• CNC machined billet aluminum housing with a DuPont Rynite base for strength and heat resistance
• Oversized polished steel shaft with QPQ (Quench-Polish-Quench) coating for reduced friction and extended wear life
• Sealed ball bearing and extra-long sintered bushing guide the shaft for precise, stable rotation

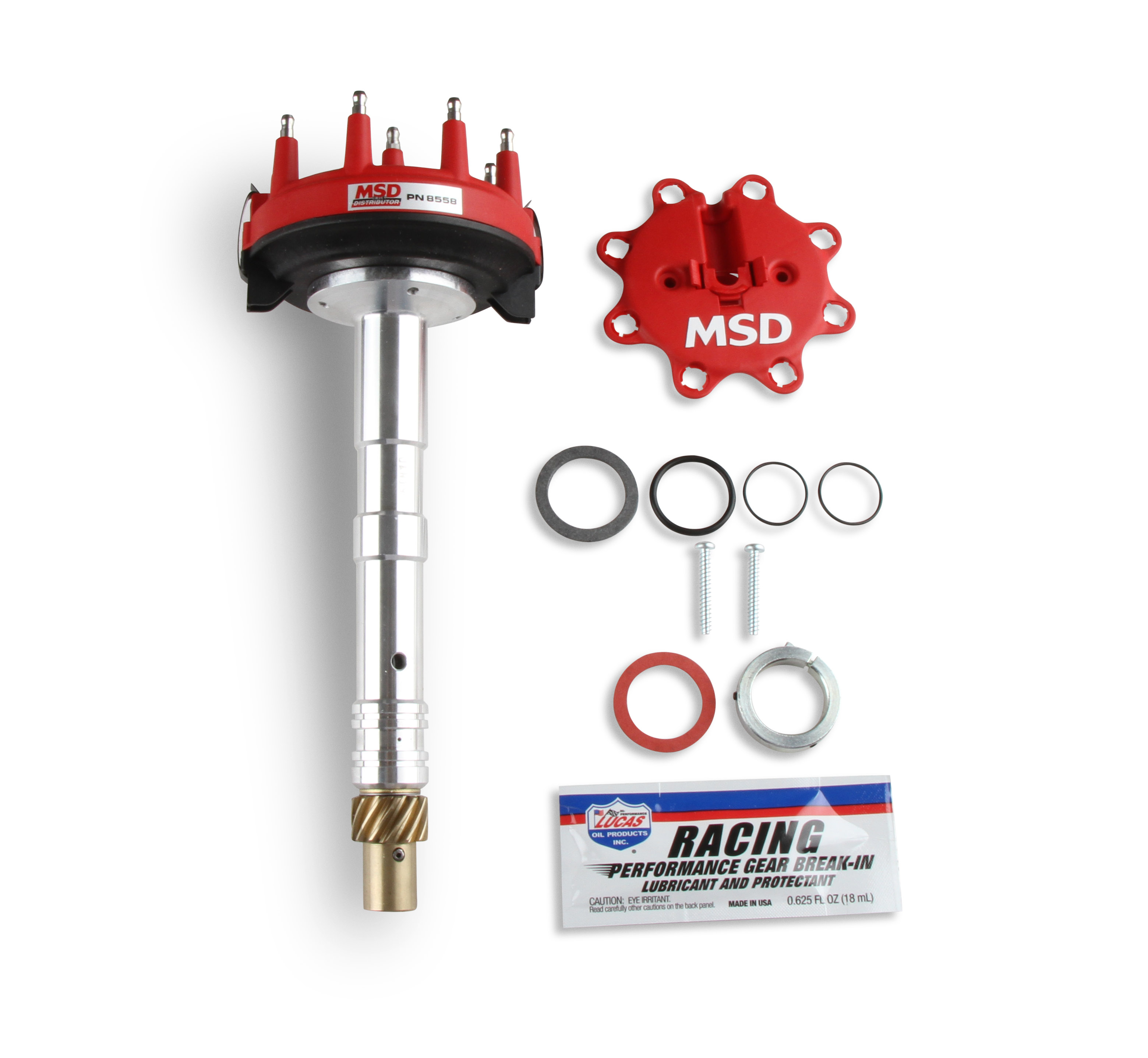

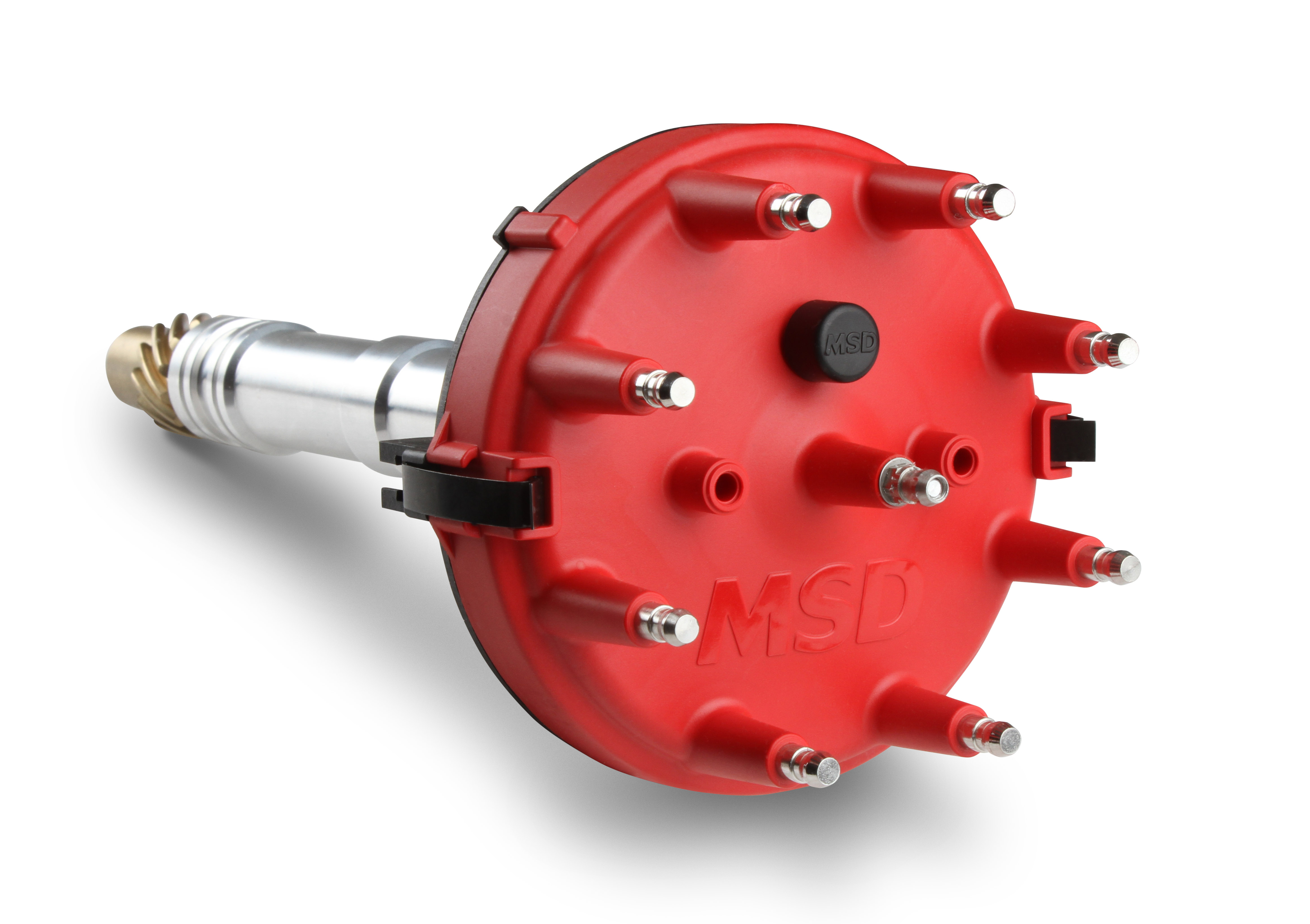

• Large diameter HEI-style distributor cap and rotor included for improved spark distribution and reliability
• Special internal oil tract enhances lubrication to both the distributor and cam gear
• Low-profile design fits deep in the block to clear firewall and intake manifold combinations
• Adjustable slip collar mounting flange accommodates engines with modified deck heights
• O-ring seals can be added to modified blocks for improved oil pressure control

Important: This distributor must be used in conjunction with an MSD Crank Trigger system and an MSD Ignition Control unit. It is not compatible with standard distributor-based ignition setups. Ideal for race engines with custom or modified block configurations where clearance and precision timing are critical.
