S&S Cycle 106-0874 Super E Complete Carburetor Kit with Manifold and Air Cleaner

The S&S Cycle Super 'E' Complete Carburetor Kit (106-0874) is a comprehensive, bolt-on carburetor upgrade kit designed for carbureted Twin Cam Big Twin engines. Purpose-built and made in the U.S.A., this kit delivers everything needed for a complete installation right out of the box — no hunting for additional parts required.

The Super E's 1-7/8" (47.6mm) bore generates higher air velocity compared to larger-bore carburetors, translating directly into stronger low-end and mid-range throttle response and power. This makes it the ideal choice for engines up to 100 cubic inches in displacement. For riders who are unsure whether to choose a Super E or Super G, the Super E is the recommended standard — especially for engines in the 90–100 cu. in. range where low and mid-range performance matters most.

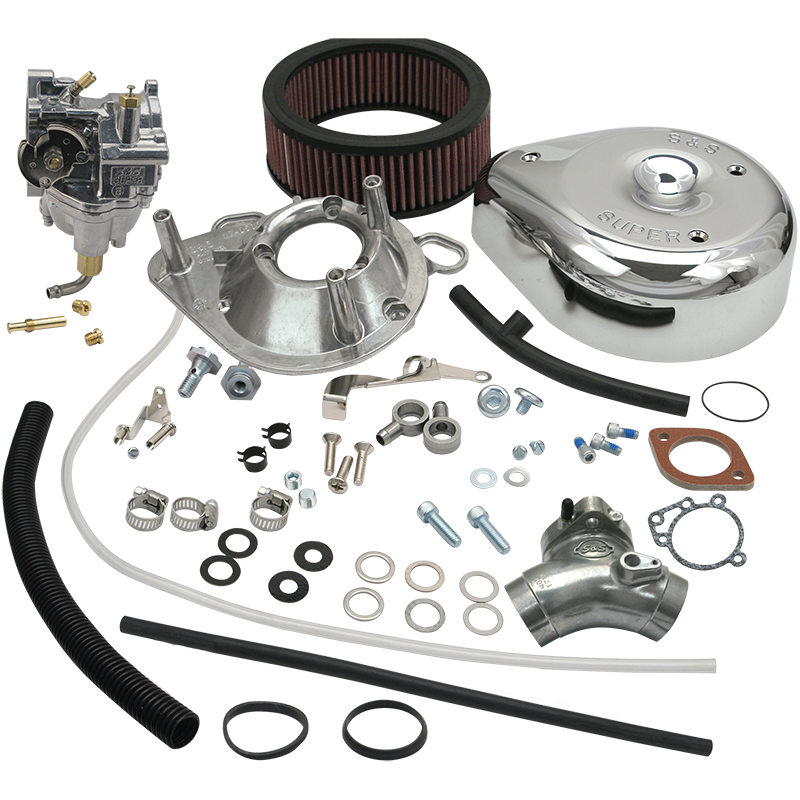

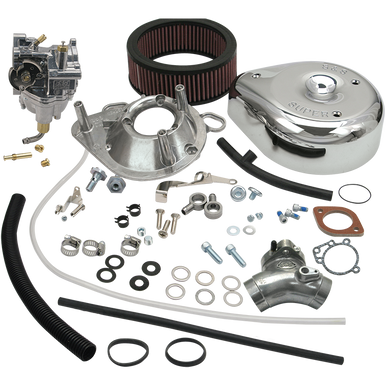

Kit Includes:

• S&S Super E gasoline carburetor with updated fuel delivery ports and idle screw
• S&S teardrop air cleaner assembly
• Intake manifold (for engines with stock-length cylinders)
• Mounting hardware
• Fuel line, clamps, and overflow line
• One extra intermediate jet and two main jets
• VOES tubing (when applicable)
• Detailed installation and jetting instructions

Key Specifications:

• Bore / Throat at butterfly: 1-7/8" (47.6mm)
• Venturi: 1-9/16" (39.7mm)
• Four fuel delivery ports for enhanced throttle response
• O-ring sealed idle mixture screw
• Accepts stock late-model throttle cables on Big Twin models
• Requires two-cable, pull-open/pull-close throttle assembly
• Recommended for engines up to 100 cu. in. displacement
• Note: For engines with longer-stroke cylinders, a custom intake manifold may be required
• Made in the U.S.A.

Emissions Notice: This carburetor is not legal for use in California on motor vehicles operated on public highways, or in other states where similar emissions laws apply.
