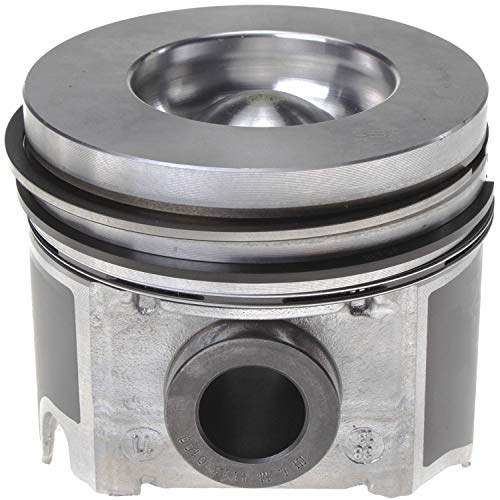

MAHLE 224-3503 Clevite Piston Set 6.0L Powerstroke Diesel Standard Bore

(Ford F-250 Super Duty 2004-07, F-350 Super Duty 2004-07, Excursion 2003-05, E-350 Super Duty 2004-10, F-450 Super Duty 2004-07 + 4 more models)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3503
12 reviews
Sale Price

$49.00

In Stock (8)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

MAHLE 224-3503 Clevite Engine Piston Set is an OE-quality piston kit designed for Ford 6.0L Powerstroke and Navistar diesel V8 engines. This standard compression piston set features a 3.74-inch bore diameter and is engineered to deliver reliable performance in heavy-duty diesel applications.

Key Features:

  • OE quality construction with compensated ring grooves for proper ring loading and oil control
  • Expansion controlled design for reduced engine noise, wear, and emissions
  • Standard compression design for stock replacement applications
  • Includes wrist pins and locks for complete installation
  • Set of 8 pistons for complete V8 rebuild

MAHLE pistons are manufactured to the same exacting standards as original equipment, featuring advanced metallurgy and precision machining. The compensated ring groove design ensures optimal ring sealing and oil control throughout the engine's service life, while the expansion controlled design allows for tighter fitting clearances that reduce piston slap and improve overall engine efficiency.

Products specifications

Fits

Ford F-250 Super Duty 2004-07, F-350 Super Duty 2004-07, Excursion 2003-05, E-350 Super Duty 2004-10, F-450 Super Duty 2004-07, F-550 Super Duty 2004-07, E-450 Super Duty 2004-10, E-350 Club Wagon 2004-05; Mitsubishi Montero Sport 1999-2004

Piston Material

Aluminum

Piston Head Type

Flat Top

Compression Distance (in)

2.059

Bore Diameter (mm)

95.00

Bore Diameter (in)

3.736

Compression Distance (mm)

52.29

Measure Skirt Clearance At

0.579in from the bottom of skirt

Piston Casting Number

95L102A1

Piston Length (mm)

85.82

Piston Note

Keystone top ring. Coated skirts.

Piston Pin Diameter (in)

1.3386

Piston Pin Diameter (mm)

34

Piston Pin Hole Location

Center

Piston Pin Retention Type

Floating

Piston Recess Depth (in)

0.665

Piston Recess Diameter (in)

2.0905

With Piston Rings

No

Amount Oversized

Standard

Compression Height (in)

Standard

Piston Item Grade

OE Replacement

Piston Recess Volume

31.89

Piston Skirt Clearance (in)

0.0036

Coated Skirt

Yes

Piston Pin Outside Diameter

34.01

Piston Head Type

Bowl

Piston Material

Aluminium

Oil Ring Thickness

3.44

Oversized

No

Second Compression Ring Thickness

2.00

Top Compression Ring Thickness

2.30
