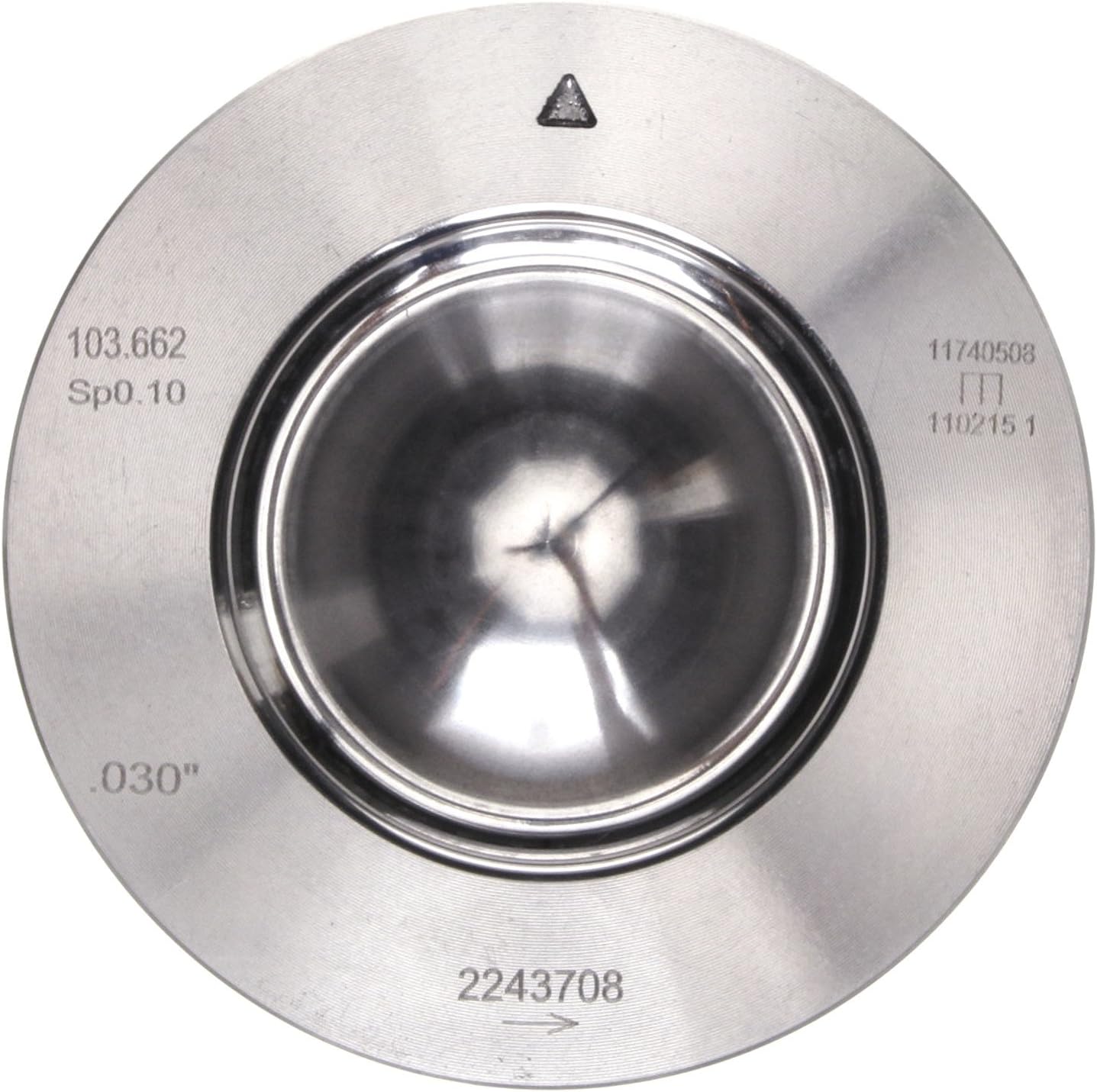

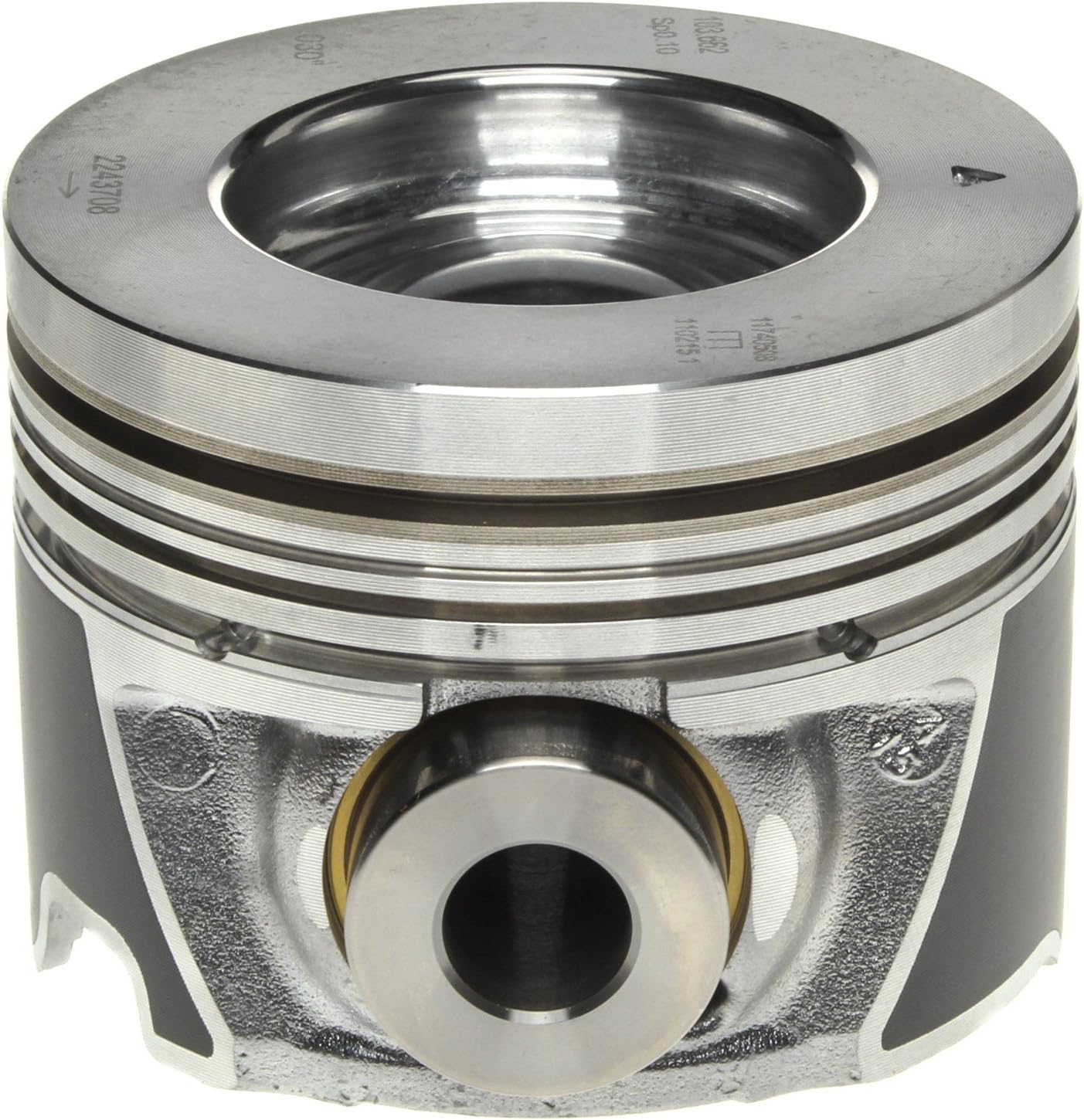

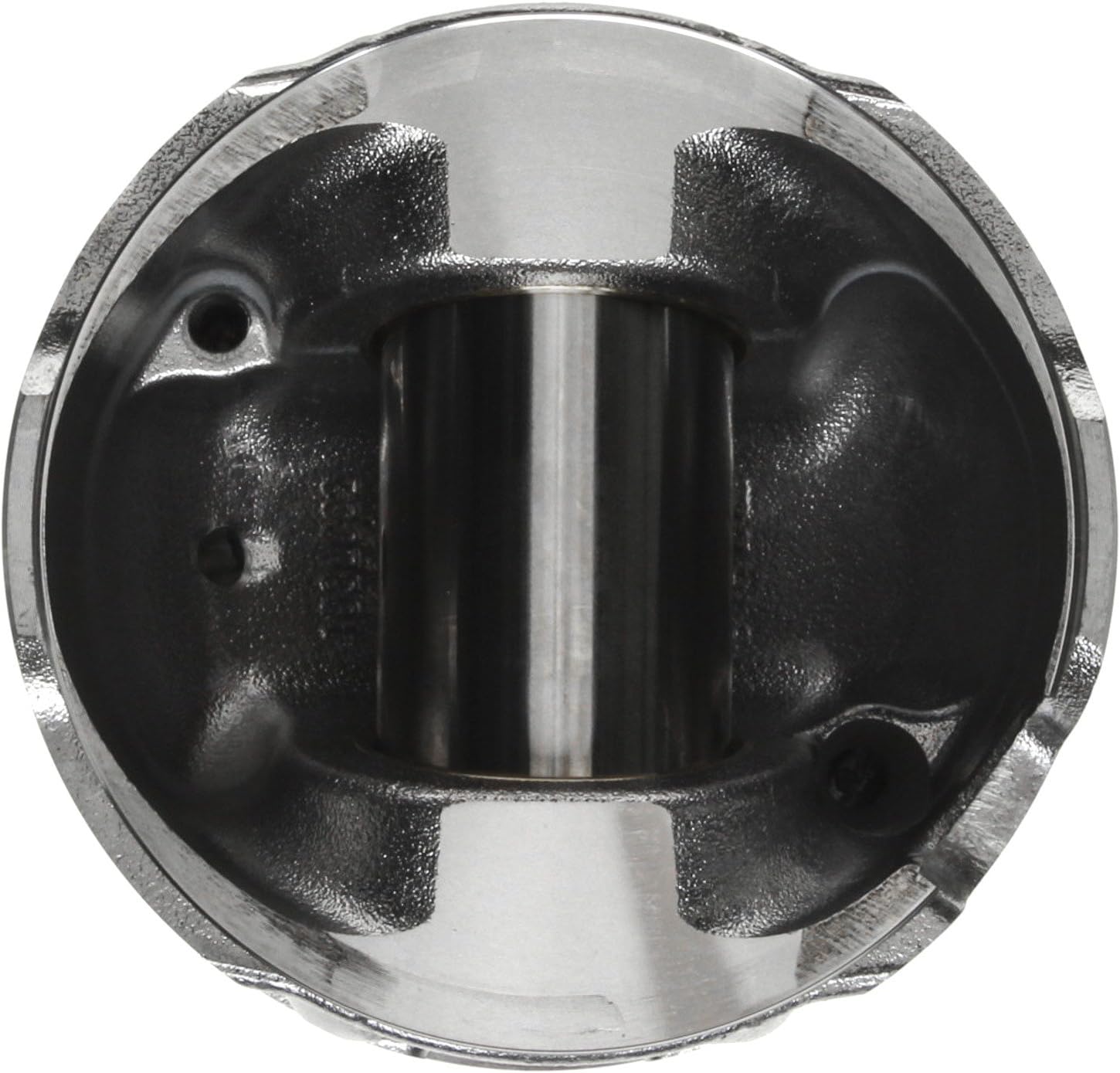

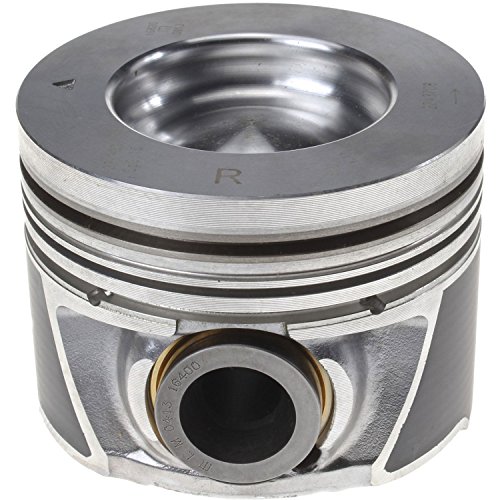

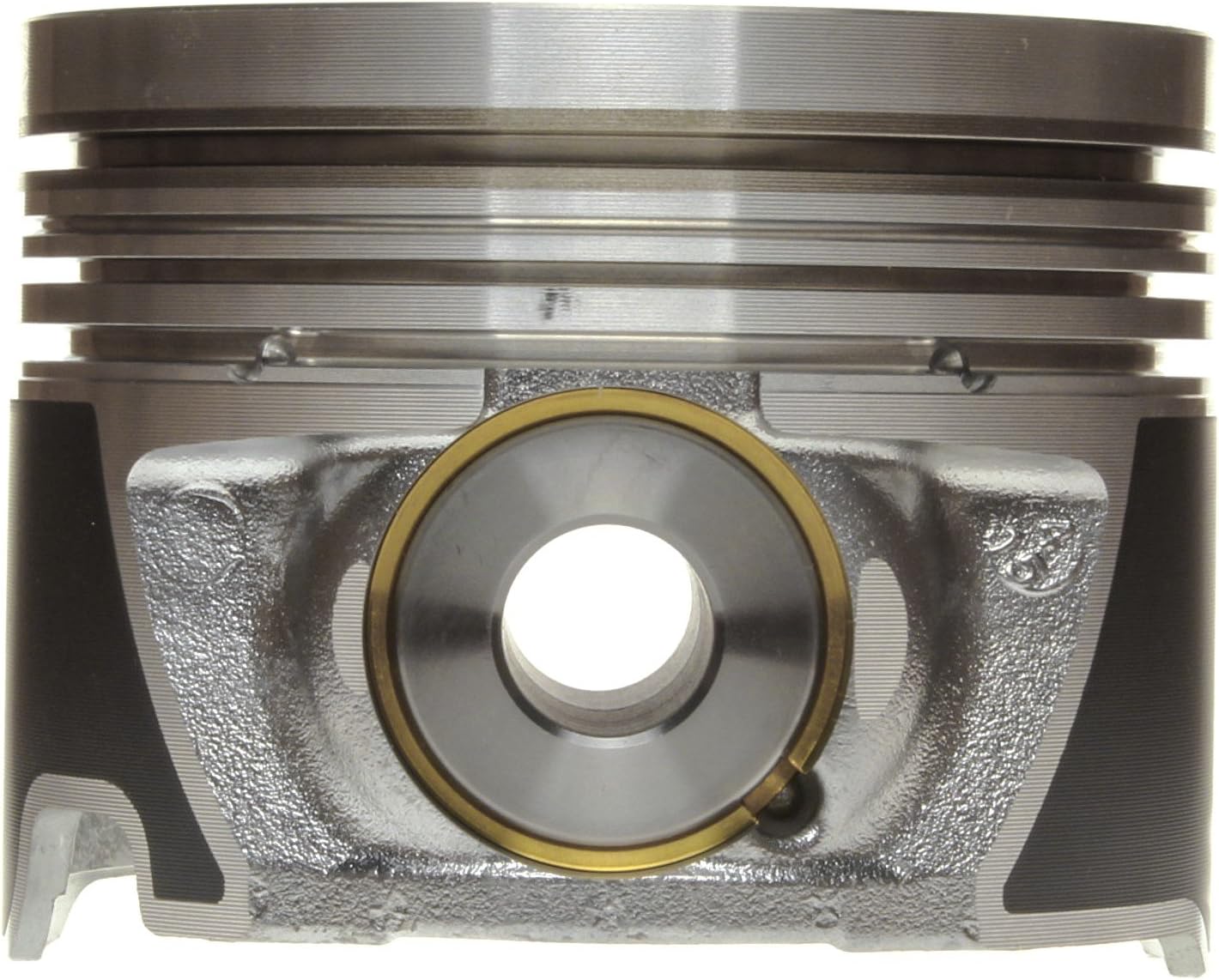

MAHLE 224-3708 Engine Piston Set with Rings, Pins and Clips

(Chevrolet Silverado 2500 HD 2006-10, Silverado 3500 HD 2007-10, Express 3500 2006-10, Express 2500 2006-10, Silverado 3500 2006-07 + 12 more models)

Manufacturer

Picture for manufacturer MAHLE

Part Number

224-3708
11 reviews
Sale Price

$125.96

Estimated ship date Friday, November 20

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3708 Engine Piston Set delivers OE-quality performance and reliability for your engine rebuild. As one of the world's largest original equipment piston manufacturers, MAHLE produces pistons with the same premium features found in factory engines.

Key Features:

  • Compensated ring grooves ensure proper ring loading and superior oil control
  • Expansion-controlled design allows tighter fitting clearances for reduced engine noise
  • Precision engineering minimizes wear and emissions

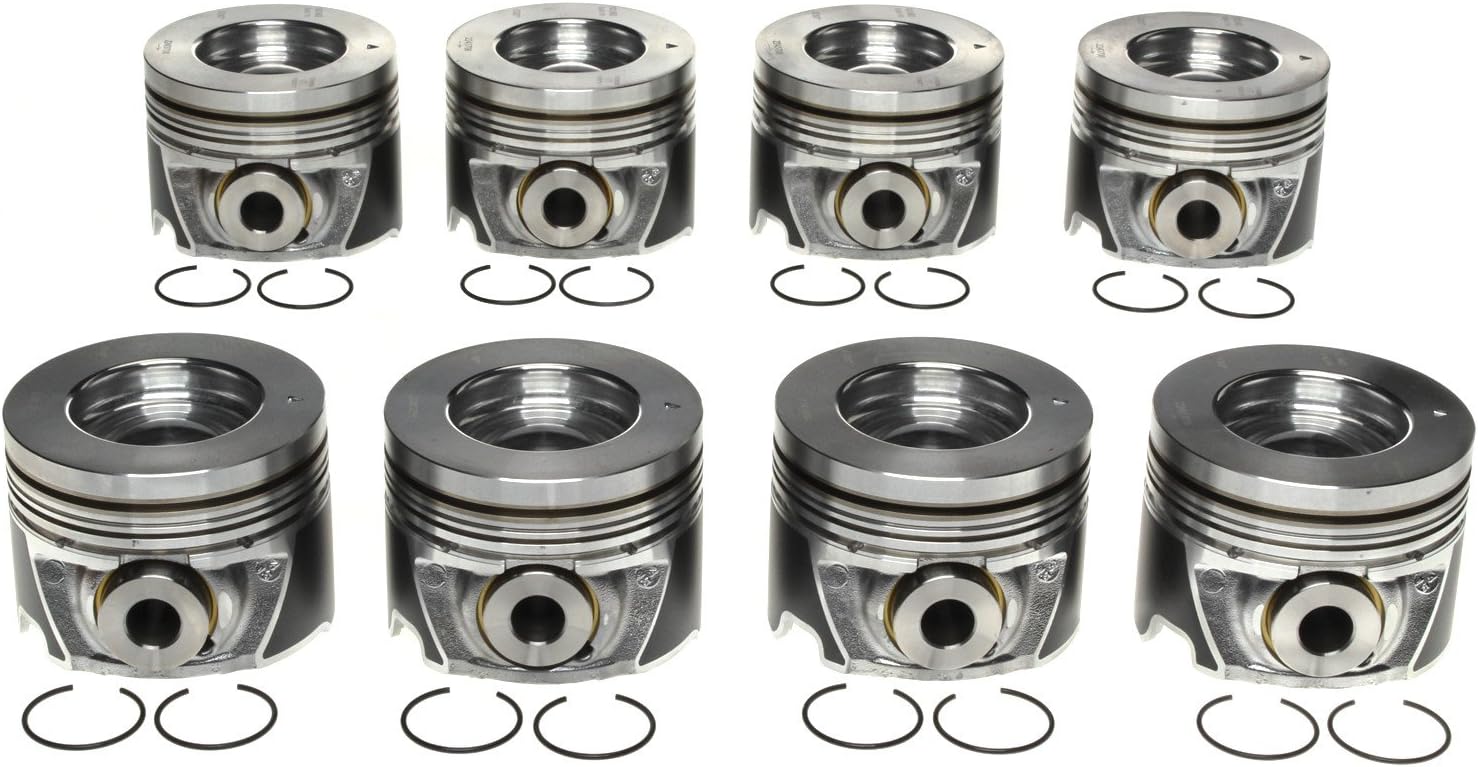

  • Complete installation kit includes pre-mounted piston rings, wrist pins, and retaining clips
  • OE-specification construction for reliable performance and longevity

This ready-to-install piston set simplifies the engine building process by arriving with all necessary components pre-assembled. The advanced design reduces piston slap and improves overall engine efficiency while maintaining optimal oil control throughout the engine's operating range.

Products specifications

Fits

Chevrolet Silverado 2500 HD 2006-10, Silverado 3500 HD 2007-10, Express 3500 2006-10, Express 2500 2006-10, Silverado 3500 2006-07, Silverado 2500 HD Classic 2007, Silverado 3500 Classic 2007, Express 4500 2009-10 + 9 more models

Piston Material

Aluminum

Piston Head Type

Flat Top

Piston Pin Hole Location

Offset

Compression Distance (in)

1.961

Bore Diameter (mm)

103.0

Bore Diameter (in)

4.055

Compression Distance (mm)

49.8

Measure Skirt Clearance At

0.551in from the bottom of skirt

Piston Length (mm)

79.8

Piston Pin Diameter (in)

1.3386

Piston Pin Diameter (mm)

34.5

Piston Pin Retention Type

Floating

Piston Recess Depth (in)

0.6142

Piston Recess Diameter (in)

2.5472

With Piston Rings

No

Amount Oversized

Standard

Compression Height (in)

Standard

Piston Item Grade

OE Replacement

Piston Length (in)

3.1417

Piston Recess Depth (mm)

15.6

Piston Recess Diameter (mm)

64.7

Piston Skirt Clearance (mm)

0.0991

Piston Skirt Clearance (in)

0.0039

Oil Ring Thickness

3.00

Piston Pin Outside Diameter

34.50

Oversized

No

Second Compression Ring Thickness

2.00

Piston Head Type

Bowl

Piston Material

Aluminium

Top Compression Ring Thickness

3.00
