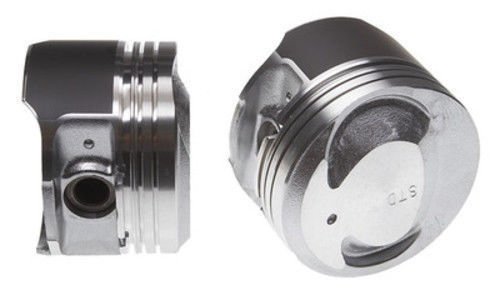

MAHLE 224-3429 Engine Piston Set with Rings, Pin, and Clips

(2000-2004 Ford Focus; 1997-2002 Ford Escort; 2012, 2014-2015 Honda Pilot LX; 2013 Honda Pilot Touring; 1997-1999 Mercury Tracer)

Manufacturer

Part Number

224-3429
Black Friday Price

$39.21

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 224-3429 Engine Piston Set delivers OE-level quality and precision engineering for reliable engine rebuilds and replacements. As one of the world's largest OE piston manufacturers, MAHLE brings the same exacting standards found in original equipment applications directly to the aftermarket.

Key Features:

  • Compensated Ring Grooves: Engineered to ensure proper ring loading and consistent oil control throughout the piston's service life
  • Expansion-Controlled Design: Precision-controlled thermal expansion allows for tighter fitting clearances, reducing engine noise, wear, and emissions while improving oil control
  • Ready-to-Install Kit: Each set includes mounted piston rings, wrist pin, and retaining clips for a complete, convenient installation
  • OE-Equivalent Quality: Manufactured to the same specifications and tolerances as original equipment pistons found in production vehicles
  • Reduced Emissions: Tight tolerances and optimized ring design contribute to lower blowby and improved combustion efficiency

MAHLE is a globally recognized leader in OE piston manufacturing, supplying major automotive and powersport manufacturers worldwide. The 224-3429 piston set is an ideal choice for engine builders seeking a drop-in, complete solution that meets or exceeds factory specifications.

Products specifications

Fits

2000-2004 Ford Focus; 1997-2002 Ford Escort; 2012, 2014-2015 Honda Pilot LX; 2013 Honda Pilot Touring; 1997-1999 Mercury Tracer

Piston Material

Hypereutectic

Compression Distance (in)

1.460

Bore Diameter (mm)

84.86

Bore Diameter (in)

3.341

Compression Distance (mm)

37.08

Measure Skirt Clearance At

.620in from the bottom of skirt

Piston Head Type

Dome

Piston Length (mm)

60.96

Piston Note

Shallow Ring Grooves, Coated Skirts

Piston Pin Diameter (in)

0.8120

Piston Pin Diameter (mm)

2.6248

Piston Valve Reliefs Quantity

2

Piston Dome Height (in)

.190

Piston Length (in)

2.4

Piston Skirt Clearance (in)

0.0016

Top Compression Ring Thickness

1.50

Second Compression Ring Thickness

1.50

Piston Pin Outside Diameter

0.812

Oil Ring Thickness

3.00

Oversized

No
